PCB Board 6 Layer Copper Thick 1 oz Copper Board

Name: PCB Board 6 Layer Copper Thick 1 oz Copper Board
Brand: all-electronics-online.com
SKU: 822783905
Availability: InStock
Rating: 4.8 (109 reviews)

Price:	US $ 2.53/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-229-V2.29
Outer Copper Foil:	1 Oz
Board Thickness:	1.6mm
Surface Treament:	HASL Lead Free
Solder Mask:	Green
Legend:	White
Electrical Test:	100% PCB Passed
Visual Inspection:	Ipc-a-600h&Ipc-6012c
Solderability Test:	245ºC 5s 1 Cycle
Min Line Width (Mil):	7.2 Mil
Min Line Spacing (Mil):	5.2 Mil
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

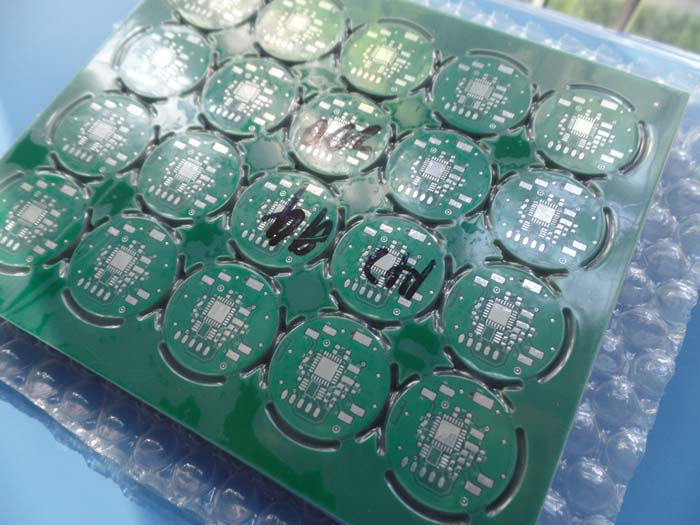

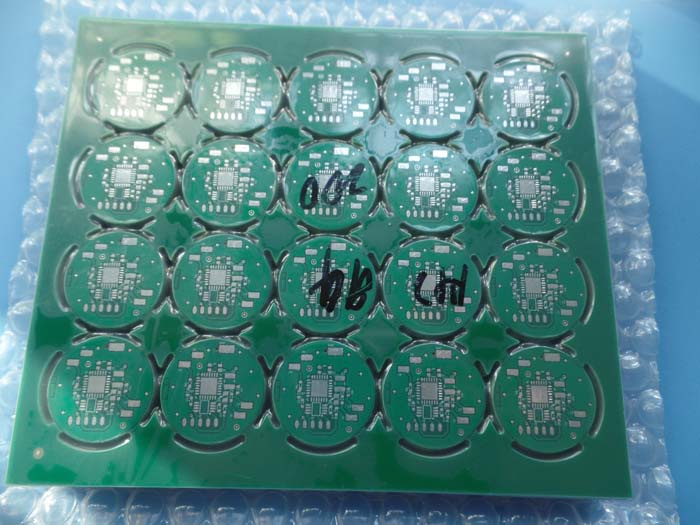

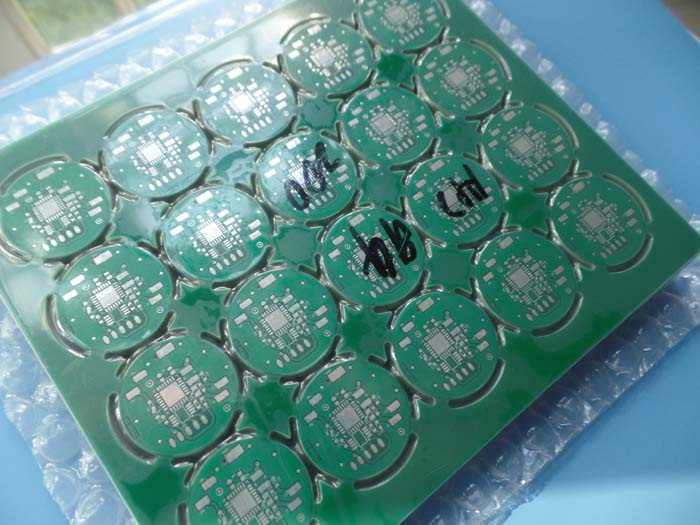

Prototype PCB 6 Layer Round PSR-2000GT600D Green Solder Mask and HASL PCB in Rf Switches

Commodity Introduction
This is a type of FR-4 PCB for the application of Rf Switches. It's a 6 layer board at 1.6mm thick.The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using
supplied Gerber data. Each 10 boards or panels are packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4 TG170	FR-4 TG170
	Supplier	ITEQ	ITEQ
	Board thickness	1.6+/-10%mm	1.52-1.55
	Outer copper foil	>=35 um	43.84
	Inner copper foil	1/1 OZ	1/1 OZ
	Warp-twist	<= 1%	0.09%
Legend	Type	IJR-4000 MW300	IJR-4000 MW300
	Color	White	White
	Location	CS	CS
Marking	Co.logo	YES	OK
	UL.logo	YES	OK
	Date code	WWYY	WWYY
	Marking form	NA	OK
	Location	CS	CS
Min line width (mil)		7	7.2
Min line spacing (mil)		5.4	5.2
Min ring width (mil)		NA	NA
Solder Mask	Type	PSR-2000GT 600D	PSR-2000GT 600D
	Color	Green	Green
	Thickness	>=10 um	13 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treament	HASL Lead free		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

Finished dimension (unit: mm): including v-cut

No	Required Dimension (tolerance)	Actual Dimension
1	248.60	248.47	248.56	248.71	248.57
2	109.86	109.81	109.91	109.97	109.97

Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)

No	Required	PTH	Actual Dimension
1	0.600	Y	0.600	0.575	0.625	0.600
2	0.850	Y	0.850	0.825	0.875	0.850
3	0.900	Y	0.900	0.875	0.925	0.900
4	1.320	Y	1.320	1.295	1.345	1.320
5	1.600	Y	1.600	1.575	1.625	1.600
6	2.540	Y	2.550	2.525	2.575.	2.550
7	3.500	N	3.500	3.500	3.525	3.500

Learn PCB and Buy PCB
PCB fabrication process
1). Etching
Purpose: Etching is to etch off the non-circuit parts of the copper layer by chemical reaction method

2). Solder Mask
Purpose: Solder mask is transferring the solder mask film graphics to the board to protect the track
and prevent the track from the effect of tin welding during assembly.

3). Silkscreen
Purpose: The silkscreen character is a mark that is easy to recognize.

4). Edge connector plating (Gold finger)
Purpose: A nickel gold layer with a thickness is plated on the PCB edge of the plug to make it more
resistant to wear.

HASL (a process of coordinate)
HASL is a layer of tin generated on the non-solder mask area to protect pad copper surface from oxidation
to ensure good welding performance.

5). Contour
Purpose: By stamping or milling machine to cut the PCB into customers' required shape.

6). Electrical test
Purpose: Through the electronic 100% test to find the open circuit, short circuit and other functional defects
which are not easy to find by visual inspection.

7). Final Inspection
Purpose: Through 100% visual inspection to find out the defects in appearance and repair minor defects to
avoid problems and defects in the shipment.
