PCB Board 0.6mm Thick 2layer Used Material RO4350b
| Price: |
US $ 0.81/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-113-V1.13 |
| Final Foil External: |
1oz |
| Final Height Of PCB: |
0.6mm ±0.1 |
| Surface Finish: |
Immersion Gold 0.025µm Over 3µm Nickel |
| Solder Mask Color: |
Gloss Green, Taiyo Psr-2000gt600d |
| Colour Of Component Legend: |
White |
| Test: |
100% Electrical Test Prior Shipment |
| Structure: |
Double-Sided Rigid PCB |
| Production Process: |
Subtractive Process |
| Dielectric: |
RO4350b 20mil (0.508mm), Tg 288 |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description

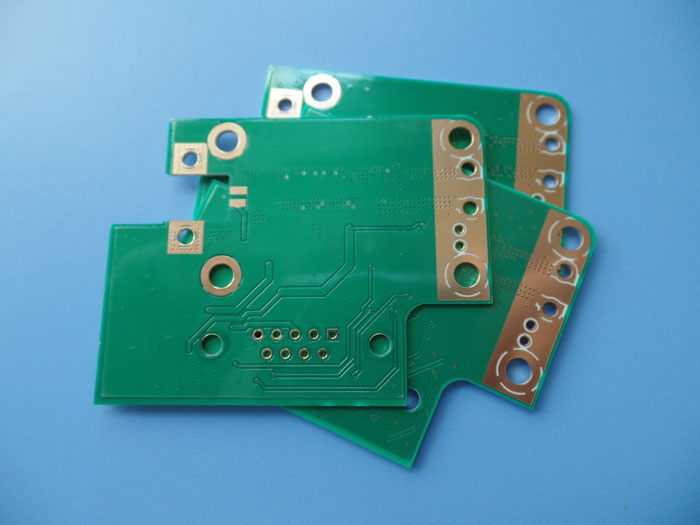

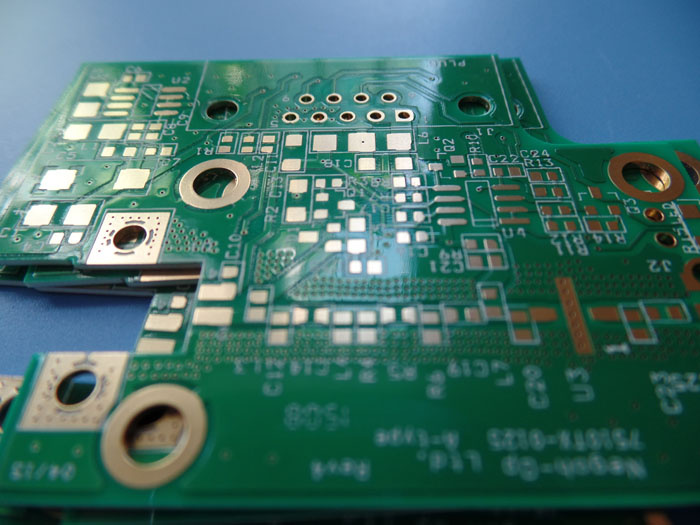

High Frequency PCB RO4350B 20mil(0.508mm) Bicheng PCB Supplier Immersion Gold
Applied In Interference Filter
Commodity Introduction
This is a type of RO4350B PCB for the application of Interference Filter. It's a 2 layer board
at 0.6mm thick. The base laminate is from ROGERS CORP, Solder mask and silkscreen
from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards
or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 55 x 59mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 17um(0.5oz)+plate TOP layer |
| RO4350B 20mil (0.508mm) |
| copper ------- 17um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 6mil/6mil |
| Minimum / Maximum Holes: | 0.3/2.5mm |
| Number of Different Holes: | 7 |
| Number of Drill Holes: | 75 |
| Number of Milled Slots: | 1 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B 20mil (0.508mm), Tg 288ºC |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.6mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold 0.025µm over 3µm Nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated through hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Interference filter, White Led Lights
Current Converter
Data Acquisition System
Remote Server
Modem 3G Wifi |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
