| Prod Model: |
BIC-635-V6.35 |
| Board Thick: |
1.6mm |
| Surface Finish: |
Lead Free HASL |
| Out Layer Copper: |
43.31 Um |
| Soldermask Color: |
No Required |
| Silkscreen Color: |
No Required |
| Warp-Twist: |
0.08% |
| Forming: |
V-Cut |
| Test: |
100% Electrical Test |
| Visual Inspection: |
Ipc-6012c |
| Solderability Test: |
245ºC 5s 1 Cycle |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Company Profile
You're benefit from following 5 types of 2 layer PCB's from Bicheng Enterprise Limited.
(1) FR-4 material (The most common used today)
Normal TG, High TG 170, High CTI 600V
Material (CCL) Brand: ITEQ, SHENGYI, KB
(2) High frequency material
RO4350B, RO4003C
PTFE (F4B series from China Brand)
(3) Insulated Metal Substrate (IMS) PCB, typical stack-up as follows
L1---Copper conductor
PP---dielectric material
L2---copper conductor
PP---dielectric material
AL---aluminum base
(4) Metal core PCB (MCPCB), typical stack-up as follows
L1---copper conductor
PP---dielectric material
AL---aluminum core
PP---dielectric material
L2---copper conductor
(5)Polyimide material (Flexible PCB)

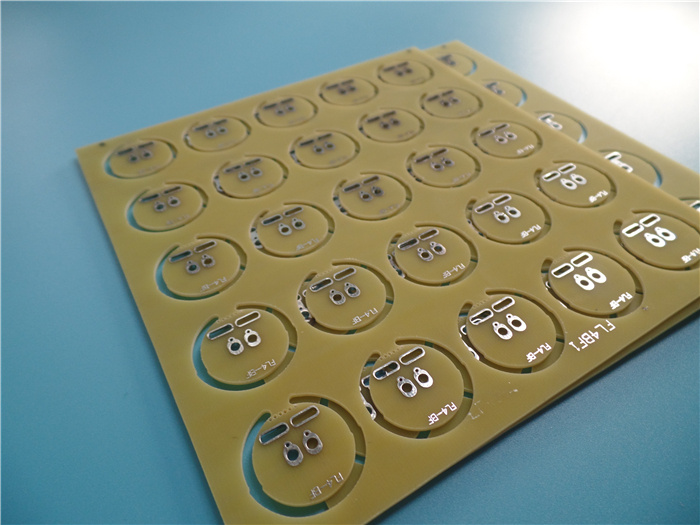

Printed Circuit Board

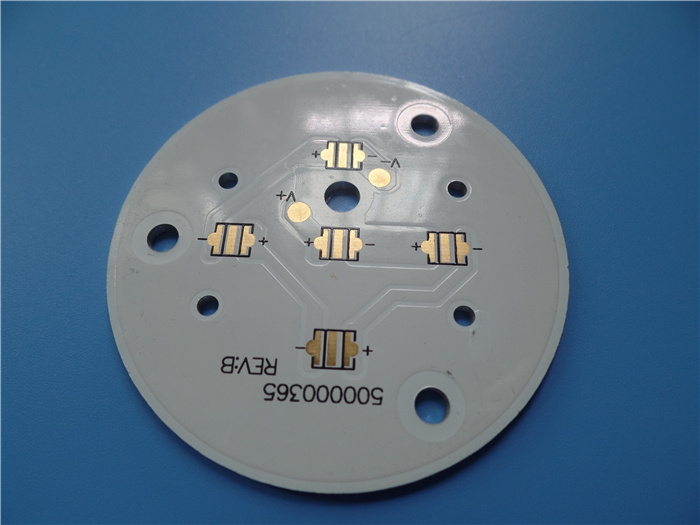

Aluminum PCB

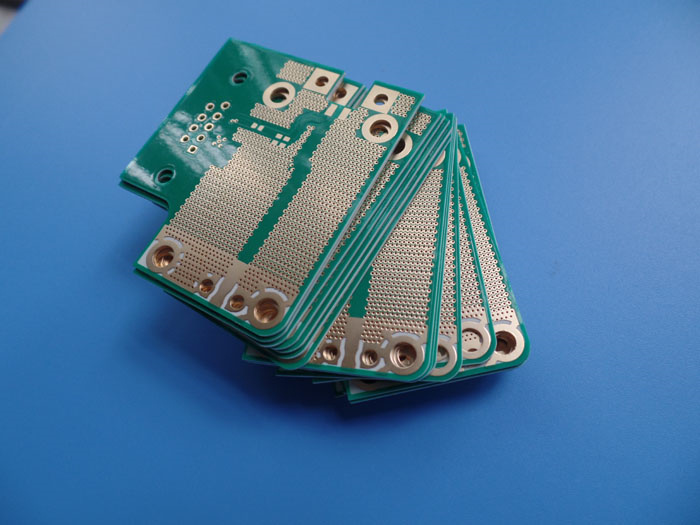

High Frequency PCB

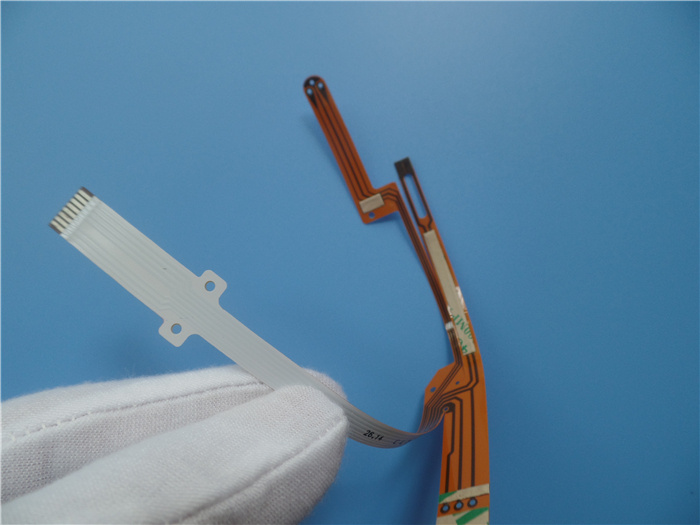

Flex PCB
Technology InformationITEQ Laminate/ Prepreg : IT-180ATC / IT-180ABS
IPC-4101C Spec / 99 / 101 / 126
LAMINATE( IT-180ATC)
| Property | Thickness
<0.50 mm | Thickness
>=0.50 mm | Units | Test
Method |
| [0.0197 in] | [0.0197 in] |
Typical
Value | Spec | Typical
Value | Spec | Metric | IPC-
TM-650 |
| (English) | (or as
noted) |
Peel Strength,
minimum | | | | | N/mm | 2.4.8 |
A. Low profile copper foil and very low profile
copper foil - all copper
weights > 17mm [0.669
mil] | | | | | (lb/inch) | 2.4.8.2 |
B. Standard profile
copper foil | 0.88 (5.0) | 0.70 (4.00) | 0.88 (5.0) | 0.70 (4.00) | | 2.4.8.3 |
1. After Thermal
Stress | | | | | | |
| 2. At 125°C [257 F] | | | | | | |
3. After Process
Solutions | 1.23 (7.0) | 0.80 (4.57) | 1.40 (8.0) | 1.05 (6.00) | | |
| | 1.05 (6.0) | 0.70 (4.00) | 1.23 (7.0) | 0.70 (4.00) | | |
| | 1.05 (6.0) | 0.55 (3.14) | 1.23 (7.0) | 0.80 (4.57) | | |
Volume Resistivity,
minimum | | | | | MW-cm | 2.5.17.1 |
| A. C-96/35/90 | 3.0x1010 | 106 | -- | -- |
B. After moisture
resistance | -- | -- | 3.0x1010 | 104 |
C. At elevated
temperature E-
24/125 | 5.0x1010 | 103 | 1.0x1010 | 103 |
Surface Resistivity,
minimum | | | | | MW | 2.5.17.1 |
| A. C-96/35/90 | 3.0x1010 | 104 | -- | -- |
B. After moisture
resistance | -- | -- | 3.0x1010 | 104 |
C. At elevated
temperature E-
24/125 | 4.0x1010 | 103 | 4.0x1010 | 103 |
Moisture Absorption,
maximum | -- | -- | 0.12 | 0.8 | % | 2.6.2.1 |
Dielectric Breakdown,
minimum | -- | -- | 60 | 40 | kV | 2.5.6 |
Permittivity (Dk,
50% resin content) | | 5.4 | | 5.4 | -- | |
(Laminate &
Laminated
Prepreg) | | | |
| A. 1MHz | 4.4 | 4.4 | 2.5.5.9 |
| B. 1GHz | 4.4 | 4.4 | |
| C. 2GHz | 4.2 | 4.3 | 2.5.5.13 |
| D. 5GHz | 4.1 | 4.1 | |
| E. 10GHz | 4 | 4.1 | |
Loss Tangent
(Df, 50% resin
content) | | 0.035 | | 0.035 | -- | |
(Laminate &
Laminated Prepreg) | | | |
| A. 1MHz | 0.015 | 0.014 | 2.5.5.9 |
| B. 1GHz | 0.015 | 0.015 | |
| C. 2GHz | 0.015 | 0.015 | 2.5.5.13 |
| D. 5GHz | 0.016 | 0.016 | |
| E. 10GHz | 0.017 | 0.016 | |
Flexural Strength,
minimum | | | | | N/mm2 | 2.4.4 |
| A. Length direction | -- | -- | 500-530 | 415 | (lb/in2) |
| | -- | -- | (72,500-76,850) | -60,190 | |
| B. Cross direction | -- | -- | 410-440 | 345 | |
| | -- | -- | (59,450-63,800) | -50,140 | |
Arc Resistance,
minimum | 125 | 60 | 125 | 60 | s | 2.5.1 |
Thermal Stress
10 s at 288°C
[550.4F],minimum | | | | | Rating | 2.4.13.1 |
| A. Unetched | Pass | Pass Visual | Pass | Pass Visual |
| B. Etched | Pass | Pass Visual | Pass | Pass Visual |
Electric Strength,
minimum | 45 | 30 | -- | -- | kV/mm | 2.5.6.2 |
(Laminate &
Laminated
Prepreg) |
| Flammability, | V-0 | V-0 | V-0 | V-0 | Rating | UL94 |
(Laminate &
Laminated
Prepreg) |
Glass Transition
Temperature(DSC) | 175 | 170 minimum | 175 | 170 minimum | ˚C | 2.4.25 |
Decomposition
Temperature | -- | -- | 345 | 340 minimum | ˚C | 2.4.24.6 |
(5% wt
loss) |
X/Y Axis CTE
(40ºC to 125ºC) | -- | -- | 10--13 | -- | PPM/˚C | 2.4.24 |
| Z-Axis CTE | | | | | | 2.4.24 |
| A. Alpha 1 | -- | -- | 45 | 60 maximum | PPM/˚C |
| B. Alpha 2 | -- | -- | 210 | 300 maximum | PPM/˚C |
C. 50 to 260
Degrees C | -- | -- | 2.7 | 3.0 maximum | % |
Thermal
Resistance | | | | | | 2.4.24.1 |
| A. T260 | -- | -- | >60 | 30 minimum | Minutes |
| B. T288 | -- | -- | >30 | 15 minimum | Minutes |
| CAF Resistance | -- | -- | Pass | AABUS | Pass/Fail | 2.6.25 |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
