PCB Board Blind Via 10layer Impedance Control with Immersion Gold
| Price: |
US $ 0.88/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-127-V1.27 |
| Impedance Control: |
Single Trace,50ohm. |
| Impedance Control.: |
Single Trace Impedance Control,100ohm. |
| Final Foil External: |
1 Oz |
| Final Foil Internal: |
0.5 Oz, 1 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Colour Of Component Legend: |
White |
| Minimum Trace And Space: |
4 Mil/4 Mil |
| Minimum / Maximum Holes: |
0.51/2.20mm |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

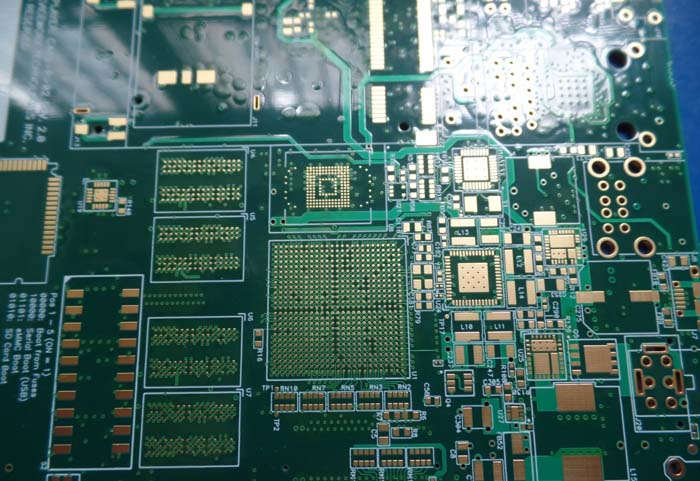

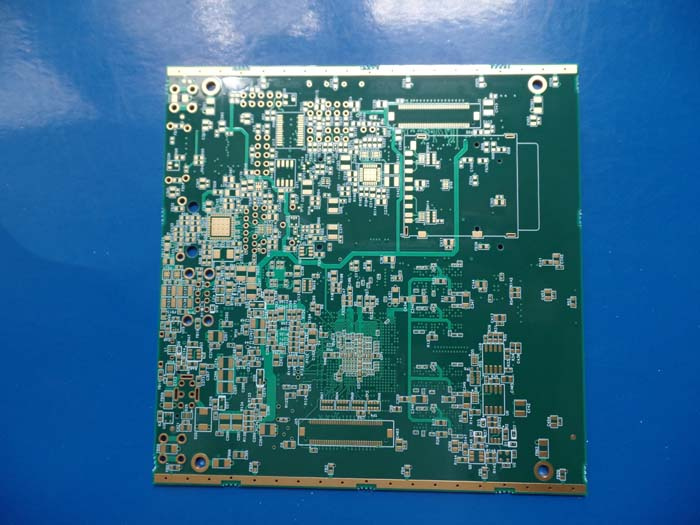

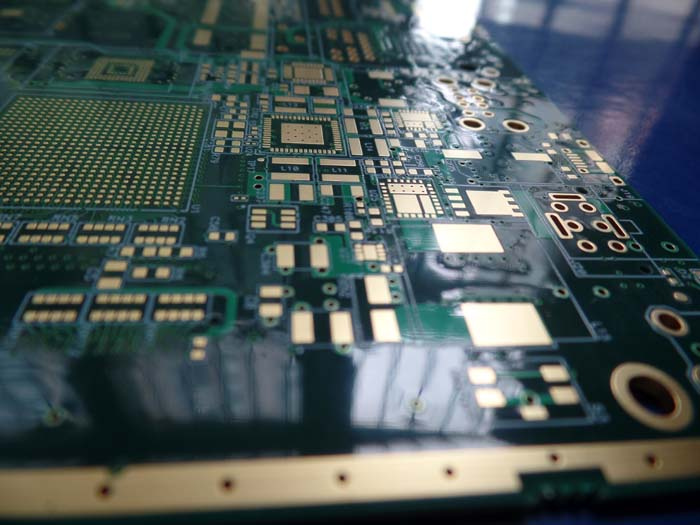

Prototype PCB Manufacturing 10 Layer Blind Via PCB FR-4 Tg170 Applied In Navigation
System
Commodity IntroductionThis is a type of FR-4 PCB for the application of Navigation System. It's a 10 layer board at
1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.
Parameters & Data Sheet| PCB SIZE | 129 x 131mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 10 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP Signal |
| 4mil prepreg |
| copper ------- 35um(1oz) GND Plane |
| 5mil FR-4 |
| copper ------- 18um(0.5oz) SIG1 |
| 5mil prepreg |
| copper ------- 18um(0.5oz) SIG2 |
| 5mil FR-4 |
| copper ------- 35um(1oz) PWR Plane |
| 13mil prepreg |
| copper ------- 35um(1oz) GND Plane |
| 5mil FR-4 |
| copper ------- 18um(0.5oz) SIG3 |
| 5mil prepreg |
| copper ------- 18um(0.5oz) SIG4 |
| 5mil FR-4 |
| copper ------- 35um(1oz) GND Plane |
| 4mil prepreg |
| copper ------- 35um(1oz)+plate BOT Signal |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4mil/4mil |
| Minimum / Maximum Holes: | 0.51/2.20mm |
| Number of Different Holes: | 21 |
| Number of Drill Holes: | 732 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | Single Trace Impedance Control, L1,L3, L7,L8, L10,
Track 6mil, 7.2mil, Differential Pairs Impedance Control, L3, L6,
Track/Space 10.5mil / 8.3mil, 6.6mil / 8.3mil ,
100Ohm |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 TG170ºC, er<5.4.IT-180, ITEQ Supplied |
| Final foil external: | 1oz |
| Final foil internal: | 0.5oz, 1oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold 0.05µm over 3µm Nickel (19.1% area) |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000 GT600D, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE
AREA |
| VIA | Plated through hole(PTH), via tented,
Blind via from Top
to Innerlayer 3 |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Navigation system, Computer Power Supplies
Electronic Assembly
Led PCB
POS Cash Register
Vehicle Tracking Devices |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Material IETQ IT-180ITEQ IT-180: Excellent thermal reliability and CAF resistance providing long-term reliability for
industrial and automobile application.
Frequently Asked Questions
What information is required for a quote?
Please send us your gerber files, PCB fabrication notes and panel drawing data when you request
for quote. This will give you an accurate price in a short time.
Acceptable document format
Gerber file RS-274-X format or RS-274-D with aperture list and drill file.
Protel .PCB files
PAD2000
ORCAD
POWERPCB
Genisis2000
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
