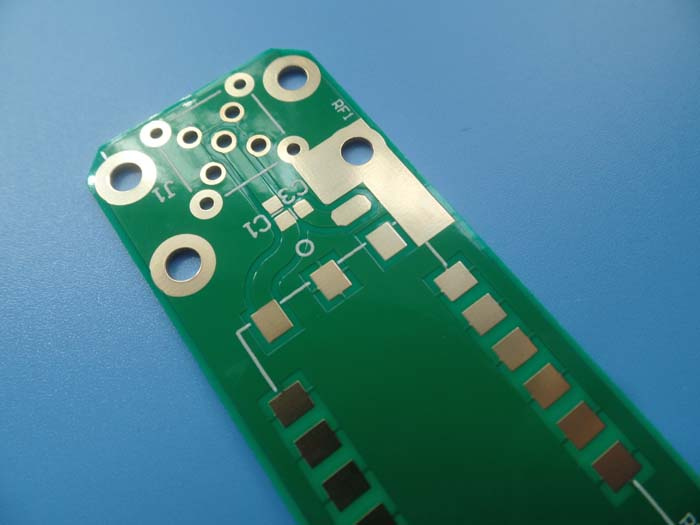

PCB Board Conductive Via Filled 1.0mm Thick 0.039"

Price:	US $ 1.08/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-568-V5.68
Final Foil External:	1.5 Oz
Final Height Of PCB:	0.8mm
Surface Finish:	Electroless Nickel Over Immersion Gold
Solder Mask Color:	Green, Psr-2000gt600d, Taiyo Supplied
Colour Of Component Legend:	White, Ijr-4000 MW300, Taiyo Supplied
Mininum Trace (Mil):	78 Mil
Minimum Gap(Mil):	30 Mil
Minimum / Maximum Holes:	1.2/3.5mm
Via:	Via Tented
Test:	100% Electrical Test Prior Shipment
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Dielectric:	RO4350b
Material:	Hydrocarbon/Woven Glass
Insulation Materials:	Glass Reinforced Hydrocarbon

Product Description

Company Profile
Bicheng Enterprise Limited is a unique printed circuit board supplier and export enterprise. She
has groups of skilled manufacturing facilities just like the experienced football players in the
football field and every batch of shipment is like a beautiful gift transmitted to your hands.

High Frequency PCB

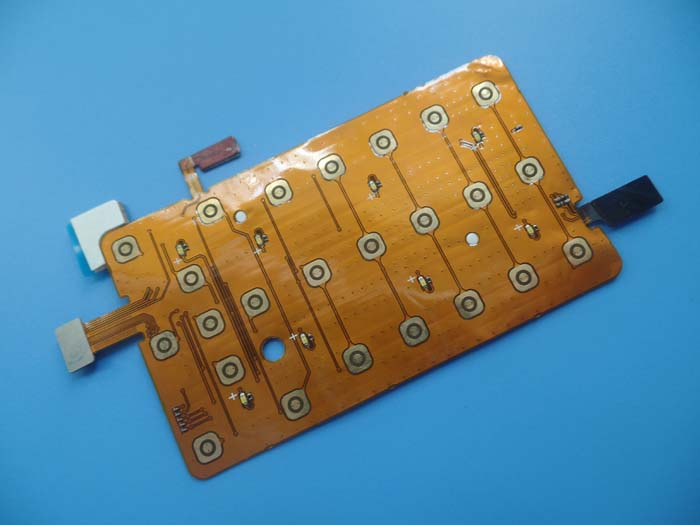

Flexible Printed Circuit

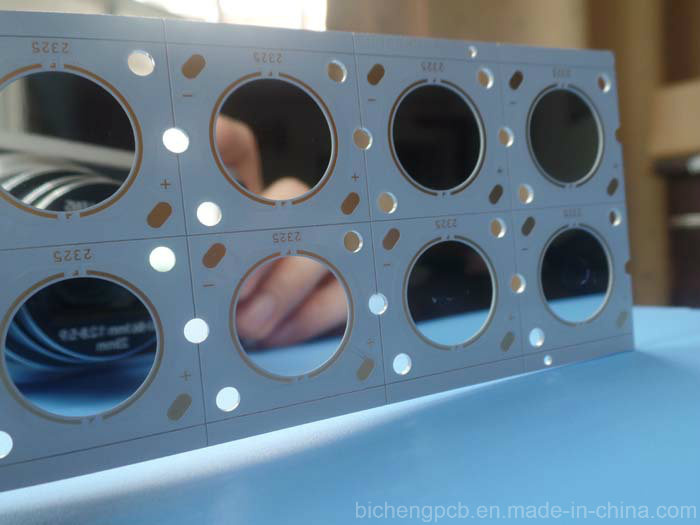

Metal Core PCB

PCB Board

How to specify a PCB?

A PCB user generally needs to present all of the primary manufacturing data in a complete and
unambiguous way that the PCB manufacturer can quote and produce the boards without error.

A checklist is listed as follows. Some parameters not necessary for a particular job can be deleted
so that the specification form only reflects the relevant data.
(1) Company name
(2) Part number
(3) Lot size and annual requirements
(4) Layer count
(5) Board size
(6) Board thickness
(7) Board shape
(8) Panelization
(9) Board build-up
(10) Boards with controlled impedance
(11) Test coupon
(12) Machining (Contouring)
(13) Laminate type and UL flammability
(14) Warp & Twist
(15) Outer layers
(16) Inner layers
(17) Solderability preservation
(18) Solder masks
(19) Notation
(20) Peelable solder mask
(21) Carbon printing
(22) Plated through holes (PTHs)
(23) Non-PTHs
(24) Milled Holes (Slots)
(25) Blind via holes
(26) Buried via holes
(27) Board tooling holes
(28) Panel tooling holes
(29) Board mounting
(30) Edge connectors
(31) Soldering conditions
(32) Markings
(33) Electrical test
(34) Automatic optical inspection
(35) Minimum pattern conditions
(36) Quality conditions

RO4350B & RO4003C Data Sheets

Property	Typical Value		Direction	Units	Condition	Test Method
	RO4003C	RO4350B
Dielectric Constant, εr Process	3.38±0.05	3.48±0.05	Z	-	10 GHz/23ºC	IPC-TM- 650 2.5.5.5 Clampled Stripline
Dielectric Constant, εr Design	3.55	3.66	Z	-	8 to 40 GHz	Differntial Phase Length Method
Dissipation Factor Tan, δ	0.0027 0.0021	0.0037 0.0031	Z	-	10 GHz/23ºC 2.5 GHz/23ºC	IPC-TM- 650 2.5.5.5
Thermal Coefficient of εr	40	50	Z	ppm/ºC	minus 50ºC to 150ºC	IPC-TM- 650 2.5.5.5
Volume Resistivity	1.7x10¹º	1.2x10¹º		MΩ·CM	COND A	IPC-TM- 650 2.5.17.1
Surface Resistivity	4.2x10^9	5.7x10^9		MΩ	COND A	IPC-TM- 650 2.5.17.1
Electrical Strenghth	31.8 (780)	31.2 (780)	Z	KV/mm (V/mil)	0.51mm (0.020")	IPC-TM- 650 2.5.6.2
Tensile Modulus	19650 (2850) 19450 (2821)	16767 (2432) 14153 (2053)	X Y	Mpa(ksi)	RT	ASTM D638
Tensile Strength	139 (20.2) 100 (14.5)	203 (29.5) 130 (18.9)	X Y	Mpa(ksi)	RT	ASTM D638
Flexural Strength	276 (40)	255 (37)		Mpa(kpsi)		IPC-TM- 650 2.4.4
Dimensional Stability	<0.3	<0.5	X,Y	mm/m (mils/inch)	after etch E2/150ºC	IPC-TM- 650 2.4.39A
Coefficient of Thermal Expansion	1114 46	10 12 32	X Y Z	ppm/ºC	minus 55ºC to 288ºC	IPC-TM- 650 2.4.41
Tg	>280	>280		ºC TMA	A	IPC-TM- 650 2.4.24
Td	425	390		ºC TGA		ASTM D3850
Thermal Conducvitity	0.71	0.69		W/m/ºk	80ºC	ASTM C518
Moisture Absorption	0.06	0.06		%	48 hrs immersion 0.060" sample Temperature 50ºC	ASTM D570
Density	1.79	1.86		gm/cm³	23ºC	ASTM D792
Copper Peel Strength	1.05 (6.0)	0.88 (5.0)		N/mm (pli)	after solder float 1 oz. EDC Foil	IPC-TM- 650 2.4.8
Flammability	N/A	V-0				UL 94
Lead-Free Process Compatible	Yes	Yes

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
