PCB Board Electronics 4 Layers Immersion Gold PCB Circuit Design
| Price: |
US $ 0.61/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-440-V4.40 |
| Outer Copper Foil: |
1 Oz |
| Board Thickness: |
1.6mm |
| Surface Treament: |
Immersion Gold |
| Solder Mask: |
Green |
| Legend: |
White |
| Min Line Width (Mil): |
10 Mil |
| Min Line Spacing (Mil): |
5 Mil |
| Electrical Test: |
100% PCB Passed |
| Thermal Shock Test: |
Pass, No Delamination, No Blistering. |
| Solderability Test: |
Pass, 5 Seconds Wetting Area Least 95% |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

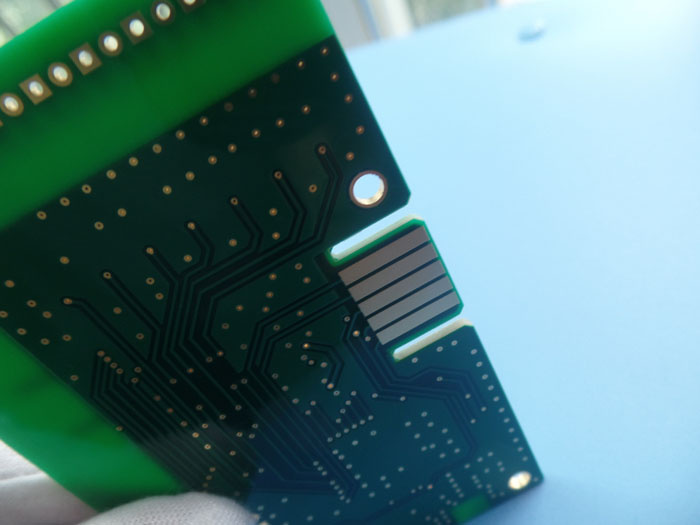

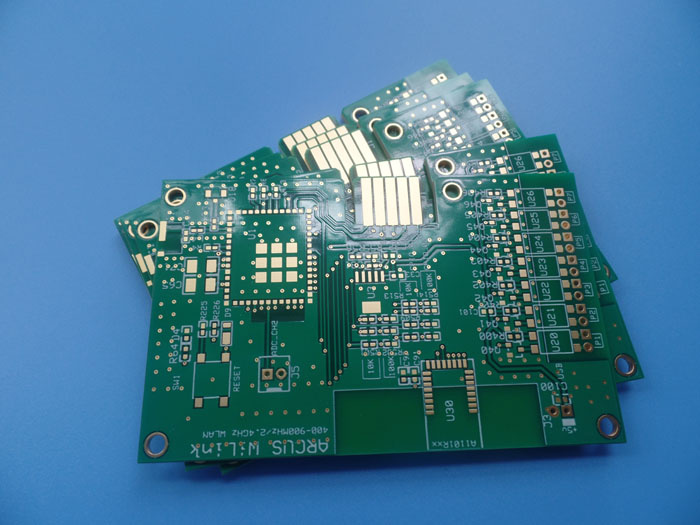

PCB Electronics 4 Layers Circuit Board With Immersion Gold Pcb Electric Circuit Board
Commodity Introduction This is a type of 4 Layer Immersion gold PCB board at 1.6mm thick for the application of Tracking
System. The base laminate is from ITEQ Tg170 FR-4, Green solder mask from Taiyo and White
silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20
panel boards are packed separately.
Parameters & Data Sheet| Number of Layers | 4 |
| Board Type | Multi-layer PCB |
| Board Thickness | 1.6mm +/-0.16 |
| Board Material | FR-4 |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 170ºC |
| |
| PTH Cu thickness | ≥25 um (See hole wall details) |
| Inner Iayer Cu thicknes | 35 um (1oz) |
| Surface Cu thickness | 35 um (1oz) |
| |
| Solder Mask Type and Model No. | LPSM, PSR-2000GT600D |
| Solder Mask Supplier | TAOYO |
| | Green |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 13um |
| |
| Type of Silkscreen Ink | TAIYO, IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 2 |
| |
| Mininum Trace (mil) | 10mil |
| Minimum Gap(mil) | 5mil |
| |
| Surface Finish | Immersion Gold |
| RoHS Required | Yes |
| Warpage | 0.25% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
Microsection Hole Wall (um)| Hole Wall Cu Thickness | ≥20 um | Hole Wall Cu Roughness | ≤25.4 um |
| NO. | A | B | C | D | E | F | AVE |
| 1 | 26.198 | 24.998 | 25.058 | 26.698 | 25.978 | 25.608 | 25.756 |
| 2 | 24.086 | 22.886 | 22.946 | 24.586 | 23.866 | 23.496 | 23.644 |
| 3 | 25.514 | 24.314 | 24.374 | 26.014 | 25.294 | 24.924 | 25.073 |
Outline dimension Unit: mm| NO. | Required Dimension (toerance) | Actual dimension |
| 1 | 79.25 | ±0.15 | 79.22 | 79.32 | 79.35 | 79.22 |
| 2 | 99.82 | ±0.15 | 99.82 | 99.84 | 99.77 | 99.79 |
Drill Table (mm)| NO. | Requerment Dimension (tolerance) | Attribute |
| 1 | 0.800 | ±0.076 | PTH |
| 2 | 0.900 | ±0.076 | PTH |
| 3 | 1.000 | ±0.076 | PTH |
| 4 | 1.050 | ±0.076 | PTH |
| 5 | 1.350 | ±0.05 | NPT |
| 6 | 3.150 | ±0.05 | NPT |
Learn PCB and Buy PCB --- HASLHot air solder leveling is for short HASL, which is a common type of surface finish used on printed
circuit boards (PCBs). We dipped the PCBs (with exposed copper surfaces) into a bath of molten
solder, then remove the excess solder on PCB surface and in the holes by strong hot air(which we
call it HASL machine) to get a glossy layer of coating.
One is alloy of tin and lead. The temperature of smelting furnace for Tin/Led is about 240ºC.
Another one is pure tin, because lead is harmful to human body, EU has forbidden using tin/lead.
So the popular is pure tin or HASL Lead free. The temperature of smelting furnace for pure tin is
highly at 300ºC, and plus the operating environment, high temperature and high etching are great
harm on PCB itself. Due to its hot air generated, HASL has low planarity. It makes this surface
finish unsuitable for use with fine pitch components. It has hidden danger of board warp or twist
under high thermal stress. To avoid this disadvantages, high Tg material and PP are took into
consideration for some PCB user. But it also has excellent wetting during component soldering
and it can avoid copper corrosion. So it is also mostly used in single sided PCB, Double sided
PCB and some multilayer PCB.
