PCB Board Heavy Copper 2 Oz with Blue Soldermask

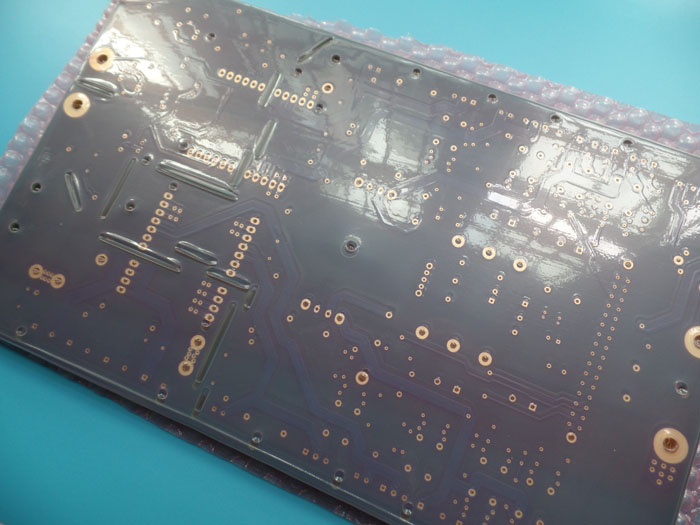

Name: PCB Board Heavy Copper 2 Oz with Blue Soldermask
Brand: all-electronics-online.com
SKU: 823050175
Availability: InStock
Rating: 4.4 (55 reviews)

Price:	US $ 2.04/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-237-V2.37
Outer Copper Foil:	2 Oz
Board Thickness:	2.4mm
Surface Treament:	Immersion Gold
Solder Mask:	Blue
Legend Color:	White
Min Line Width (Mil):	8.2 Mil
Min Line Spacing (Mil):	7.8 Mil
Electrical Test:	100% PCB Passed
Visual Inspection:	Ipc-a-600h&Ipc-6012c
Solderability Test:	245ºC 5s 1 Cycle
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

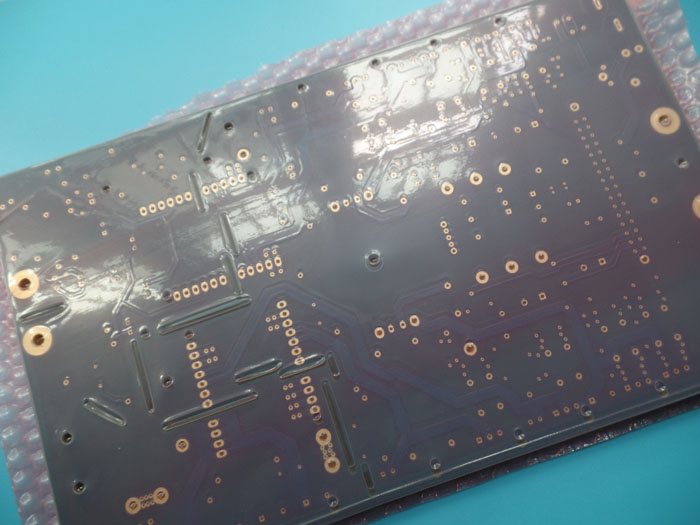

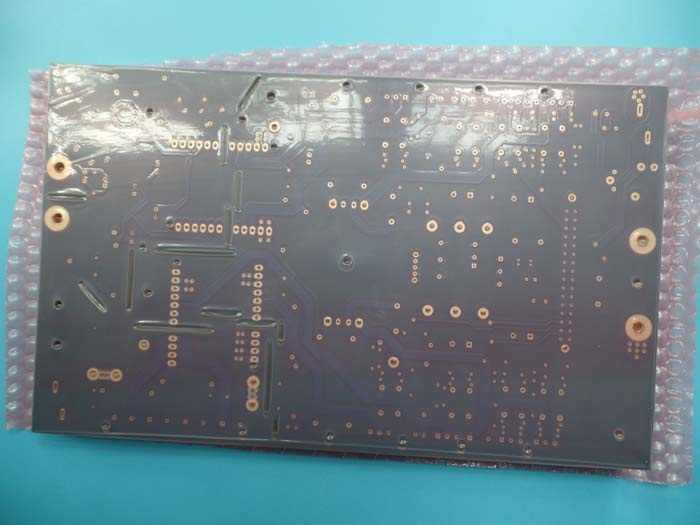

2oz Heavy Copper PCB Tg170 FR4 with Blue solder Mask and Immersion Gold in Battery Charger

Commodity Introduction
This is a type of FR-4 PCB for the application of Battery Charger. It's a 4 layer board at 2.4mm thick.The base laminate is from ITEQ, Solder mask and silkscreen from SHUANG SHUN. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4	FR-4 TG170
	Supplier	ITEQ	ITEQ
	Board thickness	2.4+/-10%mm	2.35-2.41mm
	Outer copper foil	>=70 um	72.09
	Inner copper foil	70um	70 um
	Warp-twist	<=1%	0.35%
Legend	Type	KUANG SHUN	KUANG SHUN
	Color	White	White
	Location	CS	CS
Marking	Co.logo	As requirement	ok
	UL.logo	As requirement	ok
	Date code	As requirement	ok
	Marking form	As requirement	ok
	Location	CS	CS
Min line width (mil)		8	8.2
Min line spacing (mil)		8	7.8
Min ring width (mil)		NA	NA
Solder Mask	Type	R-500 BL	R-500 BL
	Color	Blue	Blue
	Thickness	>=10 um	14 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treament	Immersion gold		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

Finished dimension (unit: mm): including v-cut

No	Required Dimension (tolerance)	Actual Dimension
1	120.40	120.41	120.39	120.39	120.44
2	142.04	142.13	141.93	142.11	141.97

Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)

No	Required	PTH	Actual Dimension
1	1.100	Y	1.100	1.075	1.125	1.100
2	1.400	Y	1.400	1.375	1.425	1.400
3	1.600	Y	1.600	1.575	1.625	1.600
4	4.100	Y	4.100	4.075	4.125	4.100

Learn PCB and Buy PCB
How to specify a PCB?
A PCB user generally needs to present all of the primary manufacturing data in a complete and unambiguous way that the PCB manufacturer can quote and produce the boards without error.

A checklist is listed as follows. Some parameters not necessary for a particular job can be deleted so that the specification form only reflects the relevant data.
(1) Company name
(2) Part number
(3) Lot size and annual requirements
(4) Layer count
(5) Board size
(6) Board thickness
(7) Board shape
(8) Panelization
(9) Board build-up
(10) Boards with controlled impedance
(11) Test coupon
(12) Machining (Contouring)
(13) Laminate type and UL flammability
(14) Warp & Twist
(15) Outer layers
(16) Inner layers
(17) Solderability preservation
(18) Solder masks
(19) Notation
(20) Peelable solder mask
(21) Carbon printing
(22) Plated through holes (PTHs)
(23) Non-PTHs
(24) Milled Holes (Slots)
(25) Blind via holes
(26) Buried via holes
(27) Board tooling holes
(28) Panel tooling holes
(29) Board mounting
(30) Edge connectors
(31) Soldering conditions
(32) Markings
(33) Electrical test
(34) Automatic optical inspection
(35) Minimum pattern conditions
(36) Quality conditions
