PCB Board Heavy Copper 2oz Green Soldermask with Immersion Gold

Name: PCB Board Heavy Copper 2oz Green Soldermask with Immersion Gold
Brand: all-electronics-online.com
SKU: 822061975
Availability: InStock
Rating: 4.8 (70 reviews)

Price:	US $ 1.25/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-214-V2.14
Board Thickness:	.062 Inches
Copper Thickness:	2 Oz
Solder Mask Color:	Green
Silkscreen Color:	White
Finish:	Gloss
RoHS Compliant:	Yes
Plating:	Electroless Nickel Immersion Gold
Hole Tolerance:	+/-3mil, Npth: +/-2mil
Shipping Ways:	DHL, UPS, TNT, FedEx
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

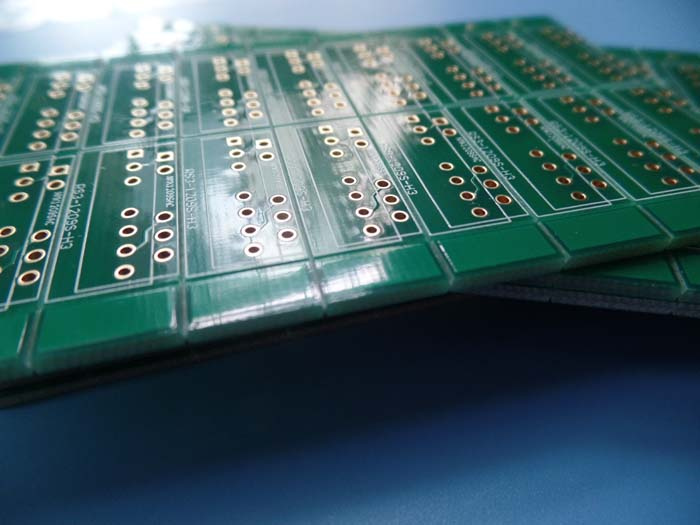

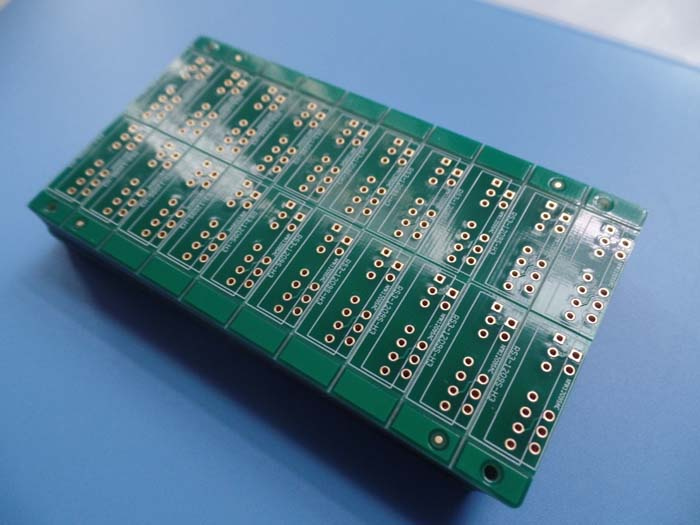

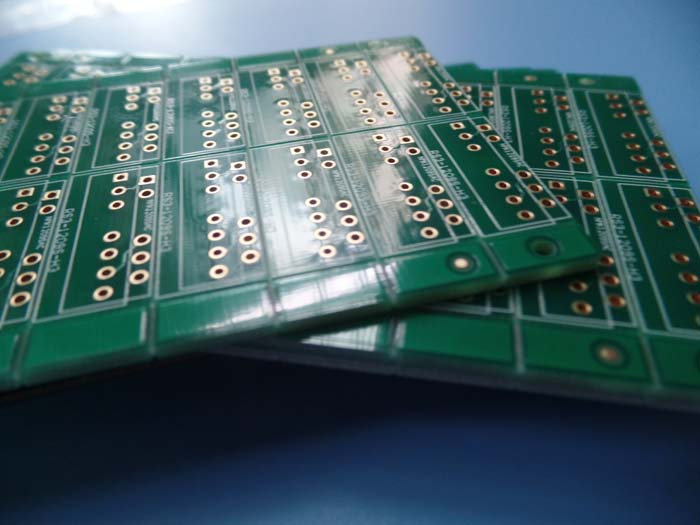

20up per panel Double Sided PCB 2oz 0.062 Inches Thick with Electroless nickel Immersion Gold in Wireless USB

Commodity Introduction
This is a type of FR-4 PCB for the application of Wireless USB. It's a 2 layer board at .062 Inches thick.The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplie
-d Gerber data. Each 10 boards or panels are packed separately.

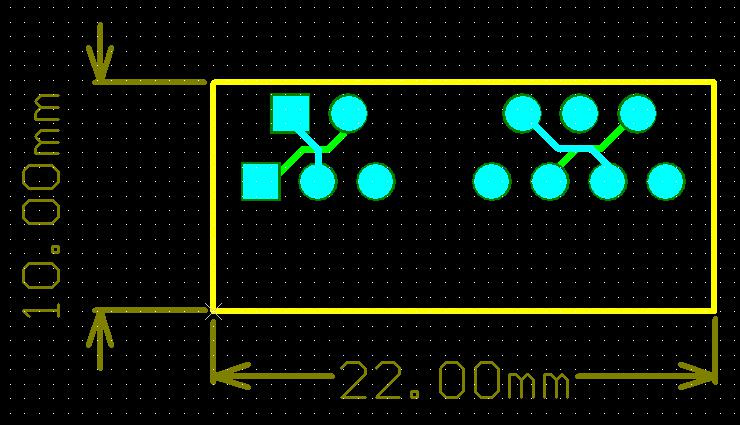

Gerbers Folder:
- Inverter.GTS -- Top Solder Mask Layer
- Inverter.GTP -- Top Paste Layer
- Inverter.GTO -- Top Silkscreen Layer
- Inverter.GTL  -- Top Copper Layer 1
- Inverter.GBL  -- Bottom Copper Layer 2
- Inverter.GBS  -- Bottom Solder Mask Layer

Board Information

Core Material:	FR-4
Board Thickness:	.062 Inches
Copper Thickness:	2 Oz
Number of Layers:	2 on FR-4
Plating:	Electroless nickel immersion gold
LPI Solder Mask:	Top and Bottom
Solder Mask Color:	GREEN
Silkscreen Color:	White
Silkscreen Sides:	Top
Finish:	Gloss
RoHS Compliant:	Yes
ITAR:	No
Hole tolerance:	PTH: +/-3mil, NPTH: +/-2mil
Shipping ways:	DHL, UPS, TNT, FedEx
Inner packing:	vacuum packing

Learn PCB and Buy PCB
Frequently used Unit Conversion in PCB industry

1 inch= 25.4mm
1 inch= 1000mil
1 foot = 12 inch=0.3048 meter

1mm = 39.37mil
1mm = 1000µm
1µm = 39.37 micro inch

1oz = 35µm = 1.4mil = 305g/m²

1inch² = 0.0645dm² = 6.4516cm² = 645.16mm²
1ft² = 144 inch² = 0.09290304m² = 9.29dm²
1m² = 1549.9969 inch²

Advantages

Engineering design prevents problems from occurring in pre-production
Focus on low to medium volume production
UL recognized and RoHS Directive-compliant
Good oxidation resistance and good heat dissipation

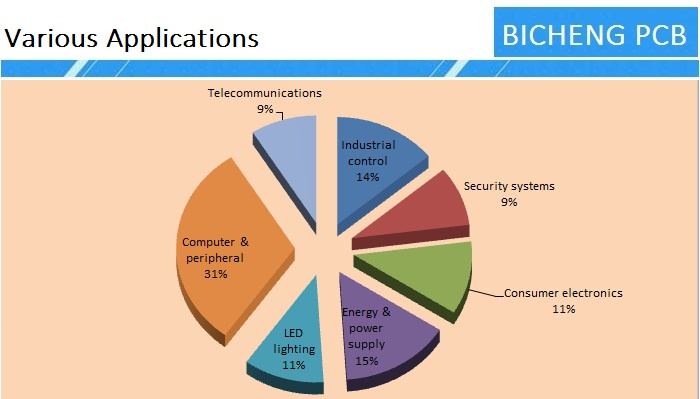

Applications
Inverters
Wireless USB
Portable PA Systems
GPS Trackers
Signal Generator
Video Surveillance
Wireless Bridge

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
