PCB Board Metal Core Single Sided Aluminum Immersion Silver
| Price: |
US $ 1.12/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1059R4.3 |
| Board Thick: |
1.2mm |
| Solder Mask Color: |
White |
| Surface Finish: |
Immersion Sliver |
| Legend Color: |
Balck |
| Copper Thick: |
1.0 Oz |
| Minimum Trace and Space: |
16mil/17mil |
| Minimum / Maximum Holes: |
3.3/7.5mm |
| Thermal Resistance(°c/W): |
≤0.45 |
| Via: |
No Via |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Aluminum |
| Dielectric: |
Aluminum 5052 |
Product Description

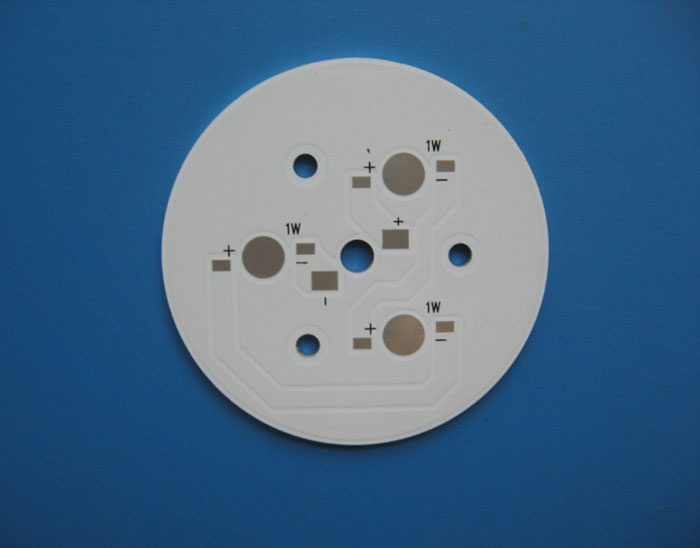

Metal Core Board Aluminum PCB Single Sided Immersion Silver Applied In LED Lighting
Commodity Introduction
This is a type of Aluminum PCB for the application of LED light . It's a single sided layer board at
1.2mm thick. The base laminate is from ITEQ Solder mask and silkscreen from Taiyo. It's fabricat
-ed per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 59 x 59mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Single sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz) |
| 1W/MK dielectric material |
| Aluminum 5052 |
| TECHNOLOGY | |
| Minimum Trace and Space: | 16mil/17mil |
| Minimum / Maximum Holes: | 3.3/7.5mm |
| Number of Different Holes: | 2 |
| Number of Drill Holes: | 4 |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Thermal conductivity | 1W/MK dielectric material, MCPCB |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.2mm ±0.12 |
| PLATING AND COATING | |
| Surface Finish | Immersion silver, Ag>0.15µm |
| Solder Mask Apply To: | Top. 12µm Minimum. |
| Solder Mask Color: | White,PSR400 WT02 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | no via |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | LED light, Wireless Surveillance System
Video Surveillance System
Embedded System
Industrial Automation
Gps Antenna |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Metal core PCB, LED PCB
Metal core PCB's are thermal management circuit boards which use a base metal material as the heat dissipater part of the PCB. They are used in high heat generating application like LED lighting
in the area of high power LED lighting, Automotive Interior, Exterior Lighting, Parking Garagen
Lighting, LED spot light etc.
Bicheng provides metal core PCB (MCPCB) as follows:
1) Single sided, double sided and multi layers.
2) Insulated metal substrate (IMS PCB) and Metal core PCB (MCPCB)
3) High thermal conductivity to 3W/MK
4) Heavy copper up to 4oz
5) Proceeding thickness: 0.4-6.0mm thick
6) Plate through hole (PTH≥20μm)
7) BGA (minimum pad at 14 mils), Impedance control (+/-10)
8) V-Groove, Punch, CNC mill
9) Long strips, composite aluminum
10) ENIG, HASL, OSP and Immersion tin
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
