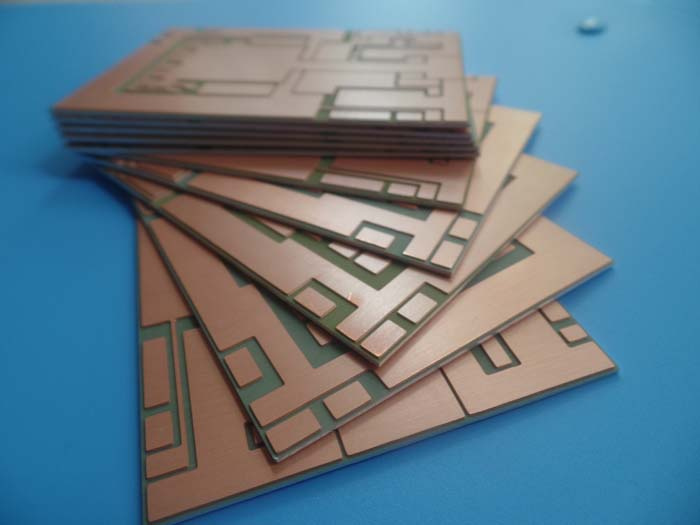

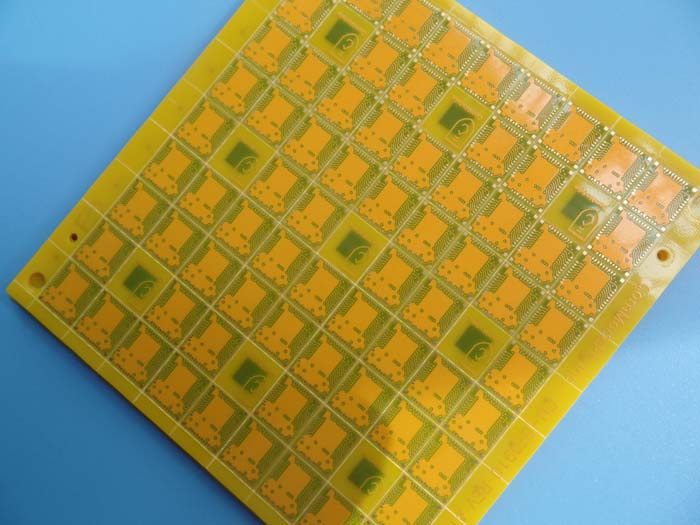

PCB Board Red Solder Mask Rogers Rapid Prototype
| Price: |
US $ 1.2/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-583-V5.83 |
| Board Thickness: |
0.150mm |
| Tg Value Of Board Material: |
60ºC |
| Surface Cu Thickness: |
35 µm |
| Coverlay Colour: |
Yellow |
| Thickness Of Coverlay: |
25 µm |
| Stiffener Thickness: |
0.2mm |
| Color Of Silkscreen: |
White, Taiyo, Ijr-4000 MW300 |
| Peeling Test Of Coverlay: |
No Peelable |
| Surface Finish: |
Immersion Gold |
| RoHS Required: |
Yes |
| Structure: |

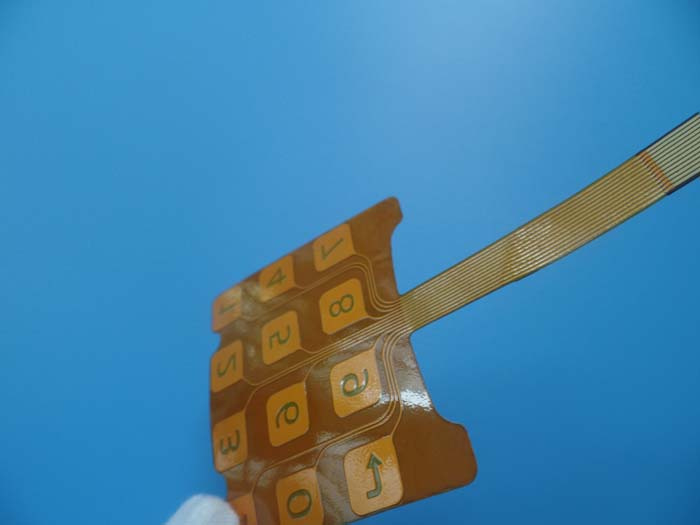

Double-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
| Application: |

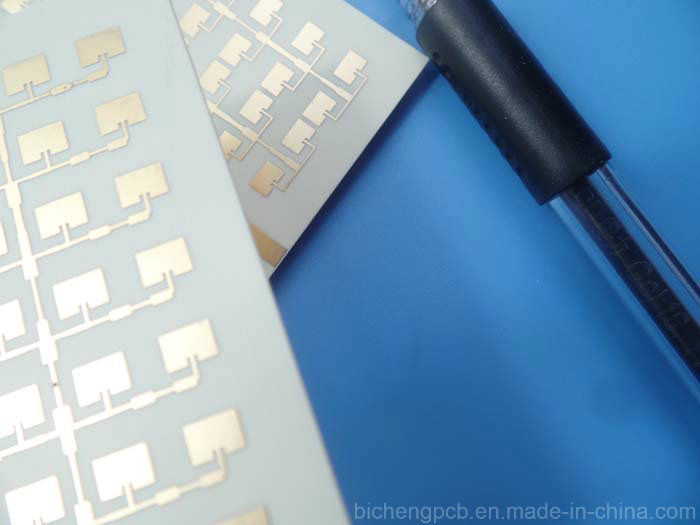

Application of Antenna |
| Insulation Materials: |
Polyimide |
Product Description
Company ProfileBicheng Enterprise Limited which was founded in 2003 is a leading PCB expert that specializes in
supplying high-tech PCB in high mixed, fast prototype, small to medium volume. We're capable of
supplying PCBs up to 32 layers inclusive of HDI circuit boards, flexible circuits, rigid-flex boards,
hybrids, halogen-free boards, metal-based PCB, high frequency PCB, heavy copper (up to 12
oz) PCB etc. which are in the applications of high-tech products.
The manufacturing facility is certified with ISO9001, ISO14001 & TS16949.Our products are widely
used in Telecom, Industrial Control, Networks, Healthcare, & Automotive Industries.
Printed Circuit Board
High Frequency PCB
Aluminum PCB
Flexible PCB

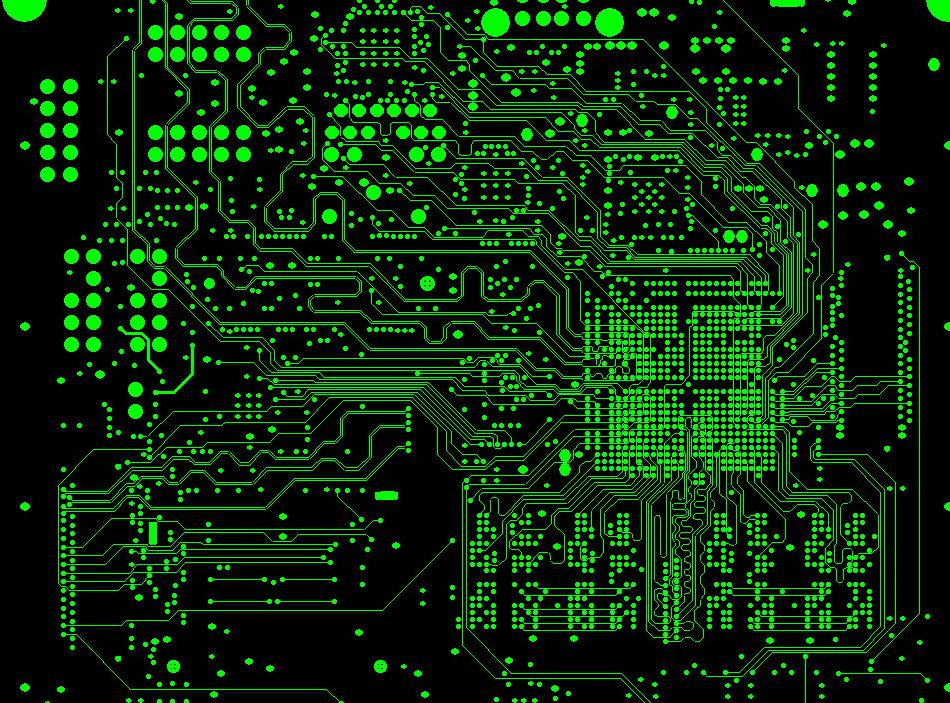

Image Transfer
As PCBs become more complex, patterns (pads and tracks) are becoming finer and finer. It is
very crucial to transfer the image without any noticeable distortion. The finished image will act
as a plating resist. This is usually based on a dry-film resist of a certain thickness that matches
the plating thickness.
The most commonly used track width is about 0.102 mm (4 mils) which could be regarded as
the standard width. However, widths of 0.076 mm (3 mils) are also in use, and some Chinese
PCB manufacturers operate with track widths down to 0.050 mm (2 mils). But the PCB designer
should not be tempted by track widths of 0.076 mm (3 mils) or smaller because the manufacturing
yield becomes lower and the board price, correspondingly, higher.
The purpose of image transfer is to cover those areas of the board that are not to be plated with
copper, tin/lead or pure tin, with a plating resist, and to leave the pattern open for electroplating.
With plated-through-hole boards, image transfer is performed by means of a photopolymer dry
-film process consists of the following steps:- Lamination
- Registration
- Exposure
- Developing
- Laser Direct Imaging
Bicheng Flexible Printed Circuit Capability| No. | Specifications | Capabilities |
| 1 | Board Type | Single layer, Doulbe layer,
Multilayer, Rigid-Flex |
| 2 | Base Material | PI, PET |
| 3 | Copper Weight | 0.5oz, 1oz, 2oz |
| 4 | LED Maximum Size | 250 x 5000mm |
| 5 | General Maximum Size | 250 x 2000mm |
| 6 | Board Thickness | 0.03mm-3.0mm |
| 7 | Thickness Tolerance | ±0.03mm |
| 8 | Mininum Drill Hole | 0.05mm |
| 9 | Maximum Drill Hole | 6.5mm |
| 10 | Tolerance of Drill Hole | ±0.025mm |
| 11 | Thickness of Hole Wall | >= 8 um |
| 12 | Minimum Track/Gap
of Single Layer Board | 0.025/0.03mm |
| 13 | Minimum Track/Gap of
Double Layer and Multilayer Board | 0.03/0.040mm |
| 14 | Etching Tolerance | ±0.02mm |
| 15 | Minimum Width of Silk Legend | >= 0.125mm |
| 16 | Minimum Heigh of Silk Legend | >=0.75mm |
| 17 | Distance from Legend to Pad | >=0.15mm |
| 18 | Distance from Opening Solder
Mask of Drill Coverlay to Track | >=0.03mm |
| 19 | Distance from Opening Solder
Mask of Punching Coverlay to Track | >=0.03mm |
| 20 | Thickness of Immersion Nickel | 100-300u" |
| 21 | Thickness of Immersion Gold | 1-3u" |
| 22 | Thicnkess of Immersion Tin | 150-400u" |
| 23 | Minimum Electrical Testing Pad | 0.2mm |
| 24 | Minimum Tolerance of Outline
(Normal Steel Mould Punch) | ±0.1mm |
| 25 | Minimum Tolerance of Outline
(Precision Steel Mould Punch) | ±0.05mm |
| 26 | Mininum Radius of Bevel Angle (Outline) | 0.2mm |
| 27 | Stiffner Material | PI, FR-4, 3M Adhesive, PET, Steel Sheet |
| 28 | RoHs | Yes |
| 29 | Solder Mask Colour | Yellow, White, Black, Green |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

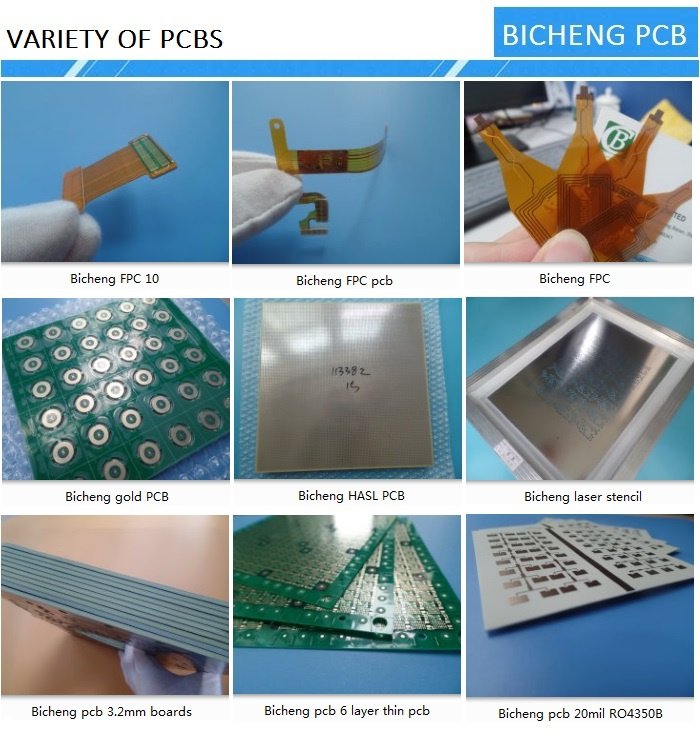

A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
