PCB Board RO4350b 2 Layer Printed Circuit Board 0.8mm Thick
| Price: |
US $ 0.98/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-106-V1.06 |
| Final Height Of PCB: |
0.8mm |
| Surface Finish: |
Immersion Gold (Enig) |
| Solder Mask Color: |
Green |
| Colour Of Component Legend: |
White |
| Copper Thick: |
1.5 Oz |
| Via: |
Plated Through Hole(Pth) |
| Minimum / Maximum Holes: |
0.8/3.5mm |
| Minimum Trace and Space: |
78 Mil/30 Mil |
| Board Plating: |
0.0030" |
| Test: |
100% Electrical Test Prior Shipment |
| Structure: |
Double-Sided Rigid PCB |
| Production Process: |
Subtractive Process |
| Dielectric: |
RO4350b 30mil (0.762mm), Tg 288ºC |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
| Material: |
Hydrocarbon/Woven Glass |
Product Description

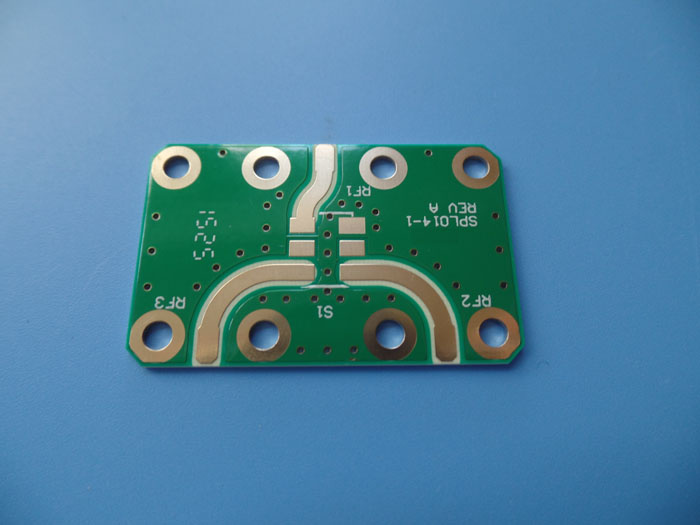

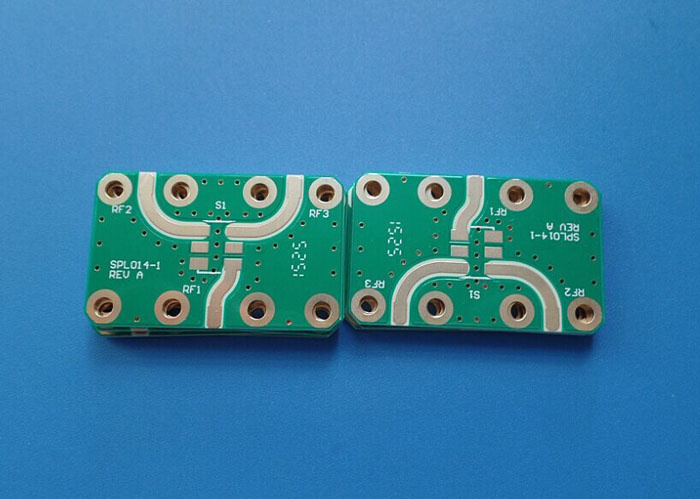

RF High Frequency PCB board RO4350B printed circut board 30mil 2 Layer 1oz Immersion Gold Green Mask Applied In Antenna
Commodity Introduction
This is a type of RO4350B PCB for the application of In Antenna. It's a 2 layer board at 0.8mm
thick. The base laminate is from ROGERS CORP, Solder mask and silkscreen from Taiyo. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.
Parameters & Data Sheet| PCB SIZE | 38 x 25mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| RO4350B 30mil (0.762mm) |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 78mil/30mil |
| Minimum / Maximum Holes: | 0.8/3.5mm |
| Number of Different Holes: | 2 |
| Number of Drill Holes: | 53 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B 30mil (0.762mm), Tg 288ºC |
| Final foil external: | 1.5oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.8mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel) |
| Solder Mask Apply To: | Top,12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), Via tented |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Antenna, Router Antenna
Solar Power Inverter
Electric Converter
Computer Router
Solar Inverters |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
