PCB Circuit 4 Layer Board Black Soldermask with Immersion Gold

Name: PCB Circuit 4 Layer Board Black Soldermask with Immersion Gold
Brand: all-electronics-online.com
SKU: 822434115
Availability: InStock
Rating: 4.7 (137 reviews)

Price:	US $ 0.42/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC1296R3.8
Surface Finish:	Immersion Gold
Board Thick:	1.6mm
Solder Mask Color:	Black
Legend Color:	White
Min Line Width (Mil):	6.7 Mil
Min Line Spacing (Mil):	6.5 Mil
Outer Copper Foil:	42.76mm(1 Oz)
Inner Copper Foil:	35um (1 Oz)
Warp-Twist:	0.69%
Test:	Electronic Test
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

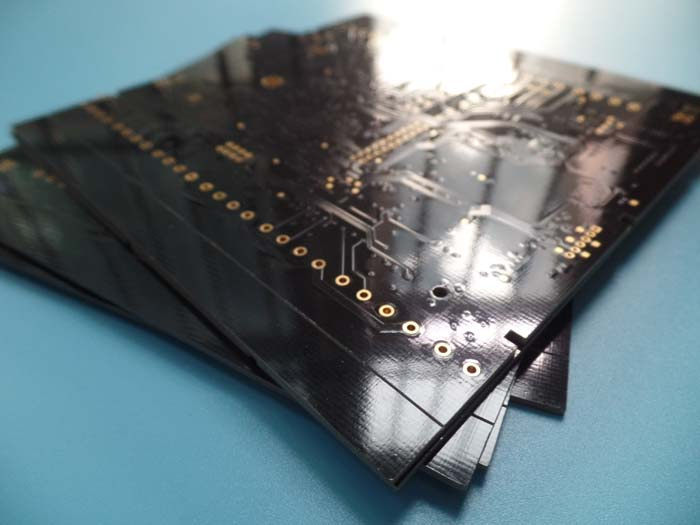

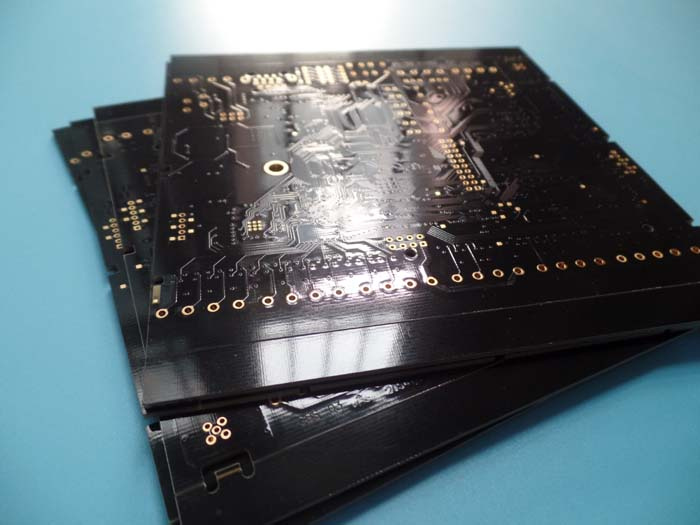

PCB Circuit 4 Layer board Black soldermask with Immersion Gold

Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a 4 Layer board at 1.6mm thick.
The base laminate is from ITEQ, Solder mask and silkscreen from Kuang Shun and Taiyo. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4	FR-4
	Supplier	ITEQ	ITEQ
	Board thickness	1.60±10% mm	1.55-1.57 mm
	Outer copper foil	>=35 um	42.76um
	Inner copper foil	35um	35um
	Warp-twist	<= 0.75%	0.69%
Legend	Type	IJR-4000 MW300	IJR-4000 MW300
	Color	White	White
	Location	CS & SS	CS & SS
Marking	Co.logo	YES	OK
	UL.logo	YES	OK
	Date code	WWYY	WWYY
	Marking form	NA	OK
	Location	CS	CS
Min line width (mil)		6.5	6.7
Min line spacing (mil)		6.7	6.5
Min ring width (mil)		NA	NA
Solder Mask	Type	KSM-S6189BK31	KSM-S6189BK31
	Color	Black	Black
	Thickness	>=10 um	13 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treament	Immersion gold		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

BichengPCB serves global customers from Shenzhen, China

Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified

Variety of PCB technology to meet the market demands
HDI board
Heavy copper board
Hybrid material board
Blind via board
High frequency board
Metal core board
Immersion gold board
Multilayer board
Backplane board
Gold finger board

Comprehensive sales service presale, in sale and after sale.
Quick CADCAM checking and free PCB quotation
Free-of-charge PCB panelization
Prototype PCB capability
Volume Production capability
Quick turn-around samples
Free-of-charge PCB test
Solid carton packing

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

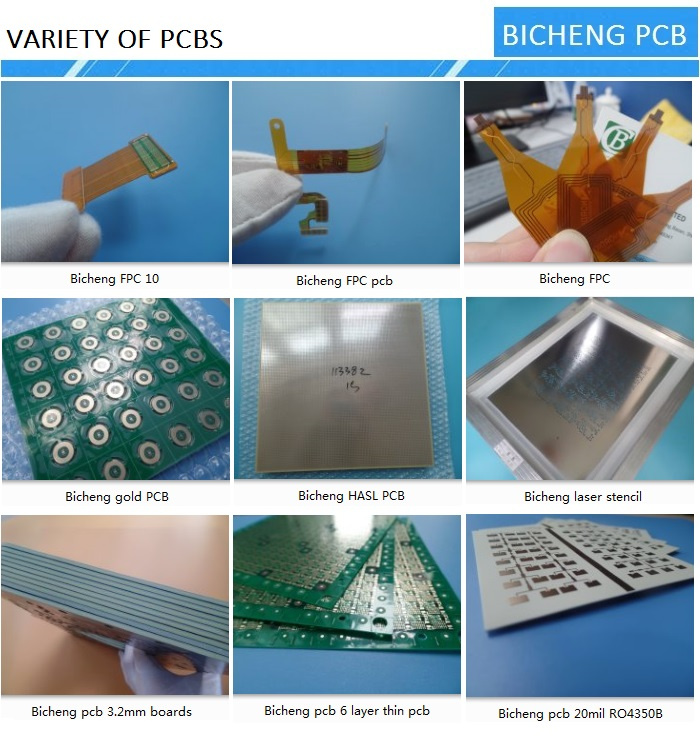

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
