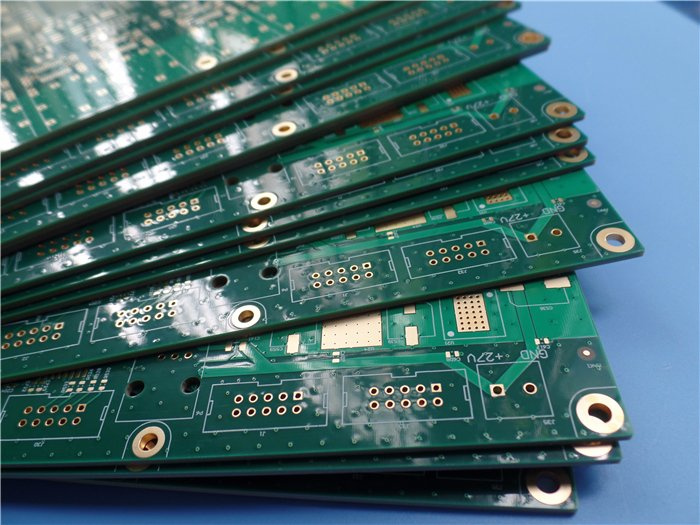

Name: PCB Circuit Board Hybrid CTI 600V Taiyo Solder Mask
Brand: all-electronics-online.com
SKU: 835921085
Availability: InStock
Rating: 4.9 (60 reviews)

Price:	US $ 0.95/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-653-V6.53
Aluminum Core:	2W/Mk Dielectric Material 75um
Minimum Trace And Space:	19 Mil/21 Mil
Minimum / Maximum Holes:	3.0/5.6mm
Final Foil External:	1 Oz
Final Height Of PCB:	1.2mm
Surface Finish:	Hot Air Soldering Leveling(HASL), Lead Free
Solder Mask Color:	White
Colour Of Component Legend:	Black
Via:	Non Plated Throught Hole (Npth)
Test:	100% Electrical Test Prior Shipment
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Material:	Aluminum
Dielectric:	Aluminum 5052

Product Description

Company Profile
You're benefit from following 5 types of 2 layer PCB's from Bicheng Enterprise Limited.

(1) FR-4 material (The most common used today)

Normal TG, High TG 170, High CTI 600V
Material (CCL) Brand: ITEQ, SHENGYI, KB

(2) High frequency material

RO4350B, RO4003C
PTFE (F4B series from China Brand)

(3) Insulated Metal Substrate (IMS) PCB, typical stack-up as follows

L1---Copper conductor
PP---dielectric material
L2---copper conductor
PP---dielectric material
AL---aluminum base

(4) Metal core PCB (MCPCB), typical stack-up as follows

L1---copper conductor
PP---dielectric material
AL---aluminum core
PP---dielectric material
L2---copper conductor

(5)Polyimide material (Flexible PCB)

Aluminum PCB

High Frequency PCB

Flex PCB

PCB Circuit Board

Technology Information

Performance parameter of Aluminum, Copper, Iron and Ceremic

Material	Model	Hardness HB500KgF	Density (g/cm3)	Coefficient of thermal conductivity	Expansion coefficient (10E-6/K)
Aluminum	1100	32	2.71	218	23
Aluminum	5052	68	2.68	138	23
Aluminum	6061	95	2.7	155	23
Red copper	C1100	30	8.9	401	16.7
Iron	D3004	140	7.8	80	1.2
Ceramic	96% AL2O3	-	3.8	20-30	6
