PCB Circuit Board Red Soldermask 4 Layer Both Sides OSP

Name: PCB Circuit Board Red Soldermask 4 Layer Both Sides OSP
Brand: all-electronics-online.com
SKU: 822898895
Availability: InStock
Rating: 4.6 (89 reviews)

Price:	US $ 0.65/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-234-V2.34
Outer Copper Foil:	1 Oz
Board Thickness:	1.6mm
Surface Treament:	OSP
Solder Mask:	Red,Kuang Shun
Legend:	White,Kuang Shun
Min Line Width (Mil):	8.1 Mil
Min Line Spacing (Mil):	5.7 Mil
Electrical Test:	100% PCB Passed
Visual Inspection:	Ipc-a-600h&Ipc-6012c
Warp-Twist:	0.54%
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

Red Solder Mask Prototype 4 Layer PCB Silkscreen printed for Both Sides OSP PCB in Usb
Wireless Adapter

Commodity Introduction
This is a type of FR-4 PCB for the application of Wireless Adapter. It's a 4 layer board at 1.6mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from KUANG SHUN. It's

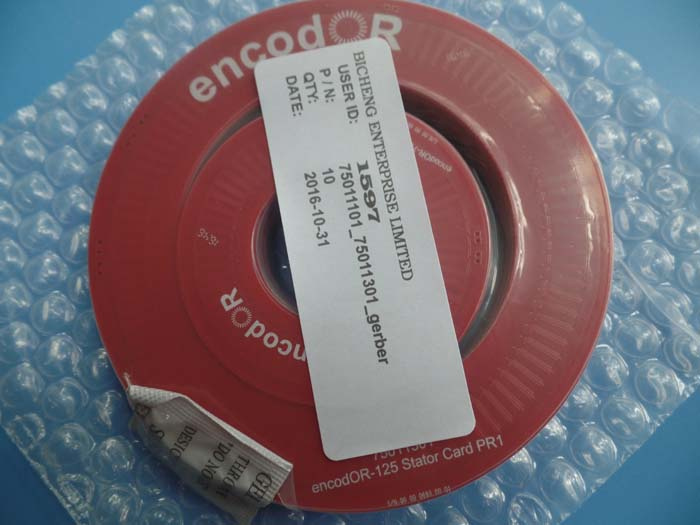

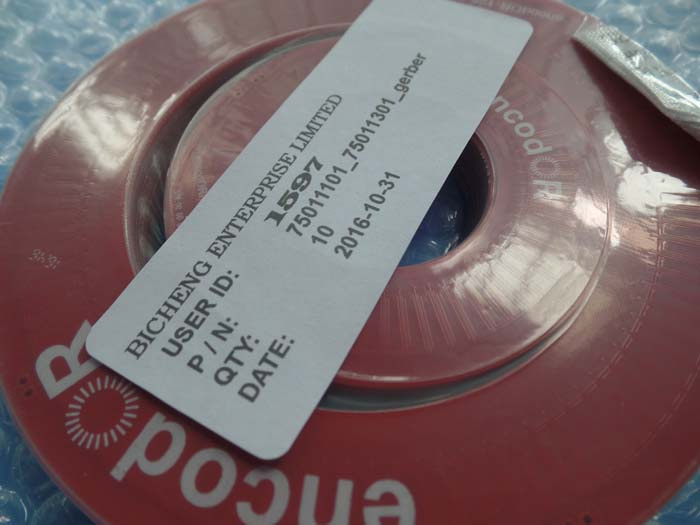

fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4	FR-4 TG170
	Supplier	ITEQ	ITEQ
	Board thickness	1.6+/-10%mm	1.61-1.67mm
	Outer copper foil	>=35 um	41.85
	Inner copper foil	1/1 OZ	1/1 OZ
	Warp-twist	<= 0.75%	0.54%
Legend	Type	KUANG SHUN	KUANG SHUN
	Color	White	White
	Location	CS & SS	CS & SS
Marking	Co.logo	YES	OK
	UL.logo	YES	OK
	Date code	WWYY	WWYY
	Marking form	NA	OK
	Location	CS	CS
Min line width (mil)		7.87	8.1
Min line spacing (mil)		5.9	5.7
Min ring width (mil)		NA	NA
Solder Mask	Type	KUANG SHUN	KUANG SHUN
	Color	Red	Red
	Thickness	>=10 um	13 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treament	OSP		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

Finished dimension (unit: mm): including v-cut

No	Required Dimension (tolerance)	Actual Dimension
1	165.99	166.01	185.99	165.98	166.08
2	359.99	360.00	360.06	360.10	359.95

Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)

No	Required	PTH	Actual Dimension
1	0.600	Y	0.600	0.575	0.625	0.600
2	0.700	Y	0.700	0.675	0.725	0.700
3	0.800	Y	0.800	0.775	0.825	0.800
4	1.000	Y	1.000	0.975	1.025	1.000
5	1.100	Y	1.100	1.075	1.125	1.100
6	1.200	Y	1.200	1.175	1.225	1.200
7	1.225	Y	1.225	1.200	1.250	1.225
8	1.850	Y	1.850	1.825	1.875	1.850
9	4.000	N	4.000	3.975	4.025	4.000
10	4.300	Y	4.300	4.275	4.325	4.300

Learn PCB and Buy PCB
Characteristics of PCB

PCB has been more and more widely used, because it has many unique advantages. It can be
summarized as follows.

a) Can be high density. For decades, PCB with high density can be developed with the integration
of integrated circuits and surface mount technology progress.

b) High reliability. Through a series of inspection, testing and aging tests can ensure long time (use
period, generally 20 years) and reliable work.

c) Designability. Various performance (electrical, physical, chemical, mechanical, etc.) requirements
on PCB can be achieved by design standardization and standardization, etc. short time and high
efficiency.

d) Productibility. The use of modern management, it can be produced by standardization
production, scale production (mass production), automatic production etc to ensure product quality
consistency.

e) Testability. Established a series of complete testing methods, testing standards, a variety of
testing equipment and instrument etc, It can detect and identify the PCB quality and service life.

f) Can be assembled. PCB products not only facilitate the standardized assembly of various
components,but also can be automated, large-scale mass produced. At the same time, PCB and
its assembled components can be also assembled to form a larger component, system, until the
whole machine.

g) Maintainability. As PCB products and various components of the assembly are standardized
design and large-scale production, and thus, these assembled components are standardized.
So once the system fails, it can be fast, convenient and flexible replaced, quickly restore the
service system.

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
