PCB Circuit Cem-1 Material Single Side Board with HASL Finish
| Price: |
US $ 1.01/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-131-V1.31 |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Hot Air Soldering Leveling(HASL),Lead Free |
| Solder Mask Color: |
Gloss Green, Taiyo Psr-2000gt600d |
| Colour Of Component Legend: |
White, Taiyo Ijr-4000 MW300 |
| Minimum Trace And Space: |
6 Mil/6 Mil |
| Minimum / Maximum Holes: |
0.5/5.5mm |
| Board Plating: |
0.0029" |
| Outline Dimension: |
0.0059" |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
CEM-1 |
| Material: |
Fiberglass Epoxy |
Product Description
Single Sided Printed Circuit Board CEM-1 Material 1.6mm Thick HASL Finish With Low Price PCB For
Switch

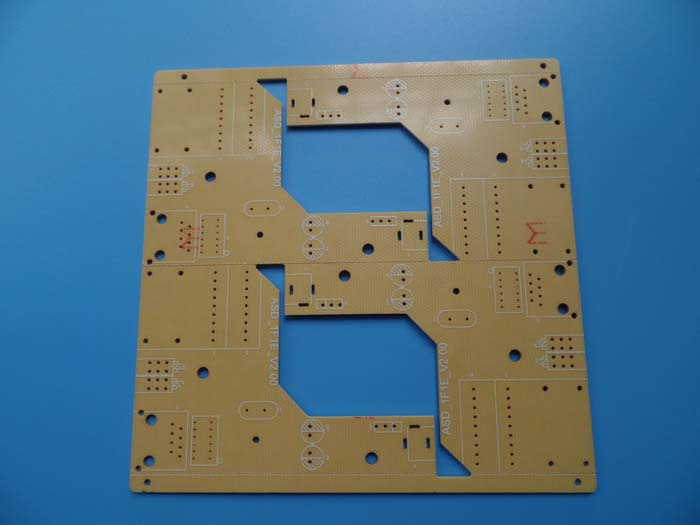

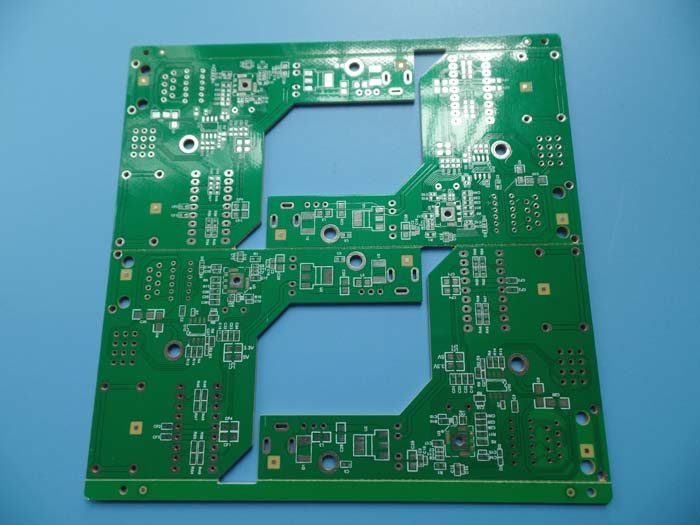

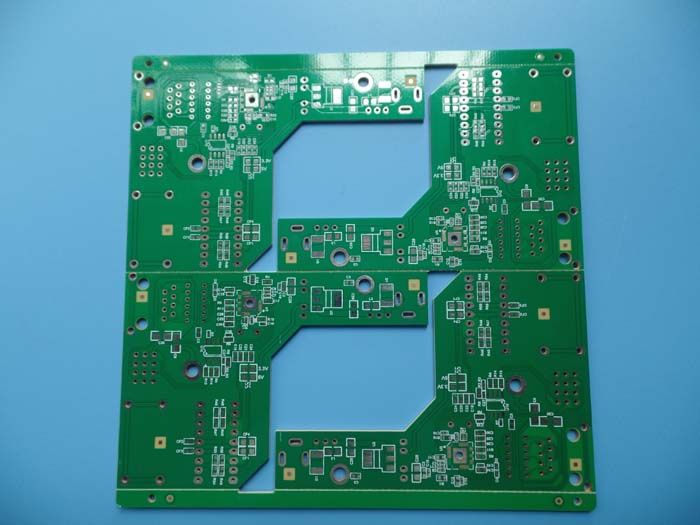

Commodity IntroductionThis is a type of CEM-1 PCB for the application of switch. It's a single sided layer board at 1.6mm thick. The
base laminate is from KB, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 153 x 142mm=4PCS |
| BOARD TYPE | |
| Number of Layers | Single sided PCB, 1 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | Copper ------- 35 um(1 oz) TOP layer |
| CEM-1 1.5mm |
| TECHNOLOGY | |
| Minimum Trace and Space: | 6mil/6mil |
| Minimum / Maximum Holes: | 0.5/5.5mm |
| Number of Different Holes: | 9 |
| Number of Drill Holes: | 91 |
| Number of Milled Slots: | 2 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | CEM-1 1.5mm, Tg>110ºC |
| Final foil external: | 1 oz |
| Final foil internal: | 0 oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Hot air soldering leveling(HASL),lead free, Sn>=2.54 µm |
| Solder Mask Apply To: | Bottom, 12micron Minimum |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, Taiyo IJR-4000 MW300 |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Non Plated Through Hole(NPTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Switches, AC/DC Power Adapter
Solar Panel Inverter
Adsl Wireless Router
VFD Drives
Portable Wireless Router |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Frequently Asked QuestionsDo you sell cheap FR-1, CEM-1 PCB?
Yes, we just offer single sided PCB made of FR-1 and CEM-1. We also use punching
tool for the contour for the mass production.Bicheng PCB, the quality is more stable.10-year gold medal customers recommend you to use Bicheng PCB. A. Codec Tieline has won numerous awards for innovation in technology and thousands of
customers around the world rely on reliable broadcast solutions. High quality circuit board is
indispensable. B. Telemetry UHS supplies innovative products and solutions to enable the transport of diverse telecommunications products over broadband networks. A stable and good printed circuit board
plays an important role. Don't just take our word for it. Read what Richard and Olaf have to say about Bicheng PCB. "Kevin,Received and tested the boards - thanks very much. These are perfect, exactly what we needed. RgdsRich " "Hi Ruth,I got the PCB today, and they are just perfect. Thank you for that.I will memory your for my next PCB order. Please stay a little patience, my next order is coming soon.Kind regards from HamburgOlaf " Email us today, we'll respond you within 8 hours. Still slow, take a phone and call us today.
