PCB Circuit Double Sided Mass Production 1.6mm Thick Board
| Price: |
US $ 0.40/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-11288-V1.6 |
| Copper Thick: |
1.22 Oz |
| Board Thick: |
1.6mm |
| Surface Finish: |
HASL Lead Free |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Mininum Trace (Mil): |
9.8 Mil |
| Minimum Gap(Mil): |
7.0 Mil |
| RoHS Required: |
Yes |
| Thickness of Solder Mask: |
13 Um |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
PCB Circuit Board Manufacturer Double Sided Mass Production ITEQ FR-4 377
Commodity Introduction

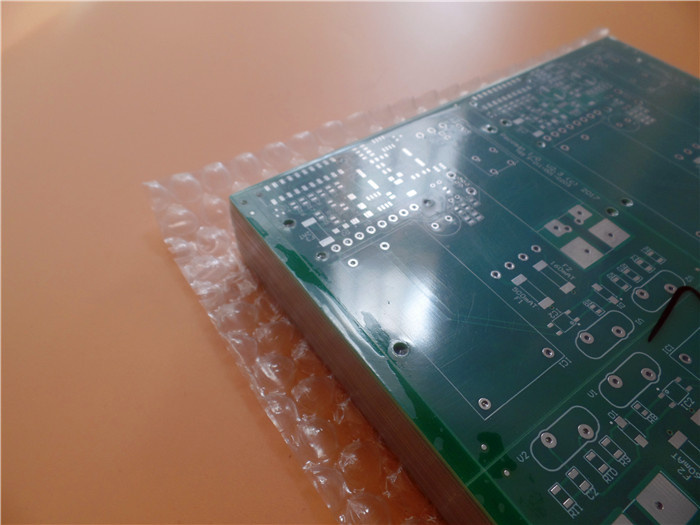

This is a type of Doulbe sided PCB board at 1.6mm thick for the application of I/O systems with
HASL pad finish. The base laminate is from ITEQ, Green solder mask from Taiyo and White

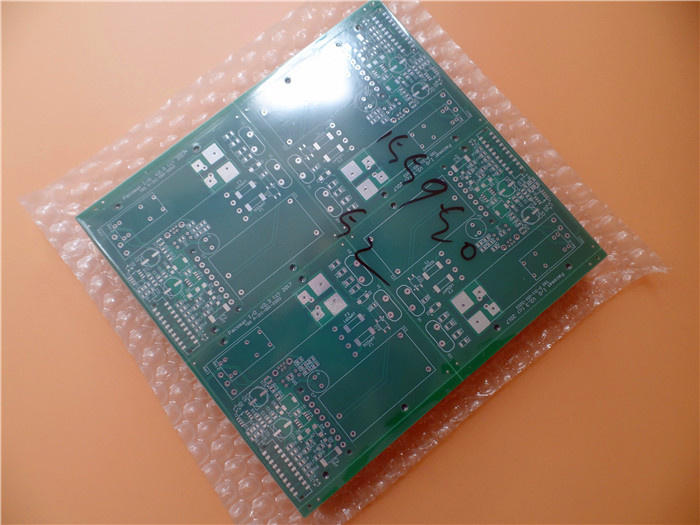

silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each
20 panel boards are packed separately.
Parameter & Data Sheet| Number of Layers | 2 |
| Board Type | Double Sided PCB |
| Board Thickness | 1.56-1.65 mm |
| Board Material | FR-4 IT158 |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 150ºC |
| |
| PTH Cu thickness | ≥20 um (See hole wall details) |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 42.76 um (1.22oz) |
| |
| Solder Mask Type and Model No. | LPSM, PSR-2000GT600D |
| Solder Mask Supplier | TAIYO |
| Solder Mask Colour | Green |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 13um |
| |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 2 |
| |
| Mininum Trace (mil) | 9.8 mil |
| Minimum Gap(mil) | 7.0 mil |
| |
| Surface Finish | HASL Lead free |
| RoHS Required | Yes |
| Warpage | 0.25% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
Microsection Hole Wall (um)| Hole Wall Cu Thickness | ≥20 um | Hole Wall Cu Roughness | ≤25.4 um |
| NO. | A | B | C | D | E | F | AVE |
| 1 | 26.003 | 24.803 | 24.863 | 26.503 | 25.783 | 25.413 | 25.561 |
| 2 | 25.434 | 24.234 | 24.294 | 25.934 | 25.214 | 24.844 | 24.992 |
| 3 | 26.938 | 25.738 | 25.798 | 27.438 | 26.718 | 26.348 | 26.496 |
Outline dimension Unit: mm| NO. | Required Dimension
(toerance) | Actual dimension |
| 1 | 178.00 | ±0.15 | 177.96 | 178.02 | 178.04 | 178.04 |
| 2 | 190.00 | ±0.15 | 189.99 | 189.91 | 189.97 | 190.03 |
Hole Size and Slot Dimension (mm)| NO. | Requerment Dimension
(tolerance) | PTH/NPT | Actual dimension |
| 1 | 0.600 | ±0.076 | Y | 0.600 | 0.575 | 0.625 | 0.600 |
| 2 | 0.800 | ±0.076 | Y | 0.800 | 0.775 | 0.825 | 0.800 |
| 3 | 1.000 | ±0.076 | Y | 1.000 | 0.975 | 1.025 | 1.000 |
| 4 | 1.100 | ±0.076 | Y | 1.100 | 1.075 | 1.125 | 1.100 |
| 5 | 1.200 | ±0.076 | Y | 1.200 | 1.175 | 1.225 | 1.200 |
| 6 | 1.300 | ±0.076 | Y | 1.300 | 1.275 | 1.325 | 1.300 |
| 7 | 1.500 | ±0.076 | Y | 1.500 | 1.475 | 1.525 | 1.500 |
| 8 | 2.050 | ±0.076 | Y | 2.050 | 2.025 | 2.075 | 2.050 |
| 9 | 2.000 | ±0.076 | Y | 2.000 | 1.975 | 2.025 | 2.000 |
| 10 | 1.750 | ±0.05 | N | 1.750 | 1.725 | 1.775 | 1.750 |
| 11 | 2.400 | ±0.05 | N | 2.400 | 2.375 | 2.425 | 2.400 |
| 12 | 3.200 | ±0.05 | N | 3.200 | 3.175 | 3.225 | 3.200 |
