PCB Circuit Electrolytic Gold 1.6mm Thick Double Layer Board
| Price: |
US $ 0.40/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
BIC1312R3.8 |
| Finished Thickness: |
1.57mm |
| Pth Cu Thickness: |
22.13 Um |
| Inner Layer Cu Thickness: |
1/1 Oz |
| Surface Cu Thickness: |
45.1 Un |
| S/M Thickness: |
26.93um |
| Trace Width (mm): |
0.195mm |
| Spacing (mm): |
0.199mm |
| Warp And Twist: |
0.26% |
| V-Cut Thickness: |
0.41mm |
| Surface Finish: |
Immersion Gold |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
PCB circuit Electrolytic Gold PCB Gold PCB 1.6mm Thick Double Layer PCB

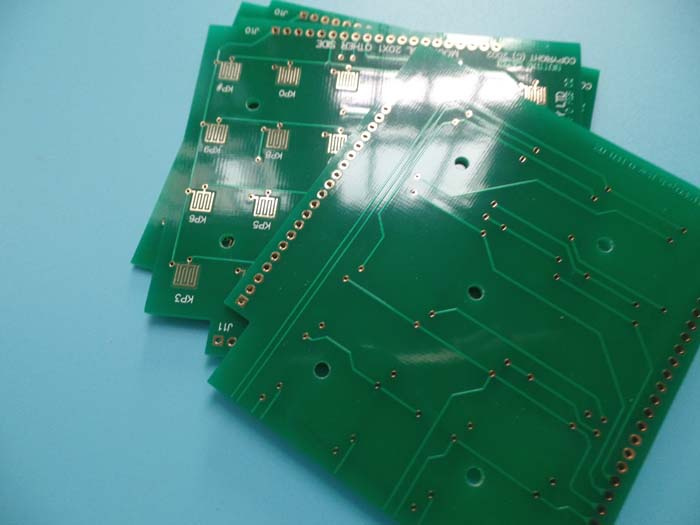

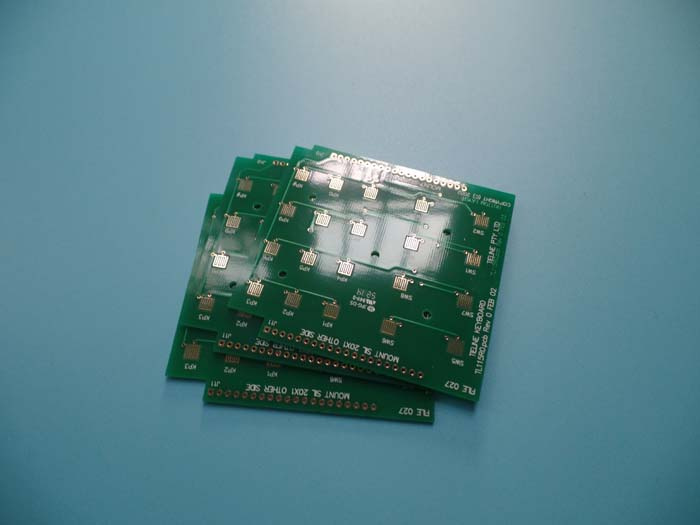

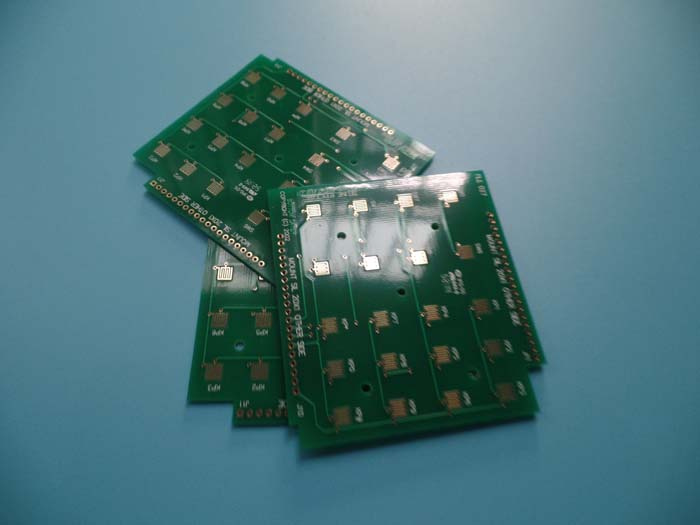

Commodity IntroductionThis is a type of FR-4 PCB for the application of CODEC. It's a 2 layer board at 1.57mm thick.
The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC
6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| Item | Description | Requirement | Actual |
|
| Laminate | Laminate Type | FR4 TG>=170:
CTI:175V-249V | FR4 TG>=170:
CTI:
175V-249V |
| Supplier | / | / |
| Tg | TG >=170 | TG >=170 |
| Finished thickness | 1.6+/-10% MM | 1.57 MM |
| Plating Thickness | PTH Cu thickness | >20 um | 22.13um |
Inner layer Cu
Thickness | 1/1 OZ | 1/1 OZ |
| Surface Cu thickness | 35 um | 45.1 um |
| Solder Mask | Material type | LP-4G G-05 | LP-4G G-05 |
| Supplier | Nan Ya | Nan Ya |
| Color | Green | Green |
| Single / both sides | Both Sides | Both Sides |
| S/M thickness | >=10.0 um | 26.93 um |
| 3M tape test | NO Peel Off | no peel off |
| Legend | Material type | S-380W | S-380w |
| Supplier | Tai yo | Tai yo |
| Color | White | White |
| Location | Both Sides | Both Sides |
| 3M tape test | No peel off | no peel off |
| Circuit | Trace Width (mm) | 0.203+/-20%mm | 0.195mm |
| Spacing (mm) | 0.203+/- 20%mm | 0.199 mm |
| Identification | UL mark | 94V-0 | 94V-0 |
| Company Logo | QM2 | QM2 |
| Date code | 08 17 | 08 17 |
| Mark location | CS | CS |
Surface
Treatment | Electrolytic
Gold | Nickel | 100u" | 112u" |
| Gold | 1u" | 1.11u" |
| Reliabilty Tests | Thermal shock test | 288±5ºC,10sec,
3 cycles | NO Discolor ,
NO Delamination |
| solder abllity test | 245±5ºC | 100% wetting |
| Function | Electrioal Test | 100% | pass |
| Standard | IPC-A 600H class 2,
IPC_6012C CLASS 2 | 100% | Pass |
| Appearance | Visual inspection | 100% | Pass |
| warp and twist | <= 0.75% | 0.26% |
| Others | V-Cut thickness | 0.4±0.1 mm | 0.41mm |
| Angle | 30+/- 5 | 30º |
Now let's look at what Bicheng PCB can help you.- Various kinds of PCB products
- Double sided PCB
- Multilayer PCB up to 32 layers
- FR-4 PCB (Tg130, Tg170)
- High frequency PCB (RO4350B, RO4003C)
- Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
- Flexible PCB
Multiple technology on PCB- Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
- Impedance controlled PCB
- Heavy copper PCB
- Hybrid material PCB
Many discount policies for new customers- SMT stencil foil, free of charge
- Prototype shipping cost, free of charge
- Prototype test, free of charge
- PCB panelization, free of charge
High quality PCB services- Prototype PCB and production PCB
- Quick turn-around prototypes
- Door to door logistic service
- Hassle-free, one-to-one service
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
