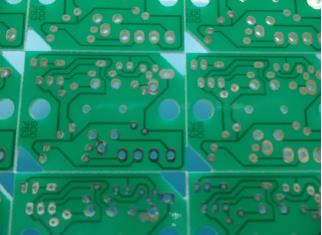

PCB Circuit Heavy Copper 3 oz with Single Sided Board
| Price: |
US $ 1.23/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-261-V2.61 |
| Finished Thickness: |
1.593mm |
| Surface Cu Thickness: |
107 Um |
| Surface Finish: |
Lead- Free HASL |
| Solder Mask: |
Blue |
| Legend: |
White |
| Trace Width (mm): |
0.41mm |
| Spacing (mm): |
0.375mm |
| Thermal Shock Test: |
No Discolor , No Delamination |
| Solder Abllity Test: |
100% Wetting |
| Ipc-a 600h Class 2, Ipc 6012c Class 2: |
100%,Pass |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
Product Description
Single sided PCB 3oz copper weight 1.5mm Thick With Blue Solder Mask HASL Lead free in Power
Amplifier
Commodity Introduction This is a type of FR-4 PCB for the application of Power Amplifier. It's a single sided layer board at 1.6mm thick.
The base laminate is from ShengYi, Solder mask and silkscreen from ONSTATIC and Taiyo. It's fabricated per

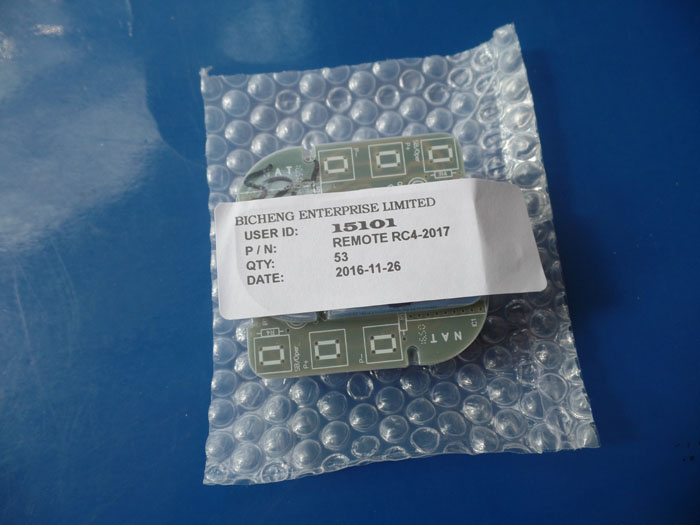

IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| Item | Description | Requirement | Actual |
| Laminate | Laminate Type | FR4:CTI:175V-249V | FR4:CTI:175V-249V |
| Supplier | SHENGYI | SHENGYI |
| Tg | TG >135 | TG >135 |
| Finished thickness | 1.6+/-10% MM | 1.593MM |
| Plating Thickness | PTH Cu thickness | / | / |
| Inner layer Cu Thickness | / | / |
| Surface Cu thickness | 105um | 107 um |
| Solder Mask | Material type | R-500 BL | R-500 BL |
| Supplier | ONSTATIC | ONSTATIC |
| Color | Blue | Blue |
| Single / both sides | TS Sides | TS Sides |
| S/M thickness | >= 10.0 um | 24.30 um |
| 3M tape test | NO Peel Off | No peel off |
| Legend | Material type | S-380W | S-380W |
| Supplier | Taiyo | Taiyo |
| Color | White | White |
| Location | As per drawing | OK |
| 3M tape test | NO Peel Off | No peel off |
| Circuit | Trace Width (mm) | 0.4 | 0.41 |
| Spacing (mm) | 0.38 | 0.375 |
| Identification | UL mark | As requirement | OK |
| Company Logo | As requirement | OK |
| Date code | WWYY | WWYY |
| Mark location | CS | CS |
| Surface Finish | Lead- free HASL | 1-40 um | 5.15 um |
| Reliabilty Tests | Thermal shock test | 288±5ºC,
10sec ,
3 cycles | NO Discolor,
NO Delamination |
| solder abllity test | 23±5ºC | 100% Wetting |
| Function | Electrioal Test | 100% | pass |
| Standard | IPC-A 600H class 2,
IPC_6012C CLASS 2 | 100% | Pass |
| Appearance | Visual inspection | 100% | Pass |
| warp and twist | <= 0.75% | 0.21% |
| Others | V-Cut thickness | / | / |
| Angle | / | / |
Outline dimension unit:(mm, tolerance +/-0.13mm)| No | Required | Actual Dimension |
| 1 | 284.00 | 284.13 | 284.03 | 284.06 | 284.06 | 284.03 |
| 2 | 97.00 | 97.11 | 97.03 | 97.05 | 97.05 | 97.02 |
Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)| No | Required | PTH/NPTH | Actual Dimension |
| 1 | 0.65 | N | 0.650 | 0.700 | 0.675 | 0.700 |
| 2 | 0.991 | N | 0.975 | 1.025 | 1.025 | 0.950 |
| 3 | 1.295 | N | 1.325 | 1.325 | 1.275 | 1.325 |
| 4 | 1.397 | N | 1.425 | 1.400 | 1.400 | 1.375 |
| 5 | 2.997 | N | 3.025 | 3.025 | 3.000 | 2.975 |
Learn PCB and Buy PCBPCB Classification --- Single Sided PCB
Classification by layers: It's divided into a single sided PCB, double sided PCB and multilayer PCB. The Common multilayer board is generally 4 layers or 6 layers, complex multilayer board up to dozens of layers.
Single Sided Boards are the most basic parts of PCB. Components are concentrated on one side, the wire track
is focused on the other side (SMD components and wires for the same side, then the other side of the through-hole components). Because the wire appears only in one side, so this kind of PCB is called single sided.
It has many strict restrictions in the design on the line (because of only one side, each wire must not cross and goes around its own path), so this type of circuit board is used at the early stage of circuit.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
