| Prod Model: |
BIC-183-V1.83 |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Hot Air Soldering Leveling(HASL),Lead Free |
| Solder Mask Color: |
Gloss Green |
| Legend Color: |
White |
| Minimum Trace And Space: |
7 Mil/9.2 Mil |
| Minimum / Maximum Holes: |
0.4/6.44mm |
| Test: |
100% Electrical Test |
| Via: |
Non Plated Through Hole(Npth) |
| Board Plating: |
0.0030" |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
Product Description

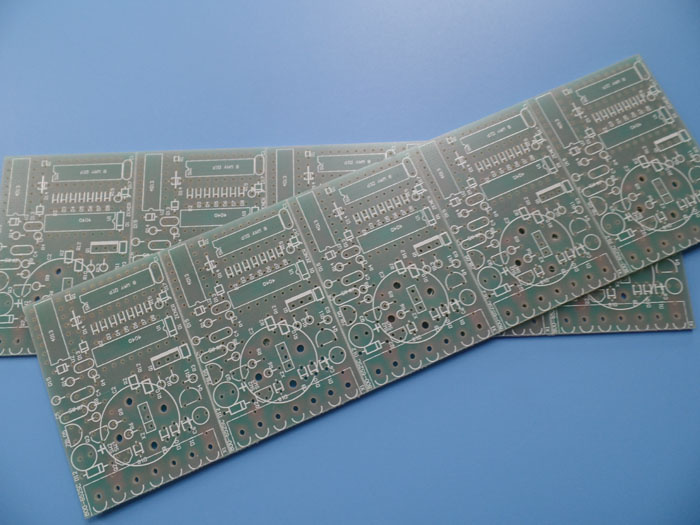

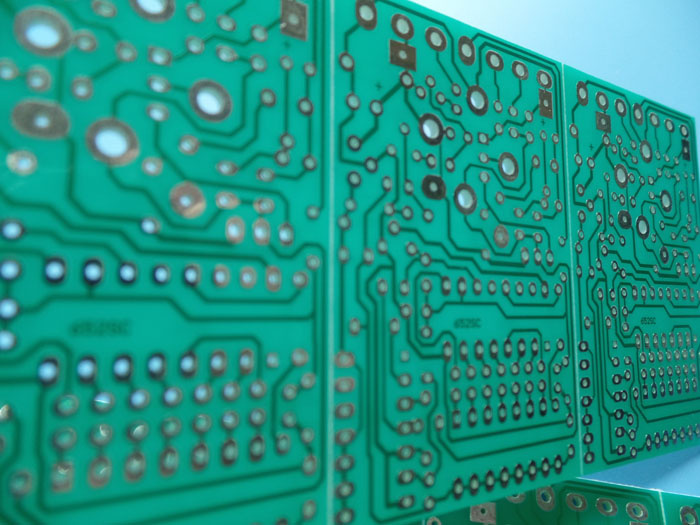

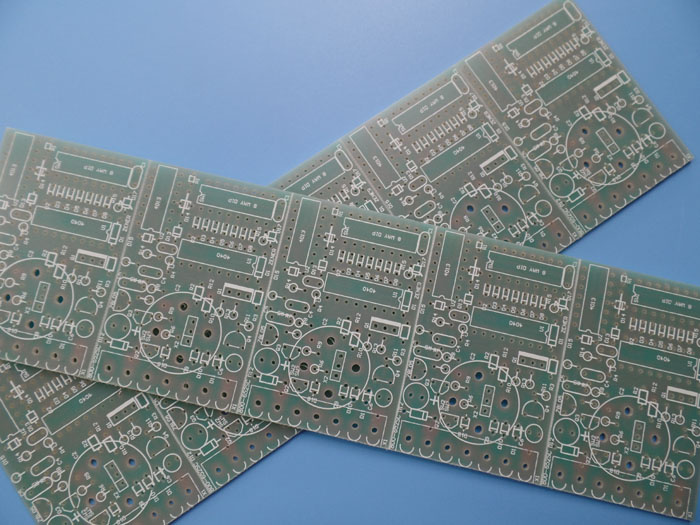

Single Sided Printed Circuits FR-4 1.6mm Thick 1oz Copper HASL Lead Free Applied In
WirelessSpeaker
Commodity IntroductionThis is a type of FR-4 PCB for the application of Wirekess Speaker. It's a single sided layer
board at 1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from
Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or
panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 189.3x 69.4mm=5PCS |
| BOARD TYPE | |
| Number of Layers | Single sided PCB, 1 layer PCB |
| Surface Mount Components | no |
| Through Hole Components | YES |
| LAYER STACKUP | Copper ------- 35um(1oz) TOP layer |
| FR-4 1.5 mm |
| TECHNOLOGY | |
| Minimum Trace and Space: | 7mil/9.2mil |
| Minimum / Maximum Holes: | 0.4/6.44mm |
| Number of Different Holes: | 6 |
| Number of Drill Holes: | 83 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 1.5mm, Tg>130ºC |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Hot air soldering leveling(HASL),lead free, Sn>=2.54µm |
| Solder Mask Apply To: | Bottom, 12micron Minimum |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | Bottom |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | No special requirement |
| VIA | Non Plated Through Hole(NPTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Wireless Speakers
TV Antenna
GPS Tracker
CCTV
USB Hub
Amplifier |
TYPE OF ARTWORK
TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Frequently Asked Questions
1. What kind of file format do you accept? only gerber files? aceept eagle .brd files?
Gerber files are our first choice. We also accept .PCB files and .PCBDOC files. We currently do
not use.brd files.
2. What information is required for a quote?
Please send us your gerber files, PCB fabrication notes and panel drawing data when you request
for quote. This will give you an accurate price in a short time.
Acceptable document format
Gerber file RS-274-X format or RS-274-D with aperture list and drill file.
Protel .PCB files
PAD2000
ORCAD
POWERPCB
Genisis2000
