PCB Circuits Double Sided Board 2.0mm HASL Lead Free

Name: PCB Circuits Double Sided Board 2.0mm HASL Lead Free
Brand: all-electronics-online.com
SKU: 827519165
Availability: InStock
Rating: 4.8 (39 reviews)

Price:	US $ 3.99/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-14599-R3.0
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Processing Technology:	HASL Lead Free
Base Material:	Copper Clad Laminate
Brand:	Bicheng

Product Description

Double Sided PCB 2.0mm PCB circuits HASL Lead Free PCB 370

Commodity Introduction

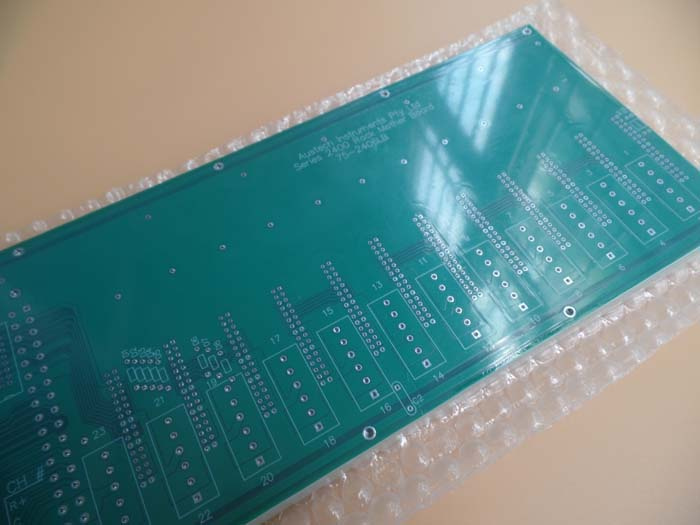

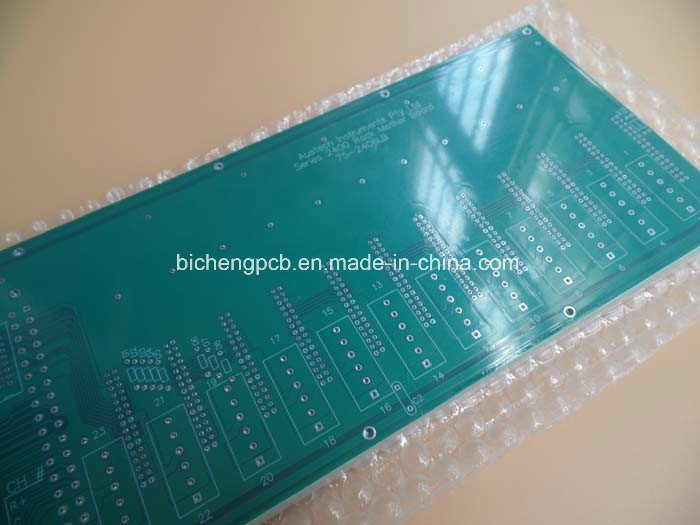

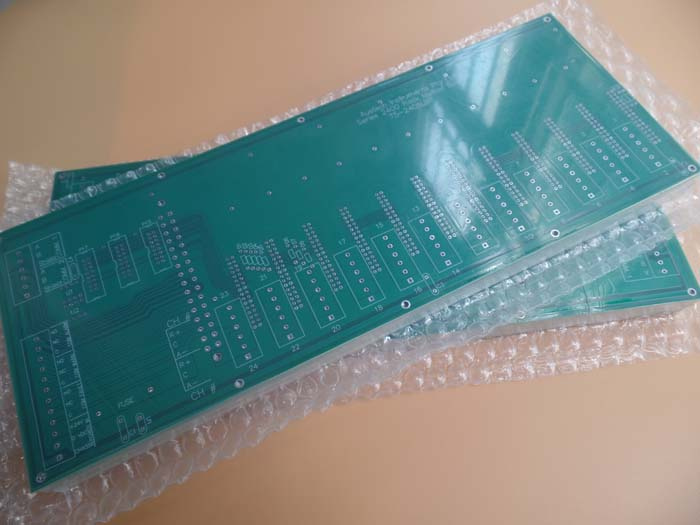

This is a type of 2 layer 2.0mm PCB board for the application of Motor Controller with HASL pad finish. The base laminate is from ITEQ, Green Solder mask from Kuangshun and White silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panel boards are packed separately..

Parameter & Data Sheet

Number of Layers	2
Board Type	Double Sided PCB
Board Thickness	2.0mm +/-0.2
Board Material	FR-4
Board Material Supplier	ITEQ
Tg Value of Board Material	135ºC

PTH Cu thickness	≥20 um (See hole wall details)
Inner Iayer Cu thicknes	N/A
Surface Cu thickness	70 um (2oz)

Solder Mask Type and Model No.	LPSM, PSR-2000GT600D
Solder Mask Supplier	TAIYO
Solder Mask Colour	Green
Number of Solder Masks	2
Thickness of Solder Mask	13um

Type of Silkscreen Ink	IJR-4000 MW300
Supplier of Silkscreen	TAIYO
Color of Silkscreen	Whie
Number of Silkscreen	2

Mininum Trace (mil)	10 mil
Minimum Gap(mil)	9 mil

Surface Finish	HASL Lead free
RoHS Required	Yes
Warpage	0.25%

Thermal Shock Test	Pass, 288±5ºC,10 seconds, 3 cycles. No delamination, no blistering.
Solderablity Test	Pass, 255±5ºC,5 seconds Wetting Area Least 95%
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6012C Class 2

Microsection Hole Wall (um)

Hole Wall Cu Thickness			≥20 um	Hole Wall Cu Roughness			≤25.4 um
NO.	A	B	C	D	E	F	AVE
1	26.057	24.857	24.917	26.557	25.837	25.467	25.615
2	25.422	24.222	24.282	25.922	25.202	24.832	24.980
3	25.258	24.058	24.118	25.758	25.038	24.668	24.816

Outline dimension Unit: mm

NO.	Required Dimension (toerance)		Actual dimension
1	339.73	±0.15	339.71	339.68	339.76	339.63
2	130.45	±0.15	130.56	130.45	130.53	130.51

Hole Size and Slot Dimension (mm)

NO.	Requerment Dimension (tolerance)		PTH/NPT	Actual dimension
1	1.000	±0.075	Y	1.000	0.975	1.025	1.000
2	1.150	±0.075	Y	1.150	1.125	1.175	1.150
3	1.400	±0.075	Y	1.400	1.375	1.425	1.400
4	2.800	±0.075	Y	2.800	2.775	2.825	2.800
5	3.200	±0.075	Y	3.200	3.175	3.225	3.200

Acceptable document format
Gerber file RS-274-X format or RS-274-D with aperture list and drill file.
Protel .PCB files
PAD2000
ORCAD
POWERPCB
Genisis2000
