PCB Circuits with SMD Component Assembled

Name: PCB Circuits with SMD Component Assembled
Brand: all-electronics-online.com
SKU: 826585395
Availability: InStock
Rating: 4.9 (116 reviews)

Price:	US $ 9.98/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-1116-V3
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Processing Technology:	PCB Assembly
Brand:	Bicheng

Product Description

PCB assembly SMD component assembly Through holes assembly Service 360

Commodity Introduction

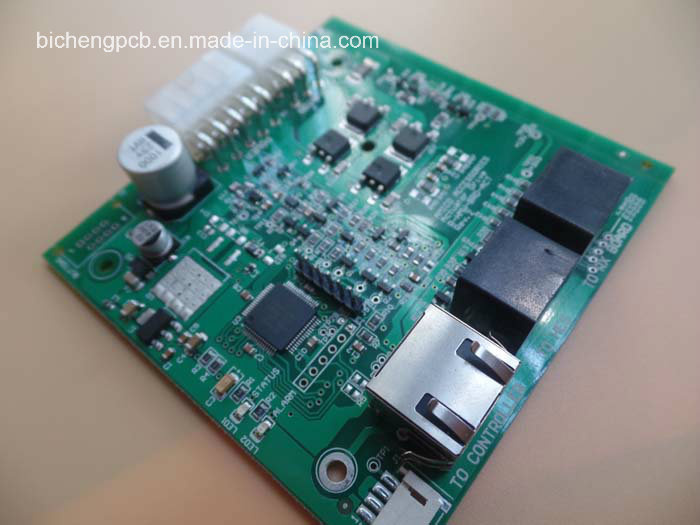

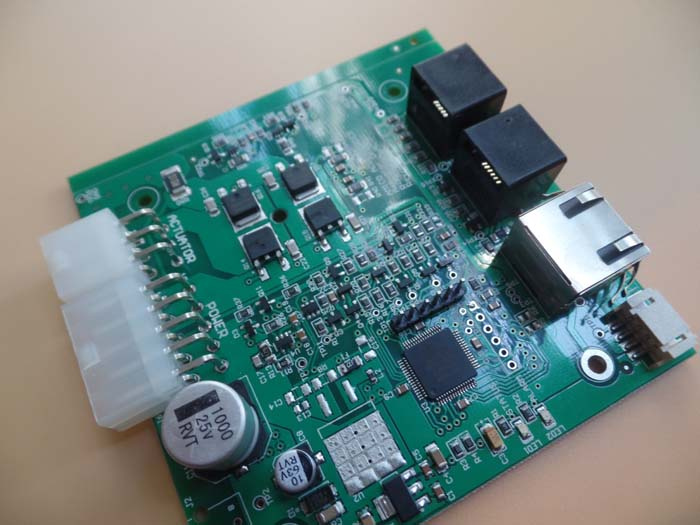

This is a type of PCB assembly job for the application of actuator control board. It's composed of SMD assembly and through hole assembly. It's fabricated per IPC-A-610 using supplied Gerber data and bill of material (BOM). The support board is a 4 layer board. SMD components and through holes components are on the same sides.

Design For Manufacturability ( 1)
This manufacturability guide provides an overview of various areas that printed circuit board designer may take into consideration on the fabrication possibility, manufacturing cost and reliability of their products. This DFM is divided into 5 parts for our readers. This is the section I.

Serial NO.	Procedure	Item	Manufacturing capability
			Large volume (S<100 m²)	Middle volume (S<10 m²)	Prototype(S<1m²)
			Large volume (S<100 m²)	Middle volume (S<10 m²)	Prototype(S<1m²)
1	Inner layer (18um, 35um, 70um etc are finished copper. If not mentioned copper, finished 1oz is the default value )	Min.isolation of layers	0.1mm	0.1mm	0.06mm
2		Min.track and spacing	5/5mil(18um)	4/4mil(18um)	3/3.5mil(18um)
3			5/5mil(35um)	4/4mil(35um)	3/4mil(35um)
4			7/9mil(70um)	6/8mil(70um)	6/7mil(70um)
5			9/11mil(105um)	8/10mil(105um)	8/9mil(105um)
6			13/13mil(140um)	12/12mil(140um)	12/11mil(140um)
7		Min.distance from drill to conductor	4 Layer 10mil,6 layer 10mil,8-12 layer 12mil	4 layer 8mil,6 layer 8mil,8-12 layer 10mil,14-20 layer 14mil,22-32 layer 18mil	4 layer 6mil,6 layer 6mil,8-14 layer 8mil,16-22 layer 12mil,24-32 layer 14mil
8		Min.width of annular ring on inner layer	4 Layer 10mil(35um),≥6 Layer 14mil(35um)	4 Layer 8mil(35um),≥6 layer 12mil(35um)	4 Layer 6mil(35um),≥6 Layer 10mil(35um)
9		Inner layer isolation ring width(Min)	10mil (35um)	8mil (35um)	6mil (35um)
10		Min.via pad diameter	20mil (35um)	16mil (35um)	16mil (35um)
11		Min. distance from board edge to conductor(no copper exposured)(inner layer)	14 mil(35um)	12 mil(35um))	8 mil(35um)
12		Maximum copper weight(Inner layer and outer layer)	3 OZ( 105 um )	4 OZ ( 140 um )	6 OZ( 210 um )
13		Core with different copper foil on both sides	/	18/35,35/70 um	18/35,35/70 um

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
