PCB Electronic Circuit Board Double Sided Warpage 0.32% Black Soldermask
| Price: |
US $ 0.38/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1344R3.4 |
| Surface Finish: |
Immersion Gold |
| Legend Color: |
No Required |
| Board Thick: |
1.6mm |
| Solder Mask Colour: |
Black |
| Thickness Of Solder Mask: |
14 Um |
| Copper Thick: |
1 Oz |
| Mininum Trace (Mil): |
5.8 Mil |
| Minimum Gap(Mil): |
5.2 Mil |
| RoHS Required: |
Yes |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

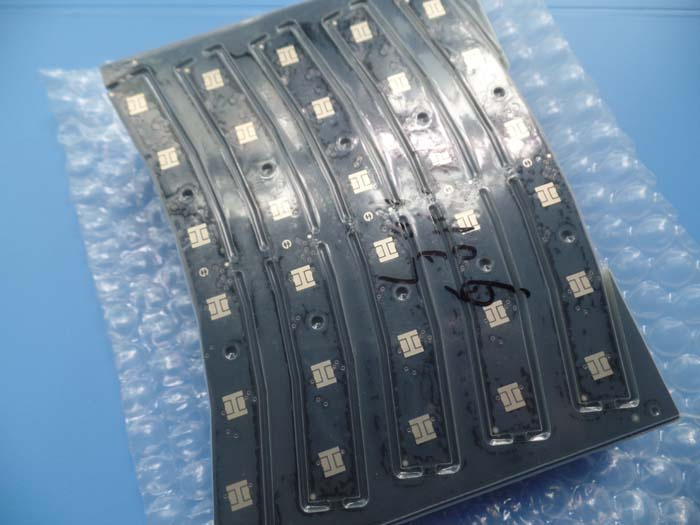

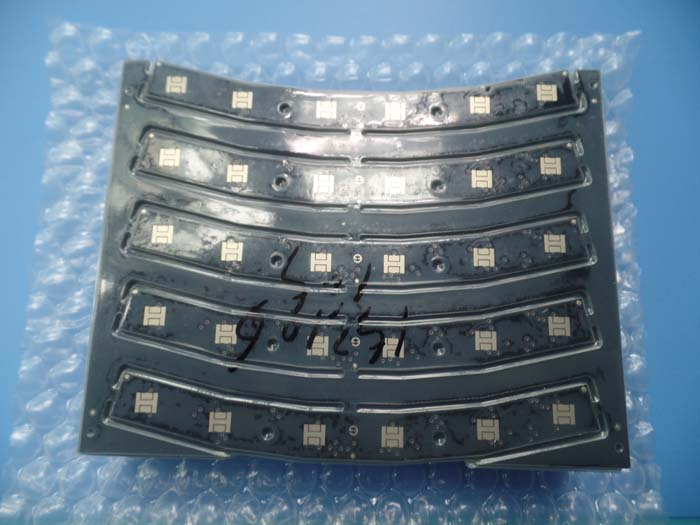

PCB Electronic Circuit Board Double Sided Warpage 0.32% Black soldermask
Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a 2 layer board at 1.6mm thick. The
base laminate is from ITEQ, Solder mask from Kuang Shun. It's fabricated per IPC 6012 Class 2
using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| Number of Layers | 2 |
| Board Type | Double sided PCB |
| Board Thickness | 1.6mm +/-0.16 |
| Board Material | FR-4 |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 135ºC |
| |
| PTH Cu thickness | ≥20 um (See hole wall details) |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 um (1oz) |
| |
| Solder Mask Type and Model No. | LPSM, KSM-S6189BK31 |
| Solder Mask Supplier | KUANGSHUN |
| Solder Mask Colour | Black |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 14um |
| |
| Type of Silkscreen Ink | n/a |
| Supplier of Silkscreen | n/a |
| Color of Silkscreen | n/a |
| Number of Silkscreen | n/a |
| |
| Mininum Trace (mil) | 5.8 mil |
| Minimum Gap(mil) | 5.2 mil |
| |
| Surface Finish | Immersion gold, 0.025u" gold over 4.15u" nickel |
| RoHS Required | Yes |
| Warpage | 0.32% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles. No delamination,
no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
Microsection Hole Wall (um)| |
| NO. | A | B | C | D | E | F | AVE |
| 1 | 26.945 | 25.745 | 25.805 | 27.445 | 26.725 | 26.355 | 26.503 |
| 2 | 26.342 | 25.142 | 25.202 | 26.842 | 26.122 | 25.752 | 25.900 |
| 3 | 24.806 | 23.606 | 23.666 | 25.306 | 24.586 | 24.216 | 24.364 |
Outline Dimension Unit:mm| NO. | Required Dimension (toerance) | Actual dimension |
| 1 | 140.26 | ±0.15 | 140.34 | 140.35 | 140.28 | 140.31 |
| 2 | 110.40 | ±0.15 | 110.37 | 110.31 | 110.51 | 110.34 |
PCB History
The creator of printed circuit board is Austrian engineer Paul Eisler. He invented the printed circuit
as part of a radio set while working in England around 1936. In 1943, The USA began to use the
technology on military radio. In 1948, the USA released the invention for commercial use. Since
the mid-1950s, printed circuits became commonplace in consumer electronics and began to be
widely used.
Before PCB, the interconnection between the electronic components is relying on the wires directly
connected to complete. Nowadays, only in the laboratory test wire exists. Printed circuit board in
the electronics industry has occupied the absolute control status.
