PCB Immersion Gold 4 Layer Circuit Board

Name: PCB Immersion Gold 4 Layer Circuit Board
Brand: all-electronics-online.com
SKU: 831347065
Availability: InStock
Rating: 4.6 (134 reviews)

Price:	US $ 2.46/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-459.1757-V1.1
Final Foil External:	1oz
Final Height Of PCB:	Green, Psr-2000gt600d, Taiyo Supplied. Peelabel Ma
Surface Finish:	Immersion Gold
Solder Mask Color:	Green, Psr-2000gt600d, Taiyo Supplied. Peelabel Ma
Colour Of Component Legend:	No Silkscreen Requried.
Minimum Trace And Space:	6.9mil/7.1mil
Minimum / Maximum Holes:	0.4/0.72mm
Test:	100% Electrical Test Prior Shipment
Outline Dimension:	0.0059" (0.15mm)
Board Plating:	0.0030" (0.076mm)
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Brand:	Bicheng

Product Description

Company Profile
BBicheng Enterprise Limited serves global clients from Shenzhen, China since 2003.
Variety of PCB technology to meet the market demands
HDI board
Heavy copper board
Hybrid material board
Blind via board
High frequency board
Metal core board

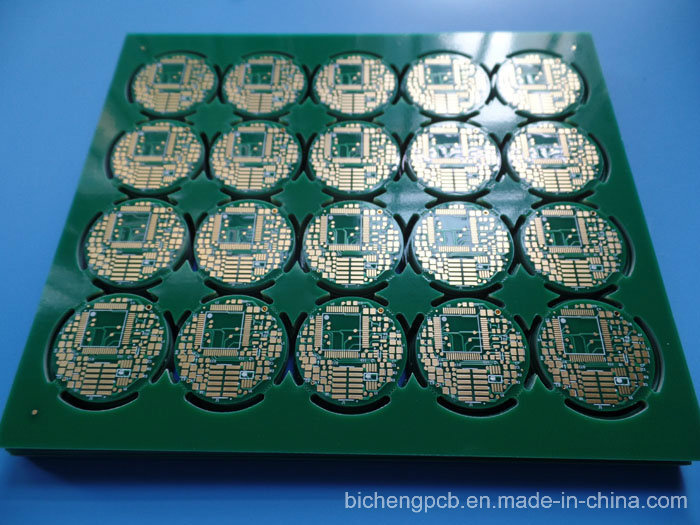

Immersion gold board
Multilayer board
Backplane board
Gold finger board

PCB Board

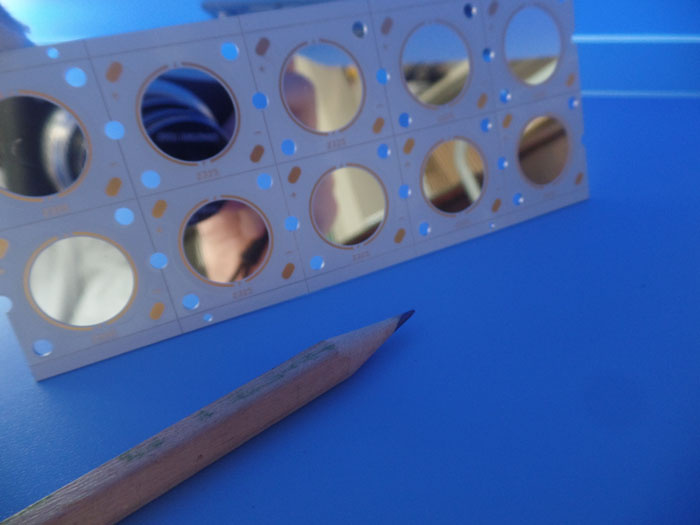

Aluminum PCB

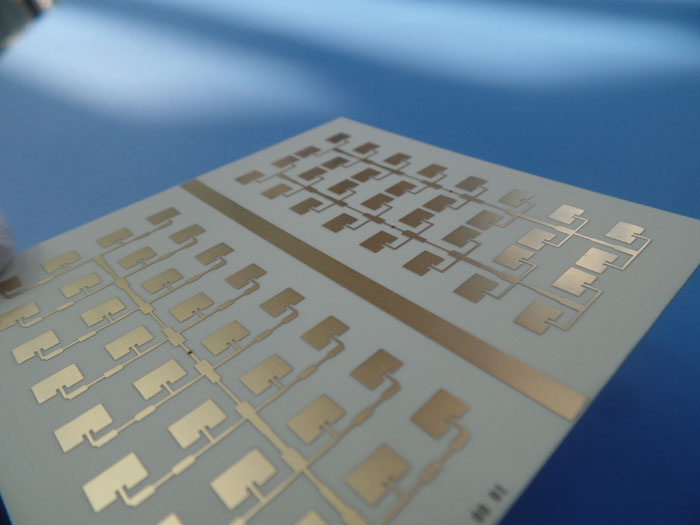

Microwave PCB

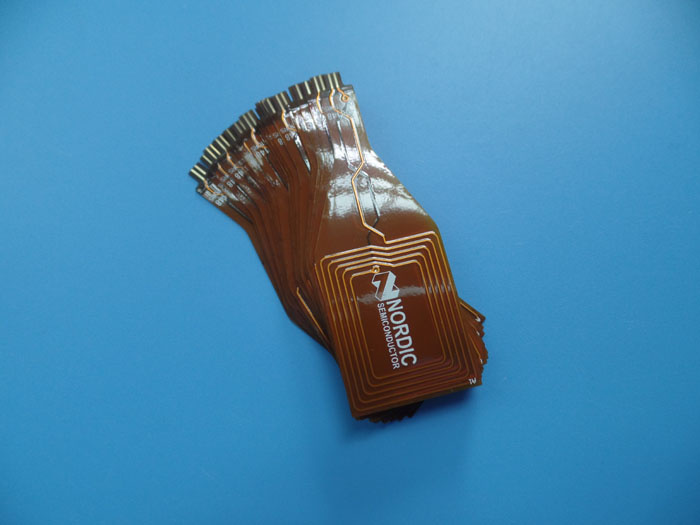

Flexible PCB

Frequently used Unit Conversion in PCB industry
1 inch= 25.4mm
1 inch= 1000mil
1 foot = 12 inch=0.3048 meter

1mm = 39.37mil
1mm = 1000µm
1µm = 39.37 micro inch

1oz = 35µm = 1.4mil = 305g/m²

1inch² = 0.0645dm² = 6.4516cm² = 645.16mm²
1ft² = 144 inch² = 0.09290304m² = 9.29dm²
1m² = 1549.9969 inch²

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
