PCB Immersion Silver Single Sided Copper Board 3 Oz

Name: PCB Immersion Silver Single Sided Copper Board 3 Oz
Brand: all-electronics-online.com
SKU: 822443665
Availability: InStock
Rating: 4.3 (73 reviews)

Price:	US $ 0.41/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC1297R3.8
Surface Finish:	Immersion Silver
Board Thick:	1.01mm
Solder Mask Color:	Green
Legend Color:	White
Copper Thick:	109.6um(3 Oz)
Warp-Twist:	0.35%
Min Line Width (Mil):	9.99 Mil
Min Line Spacing (Mil):	9.51 Mil
Test:	Electronic Test
Solvent Test:	Ok
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Dielectric:	FR-4
Material:	Fiberglass Epoxy

Product Description

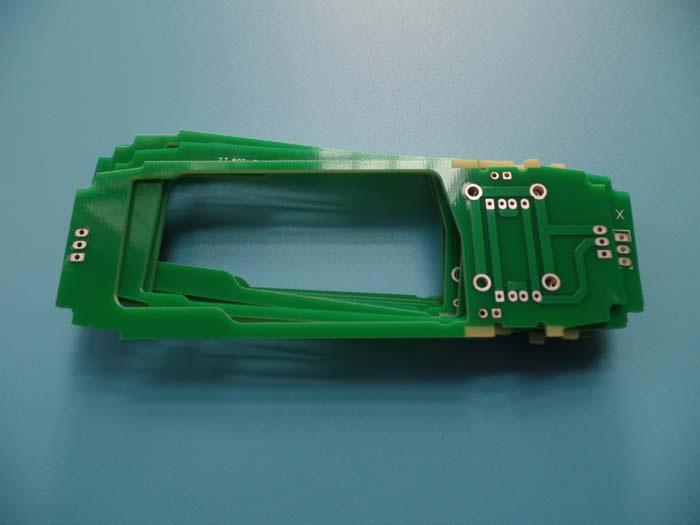

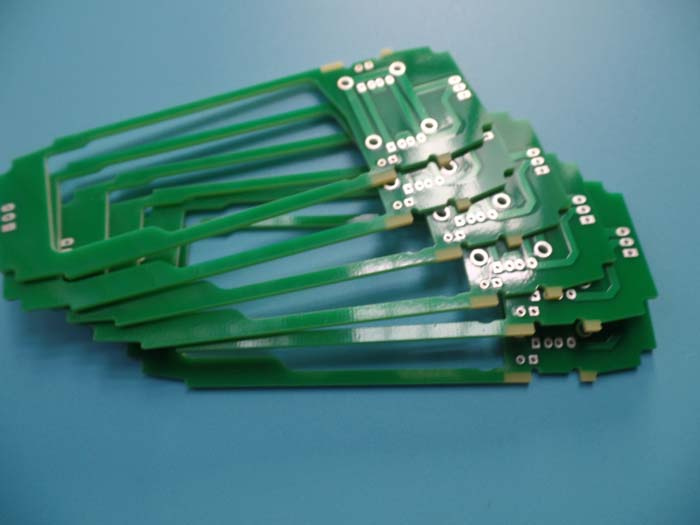

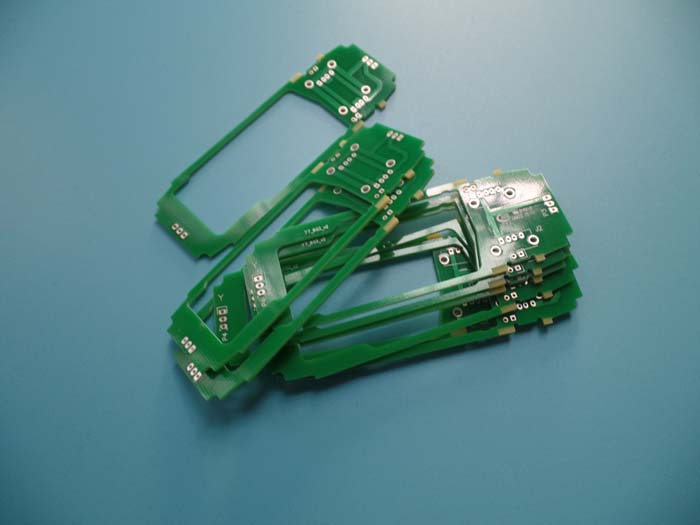

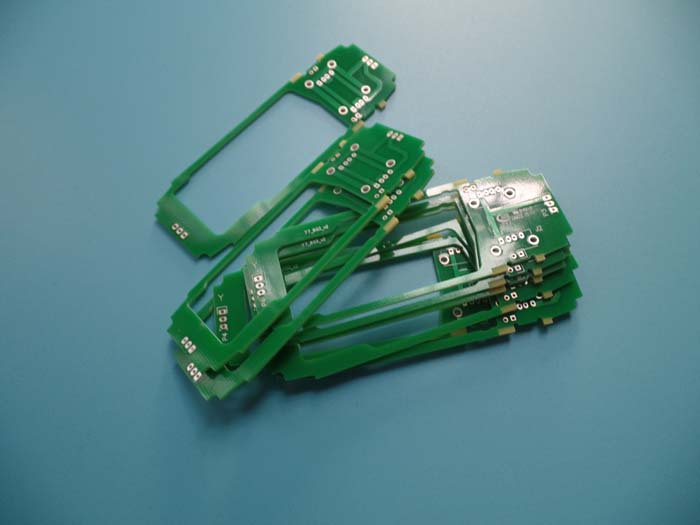

PCB Immersion Silver single sided copper board 3oz with 1.0 thick

Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a single layer board at 1.01mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated
per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed sep
-arately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4 TG175	RFR-4 TG175
	Supplier	ITEQ	ITEQ
	Board thickness	1.00±10% mm	1.01 mm
	Outer copper foil	>=105 um	109.6um
	Inner copper foil	/	/
	Warp-twist	<= 1.0%	0.35%
Legend	Type	KSM-388	KSM-388
	Color	White	White
	Location	CS & SS	CS & SS
Marking	Co.logo	YES	OK
	UL.logo	YES	OK
	Date code	WWYY	1117
	Marking form	Legend	Legend
	Location	SS	SS
Min line width (mil)		10	9.99
Min line spacing (mil)		9.5	9.51
Min ring width (mil)		NA	NA
Solder Mask	Type	KSM-S6189	KSM-S6189
	Color	Green	Green
	Thickness	>=10 um	16.8
	Pencil Test	4H	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treament	Immersion silver		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	/	/
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012B	OK
	Solderability Test	245ºC 5S 1 Cycle	OK
