Name: PCB Prototype Circuit Boards
Brand: all-electronics-online.com
SKU: 830869665
Availability: InStock
Rating: 4.7 (145 reviews)

Price:	US $ 1.2/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-450P. 1032-V2
Board Thick:	1.6mm
Surface Finish:	HASL Lead Free
Board Material:	Fr-4
Number Of Layer:	2
Mininum Trace (Mil):	7.9 Mil
Minimum Gap(Mil):	6 Mil
Color Of Silkscreen:	White
Thickness Of Solder Mask:	14 Um
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

PCB Circuit Board Dual Layers With HASL Lead Free

Commodity Introduction

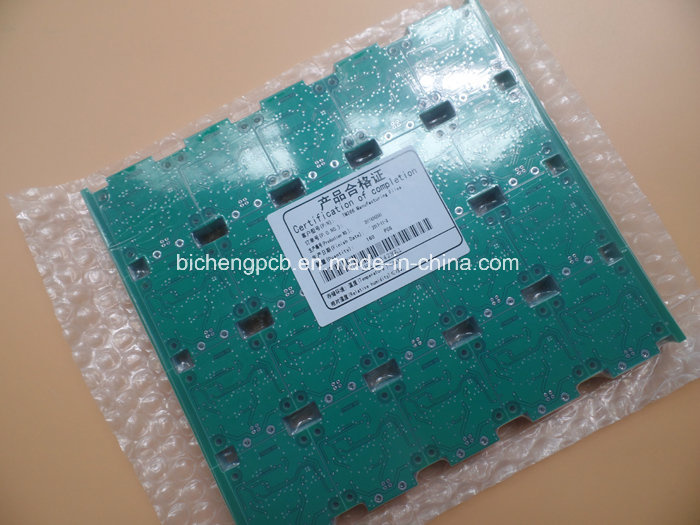

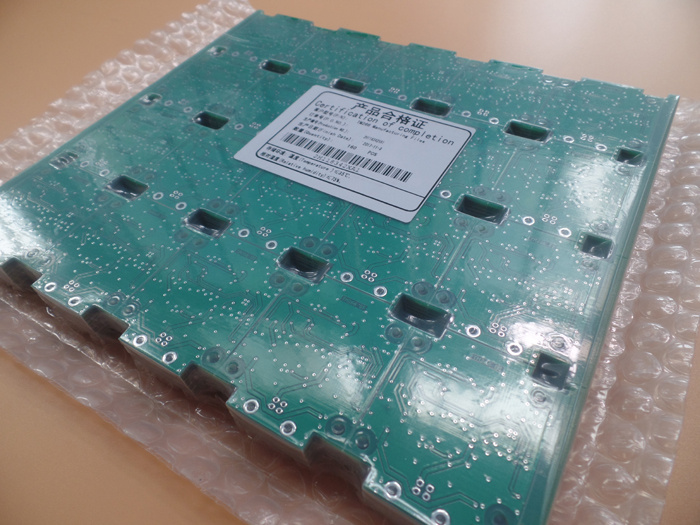

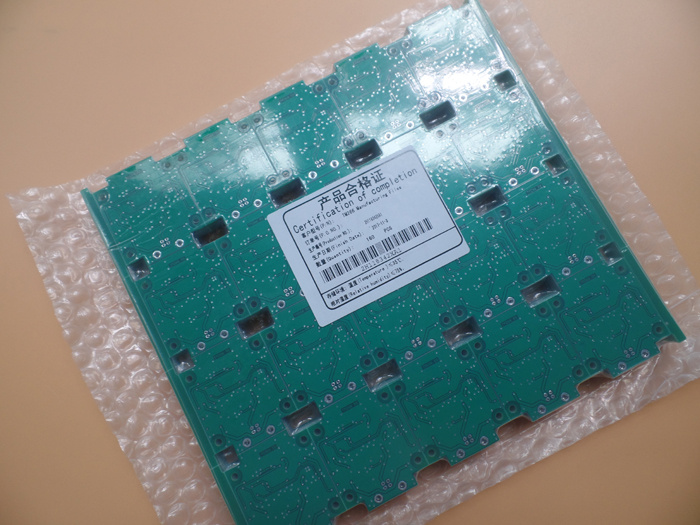

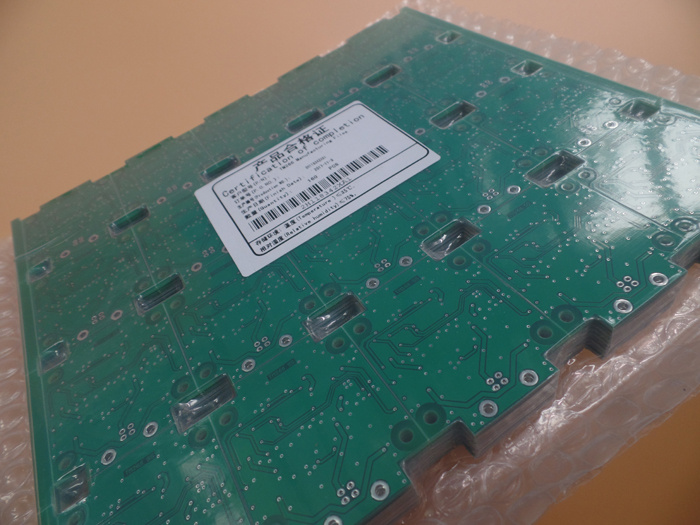

This is a type of 2 layer PCB circuit board at 1.6mm thick for the application of Electric Inverter. The base laminate is from IT158 FR-4, Green solder mask and White silkscreen on board. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panel boards are packed separately.

Parameters & Data Sheet

Number of Layers	2
Board Type	Double Sided PCB
Board Thickness	1.60 mm +/-0.16
Board Material	FR-4 IT158
Board Material Supplier	ITEQ
Tg Value of Board Material	135ºC

PTH Cu thickness	≥20 um (See hole wall details)
Inner Iayer Cu thicknes	N/A
Surface Cu thickness	35 um (1oz)

Solder Mask Type and Model No.	LPSM, PSR-2000GT600D
Solder Mask Supplier	KUANG SHUN
Solder Mask Colour	Green
Number of Solder Masks	2
Thickness of Solder Mask	14 um

Type of Silkscreen Ink	IJR-4000 MW300
Supplier of Silkscreen	TAIYO
Color of Silkscreen	Whie
Number of Silkscreen	1

Mininum Trace (mil)	7.9 mil
Minimum Gap(mil)	6 mil

Surface Finish	Lead Free HASL
RoHS Required	Yes
Warpage	0.25%

Thermal Shock Test	Pass, 288±5ºC,10 seconds, 3 cycles. No delamination, no blistering.
Solderablity Test	Pass, 255±5ºC,5 seconds Wetting Area Least 95%
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6012C Class 2

Microsection Hole Wall (um)

Hole Wall Cu Thickness			≥20 um	Hole Wall Cu Roughness			≤25.4 um
NO.	A	B	C	D	E	F	AVE
1	25.998	24.798	24.858	26.498	25.778	25.408	25.557
2	24.871	23.671	23.731	25.371	24.610	24.281	24.429
3	24.773	23.573	23.633	25.273	24.553	24.183	24.332

Outline dimension Unit: mm

NO.	Required Dimension (toerance)		Actual dimension
1	220.00	±0.15	220.02	220.06	219.95	219.94
2	196.00	±0.15	195.99	196.06	195.98	196.07

Hole Size and Slot Dimension (mm)

NO.	Requerment Dimension (tolerance)		PTH/NPT	Actual dimension
1	0.925	±0.076	Y	0.925	0.900	0.950	0.925
2	2.300	±0.076	Y	2.300	2.275	2.325	2.300
3	3.200	±0.05	N	3.200	3.175	3.225	3.200

How to specify a PCB?
A PCB user generally needs to present all of the primary manufacturing data in a complete and unambiguous way that the PCB manufacturer can quote and produce the boards without error.

A checklist is listed as follows. Some parameters not necessary for a particular job can be deleted so that the specification form only reflects the relevant data.
(1) Company name
(2) Part number
(3) Lot size and annual requirements
(4) Layer count
(5) Board size
(6) Board thickness
(7) Board shape
(8) Panelization
(9) Board build-up
(10) Boards with controlled impedance
(11) Test coupon
(12) Machining (Contouring)
(13) Laminate type and UL flammability
(14) Warp & Twist
(15) Outer layers
(16) Inner layers
(17) Solderability preservation
(18) Solder masks
(19) Notation
(20) Peelable solder mask
(21) Carbon printing
(22) Plated through holes (PTHs)
(23) Non-PTHs
(24) Milled Holes (Slots)
(25) Blind via holes
(26) Buried via holes
(27) Board tooling holes
(28) Panel tooling holes
(29) Board mounting
(30) Edge connectors
(31) Soldering conditions
(32) Markings
(33) Electrical test
(34) Automatic optical inspection
(35) Minimum pattern conditions
(36) Quality conditions
