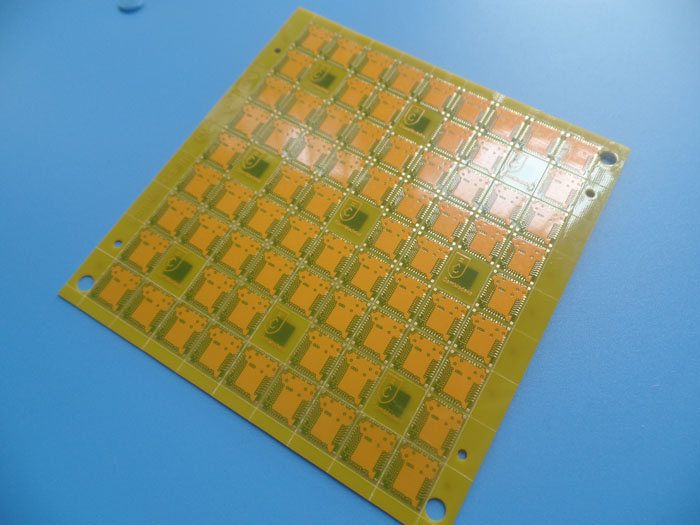

PCB Tacoinc 0.5mm Thickness 4layer Board PWB Edge Plating
| Price: |
US $ 2.03/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-488.1757-V1.1 |
| Final Foil External: |
1oz |
| Final Height Of PCB: |
0.5mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Yellow |
| Colour Of Component Legend: |
No Silkscreen Requried. |
| Minimum Trace And Space: |
3mil/4mil |
| Minimum / Maximum Holes: |
0.25/4.50mm |
| Test: |
100% Electrical Test Prior Shipment |
| Final Foil Internal: |
0.5oz |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Brand: |
Bicheng |
Product Description
Parameters & Data Sheet| PCB SIZE | 102 x 100mm=81PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer, 4 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP |
| 4mil prepreg |
| copper ------- 18um(0.5oz) GND |
| 4mil FR-4 |
| copper ------- 18um(0.5oz) PWR |
| 4mil prepreg |
| copper ------- 18um(0.5oz) |
| TECHNOLOGY | |
| Minimum Trace and Space: | 3mil/4mil |
| Minimum / Maximum Holes: | 0.25/4.50mm |
| Number of Different Holes: | 21 |
| Number of Drill Holes: | 503 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT140 TG>135, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 0.5mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold 0.05µm over 3µm Nickel, (11.7% area) |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Yellow, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | No silkscreen requried. |
| Colour of Component Legend | No silkscreen requried. |
| Manufacturer Name or Logo: | No silkscreen requried. |
| VIA | Plated through hole(PTH), Via in Pad. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Antenna
Wifi Booster
HDMI Switch
Voip
Remote Control
Oscilloscope |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Company Profile
The manufacturing facilities are independent industrial plant. There're 16000 square meters workshop area. Brand new automatic equipment was introduced from Israel, Germany, Japan and Taiwan area. As of now the manufacturing capability for 2-12 layer PCBs covers 300 thousand square feet per month. 7000-8000 types of different PCBs are shipped to worldwide each month.
PRODUCTS & SERVICES
a) FR-4 TG>135, High TG>170, High CTI>600V
b) RO4350B, RO4003C, F4B microwave material
c) Aluminum based PCB, 1W/MK-3W/MK material
d) Layer Count up to 32 layers
e) Heavy Copper
f) Hybrid Material Multilayer PCB
g) Impedance Controlled PCB
h) HASL Lead free, Electroless Nickle Immersion Gold (ENIG), Immersion Silver, Immersion Tin, OSP
i) Color of Solder Mask: Green, Blue, Matt Blue, Yellow, Black, Red and White etc.
j) Special holes: blind via, countersink hole, castellation hole, press-fit hole
k) Quick turn-around (QTA) Delivery
l) Minimum Order Quantity (MOQ) 1 pcs
m) Door to Door shipment service

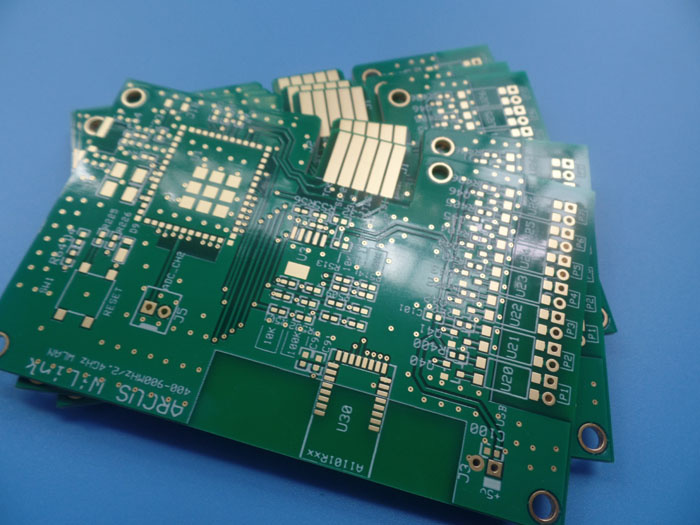

PCB Board

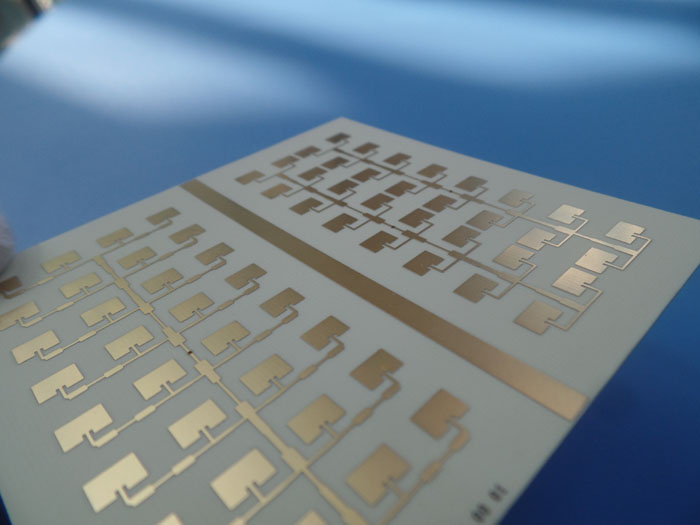

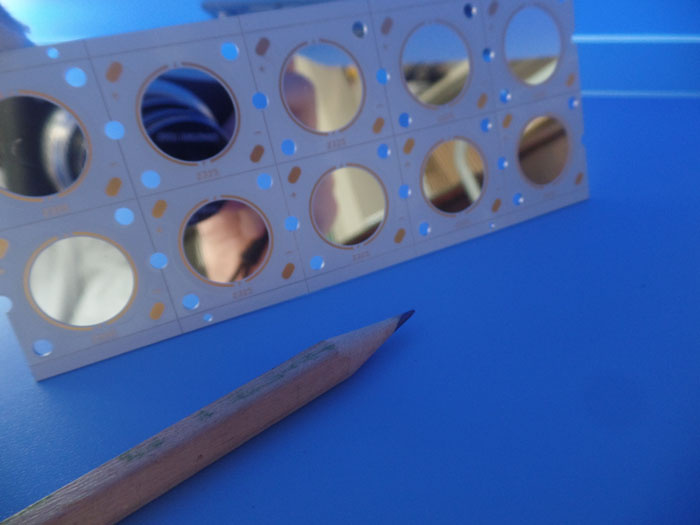

Aluminum PCB
Microwave PCB

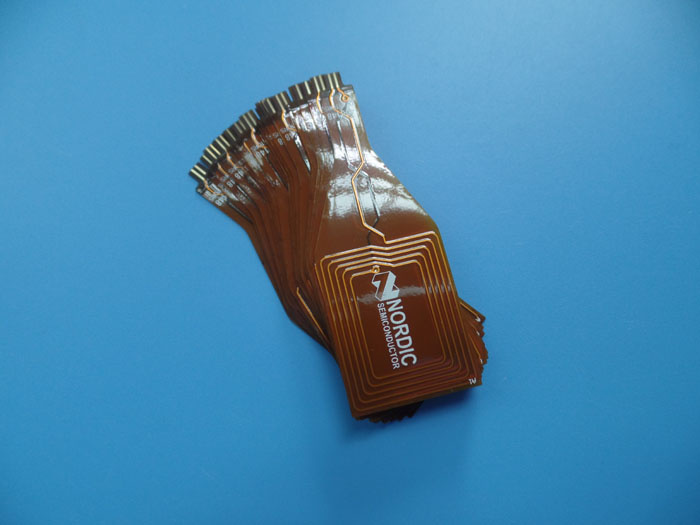

Flexible PCB
To support a number of relatively heavy components or to play a role of connector part,it is necessary for the flexible circuit to reinforce such an area. This is achieved by bonding a rigid material to that area. The rigid material in technical is called stiffener. It can be a layer of thicker polyimide, or it can be an epoxy glass laminate, sometimes stainless steel is used too.
Stackup
Polyimide
} coverlay
Adhesive
Copper Foil |
Adhesive } Flexible circuit
Polyimide |
Adhesive } Bonding Ply
FR-4 } Stiffener
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
