PCB Taconic Tlx-8 0.762mm (30mil) Edge Plating Combined Circuit Board

PCB Taconic Tlx-8 0.762mm (30mil) Edge Plating Combined Circuit Board
Price: US $ 2.85/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: BIC-479.1757-V1.1
Final Foil External: 1.5oz
Final Foil Internal: 0.5oz
Surface Finish: Immersion Gold
Solder Mask Color: Green, Lp-4G G-05, Nanya Supplied
Minimum Trace And Space: 4mil/4mil
Maximum Holes: 0.25/6.5mm
Final Height Of PCB: 1.6mm ±0.16
Outline Dimension: 0.0059" (0.15mm)
Board Plating: 0.0030" (0.076mm)
Test: 100% Electrical Test Prior Shipment
Type: Rigid Circuit Board
Dielectric: FR-4
Material: Fiberglass Epoxy
Flame Retardant Properties: V0
Brand: Bicheng

Product Description

Company Profile
Founded in Shenzhen China in 2003 Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry. Our PCB products range from fiberglass PCB, high frequency PCB to metal core PCB and ceramic PCB's.

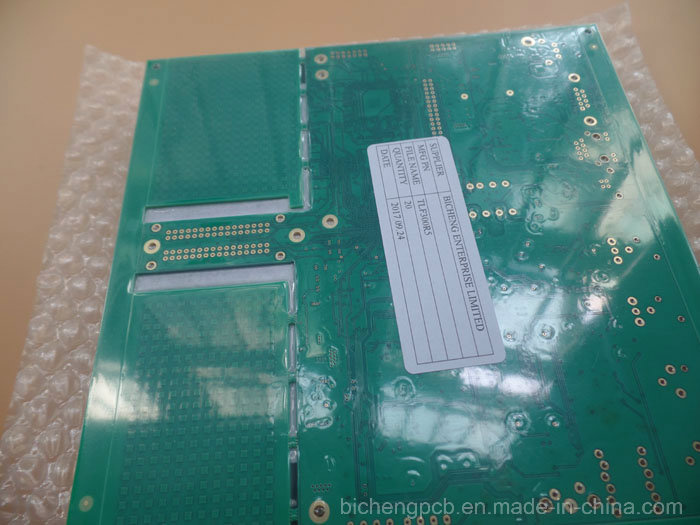

PCB Board

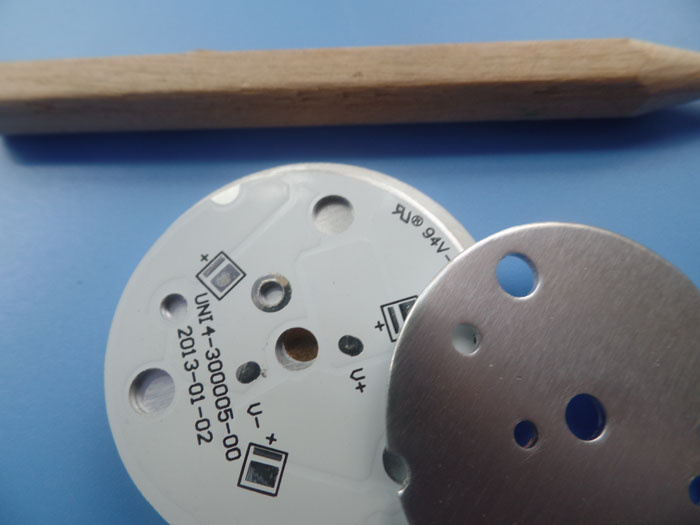

Aluminum PCB

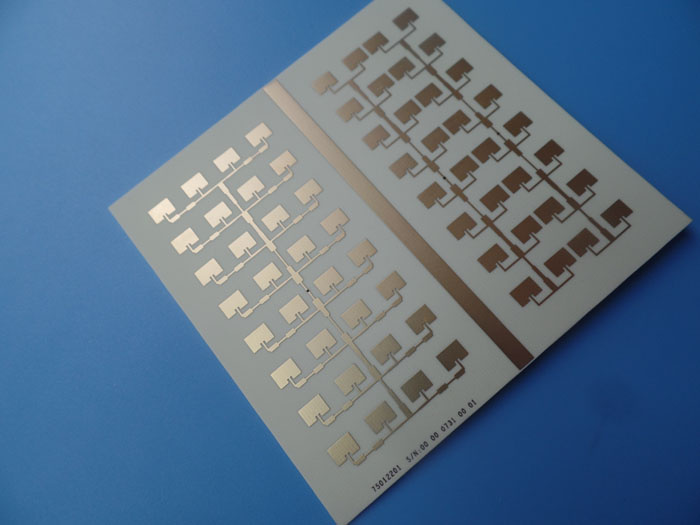

Microwave PCB

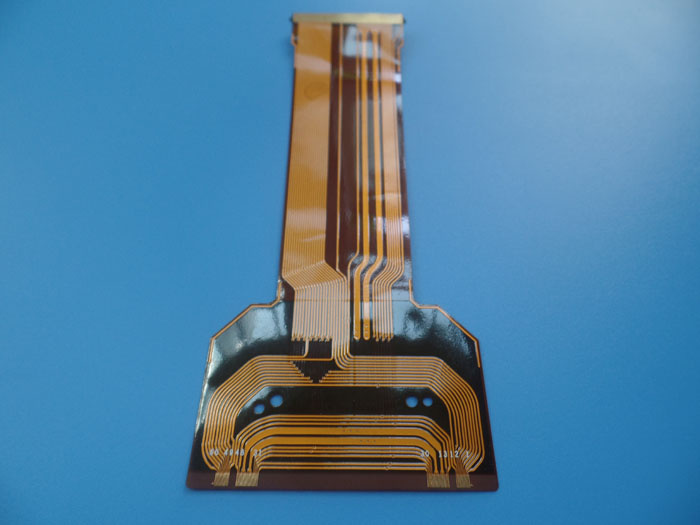

Flexible PCB


Frequent Asked Questions

11).
Do you sell prototype PCB?
Yes. We offer PCB prototypes up to 32 layers, inclusive of FR-4 PCB, high frequency PCB, MCPCB and flexible PCB.
12).
Do you sell high temperature PCB?
Yes. The material stability of high Tg (glass transition temperature) is high so that a high Tg PCB can be desirable. Multilayer and high layer PCB uses this material much.
13).
Do you sell BGA circuit board?
Yes. We offer micro fine pitch BGA circuit boards. The minimum pad diameter of BGA is 10mil for prototypes, 12mil for mass production.
14).
Do you sell blind via PCB?
Yes. Blind via is the hole starts from top layer or bottom layer and ends at one of inner layers. Blind via usually are plugged by epoxy resin and it's not visible by our eyes.
15
).
Do you sell quick turn (fast PCB) prototypes?
Yes. We offer PCB prototypes and quick turn prototypes. The quickest time is 24 hours for double sided and 5 days for 4 layers PCB. The disadvantage of quick turn is high cost.
16).
Do you sell rigid-flex PCB?
Sorry. We currently do not offer rigid-flex PCB.
17).
Do you sell via in pad PCB?
Yes. Via in pad (VIP) is a good real estate saving. We offer this kind of PCB for many applications like microcontroller, GPRS etc.
18).
Do you sell MCPCB?
Yes. We offer metal core PCB(MCPCB), single sided and double sided, aluminum core and copper core, 1W/MK, 2W/MK and 3W/MK etc.
19).
Do you sell heavy copper PCB?
Yes. Heavy copper PCBs can withstand high current and have good heat dissipation, it has been satisfying the market of power conversion module boards which is used in
automobile electronics and electric equipment.
20).
What's your minimum isolation of layers?
The minimum thickness of prepreg in inner layer is 0.06mm for prototypes, and thicker at 0.1mm for mass production.



Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
