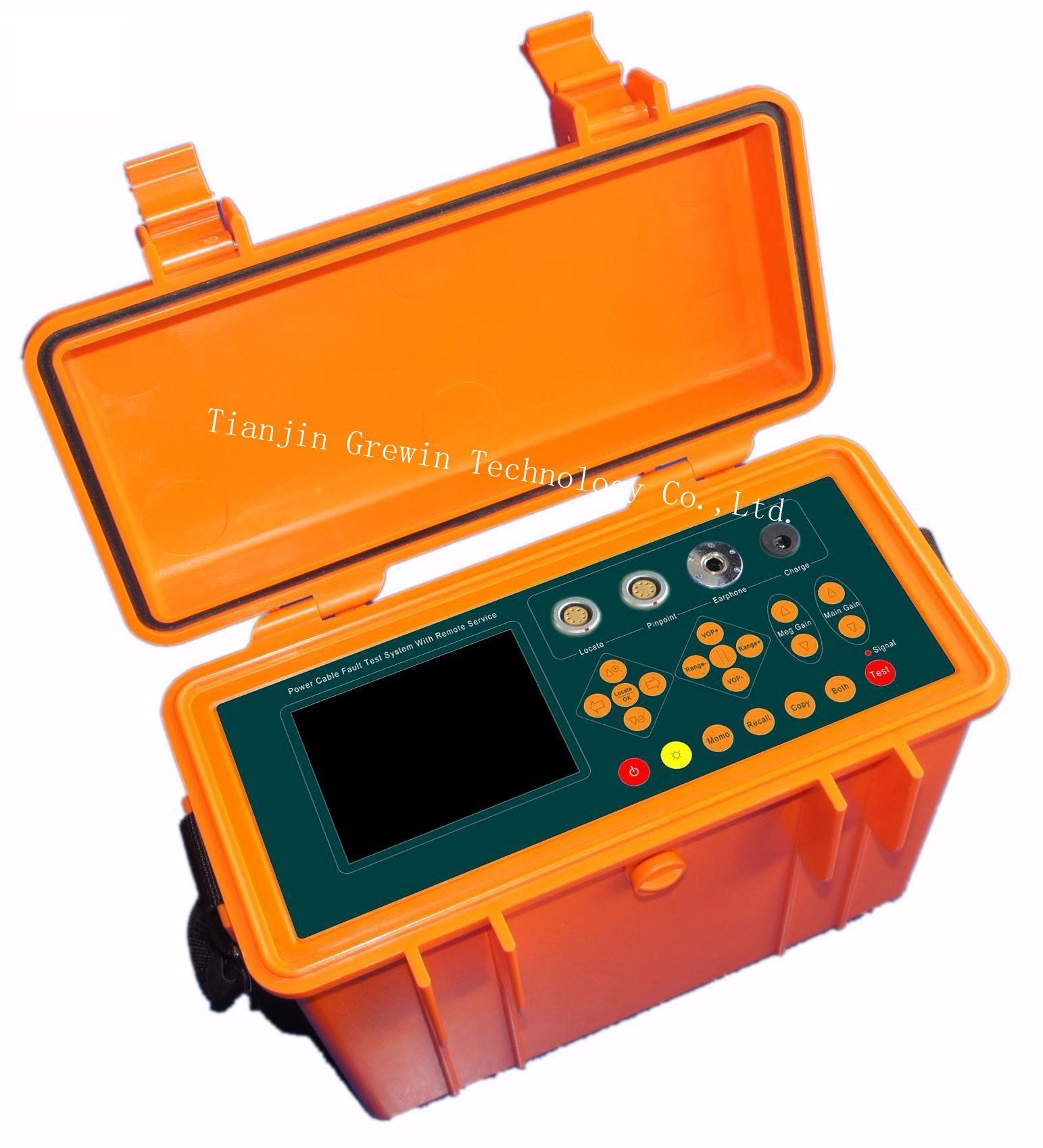

Pclr8000 Remote Service Integrated Locator / Integrated Cable Fault Locator

Prod Model:	PCLR8000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type1:	Pclr8000 Remote Service Integrated Locator
Sampling Frequency:	100MHz
Low Voltage Impulse:	1m
Impulse Current:	4m
Voltage Of Low Voltage Impulse:	30V
Distance Measurement Range:	30km
Blind Zone:	2m
Main Unit:	320*240 LCD
Volume:	270*150*210mm
Weight:	1.5kg
Wiring Devices:	Integrated Wiring
Certification:	SGS, IEC
Condition:	New
Type:	Energy Meter

Product Description

Tianjin Grewin Technology Co.,ltd, who always pay great attention to its business philosophy "Quality and Honesty First". Grewin is specialized in the design and manufacture of wound components such as transformer,current sensors, chokes etc . windely used in communications,electronics,meters,industrial control,medical equipments and other fields.We are also a provider of power meters and instruments locators. 85% of its products exported to America, Europe, and Asia etc. We have passed ISO9001,CE,SGS approval and IEC report and developed good cooperative relationship with valued customers around product quality and value-added service along with the fast efficient solution.Grewin has won a lot of customer's praise.

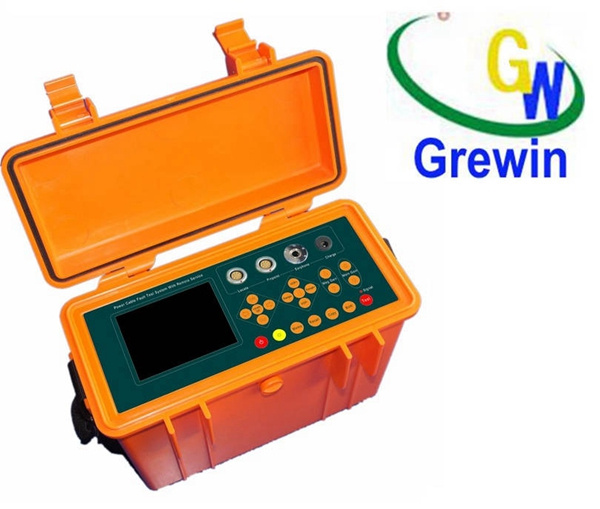

Name: GWD-8000 Remote Service Integrated Locator




 Certification:
We have abtained VDE,UL,CE,ROHS,ISO9000 Approal and SGS Audit Supplier in China,We guarantee quality is the first.

Product description:
 Big LCD screen
 SD card storage
 Integrated functions as: fault locating, pin-pointing
 Built-in Bluetooth module for computer communication
 Optional remote service
Function introduction:

1.  Fault distance locating:
l   Low voltage impulse method: apply to the distance measurement of low resistance fault, short circuit and open circuit fault
l   Impulse current method: apply to the distance measurement of high resistance fault, breakdown fault with current coupler for signal sampling.
2.    Pin-pointing:
l   Audio and magnetic synchronously receiving with high anti-interference capability
l   Audio and magnetic signal waveform displaying to distinguish the signal and noise easily
l   Cursor test audio magnetic delay to display accurate fault point
l   Route tracing while pinpointing according the initial polarity of magnetic waveform
3.    Big LCD screen
4.    SD card storage, easy to import to the computer
5.    High capacity lithium-ion battery matched with quick charger
6.    Built-in Bluetooth module for computer communication
7.    Optional remote service
8.    Power supply management to reduce the consumption. Auto power off in 15 min. without operation.
9.    Auto power off when low battery lever to protect the battery.
10.  Integrated design and small size, easy to carry.
Function

Fault distance locating
Distance measurement mode		Low voltage impulse  Impulse current
Sampling frequency		100MHz
Resolution Ratio		Low voltage impulse:1m  Impulse current:4m
Voltage of low voltage impulse		30V
Distance measurement range		30km
Blind zone		2m
Audio magnetic synchronization pin-pointing:
Audio signal transmission band		Mid-frequency 400Hz ,bandwidth 200Hz.
Gain of signal channel		80dB
Accuracy of pin-pointing		0.1m
Power supply:
Battery		built-in Li-ion battery pack, nominal voltage 7.4V,Capacity 3000mAH
Power consumption		400mA ,work time reach 6 hours
Charger		Input AC100-240V, 50/60Hz; output 8.4V, DC 1A
Charge time		<4 hours
Display
Main unit		320*240 LCD
Other
Volume		270*150*210mm
Weight		1.5kg
Working condition
Tem.		-10ºC-40ºC
Humidity		5-90%RH
Elevation		<4500m

 Basic testing
1.Steps

1. Fault judgment
2. Distance testing
3. Route tracing
4. Pin-pointing

2.Fault judgment and test method chosen

1. When cable fault appeared, first determine the fault character as below:

• Test the phase to phase and phase-earth insulation resistance of one end of the cable by megger. If the result is zero, pls use the multimeter to test the resistance.
• If the insulation resistance is very high but insulation is normal, pls check whether open circuit fault exist. Here user can make three phases short circuit to the earth and test on the other end to distinguish.
• Fault character distinguish and test method form



No	Fault	Fault form	Distance test method	Pin-pointing method
1	Low resistance	Megger:0 Multimeter:< 200Ω	Low voltage impulse	Audio-frequency(optional)
				Audio magnetic synchronous
2	Open circuit	Conductor disconnection		Audio magnetic synchronous
3	High resistance	Megger:>0 Or: Megger:0 Multimeter:≥ 200Ω	Impulse current
4	Breakdown	Megger:insulation normal Withstand voltage test:no

Remark:

1. The gray part in the form means that,for these functions, extra matched high voltage generator is needed.
2. Audio-frequency method to pinpoint the low resistance is optional. This need the matched CD-8000 route tracing signal generator.

Device introduction
1.Main unit and accessories


1. PCLR-8000 main unit

• Function and accessories:

Low voltage impulse distance test.Accessories: Low voltage impulse test line
Impulse current distance test.Accessories: Impulse current coupler
Audio magnetic synchronous pin-point.Accessories:Pin-pointing sensor, earphone

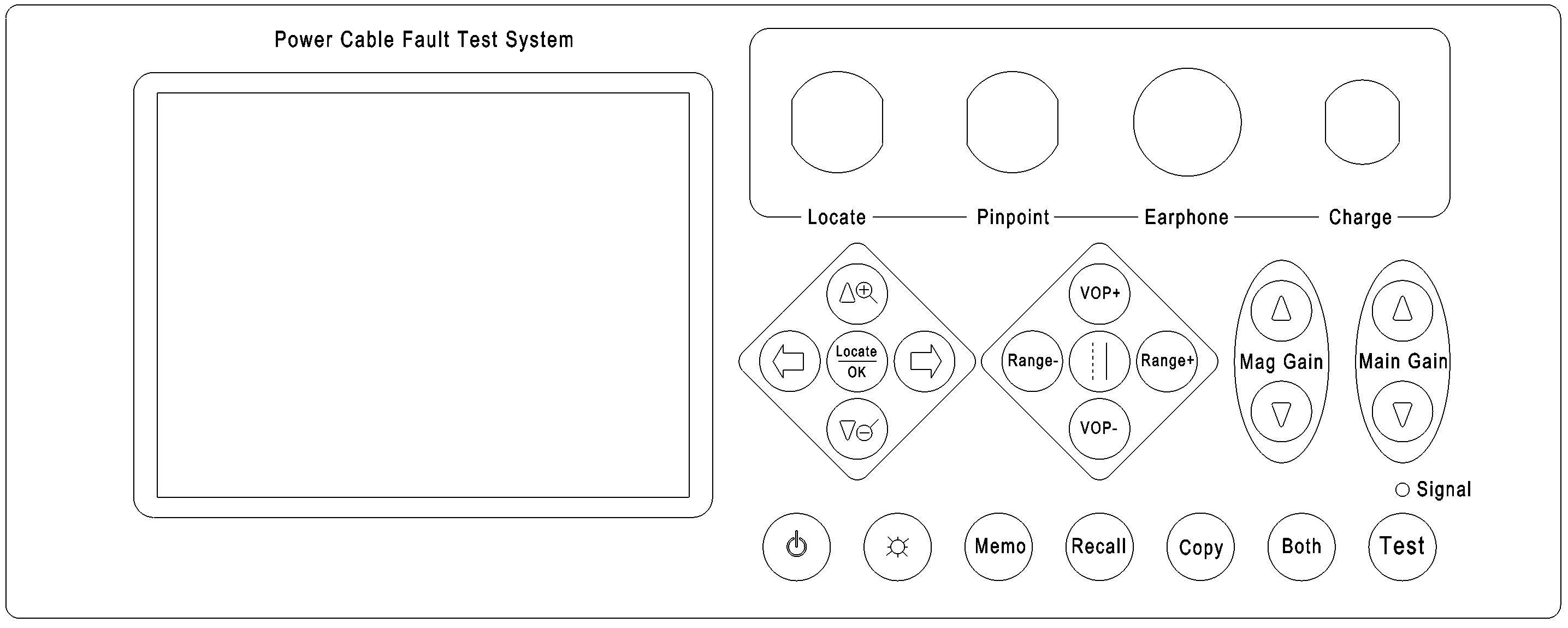

1. Front panel of the main unit

1. Function introduction:

•     Press 2 sec. to turn on/off device
•     Press to open/close the backlight
• Memo: Save current waveform
• Recall: recall the history waveform from the SD card
• Copy: Copy current waveform for comparing
• Both: Compare the current waveform with the copy waveform
•           Move the cursor
• Locate/OK: Locate: auto cursor moving and fault locating

            OK: Confirm when some operation

•           When normal test, waveform zoom out/in

          When recall the saved waveforms, press to choose waveform

• Mag.gain+/- :Adjust the synchronous magnetic signal gain under the pin-pointing mode
• Range+/-:change the current test range
•      Cursor switch: switch the solid cursor and the dotted cursor
•  VOP+/-:Adjust the cable pulse velocity
•  Main gain+/-:Adjust the gain of distance testing and audio gain of pinpointing
• Indicator light on the right corner:indicate the different working modes including low voltage impulse,impulse current,route tracing and pin-pointing.
• Test: Under the low voltage mode,press for one testing.Under the impulse current mode,press one time to waiting for triggering.Invalid under the pin-pointing/route tracing modes.
• Signal indicator light:Under the low voltage mode,flash when test.Flash one time when triggering under the impulse current mode.Same as under the pin-pointing mode.



1. Interface:

• Locate interface:connect with the low voltage impulse testing line or the impulse current coupler
• Pin-point interface:connect with the pin-pointing sensor
• Earphone:to connect earphone for audio monitoring under the pin-point mode
• Charge port:on the side of the main unit,to connect the charger for build-in battery
