| Prod Model: |
Integrated Cable Fault Locator |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type1: |
Pclr 8000 Remote Service Integrated Locator |
| Sampling Frequency: |
100MHz |
| Low Voltage Impulse: |
1m |
| Impulse Current: |
4m |
| Voltage Of Low Voltage Impulse: |
30V |
| Distance Measurement Range: |
30km |
| Blind Zone: |
2m |
| Volume: |
270*150*210mm |
| Weight: |
1.5kg |
| Electric Equipment: |
Single-Phase |
| Certification: |
Ce, RoHS |
| Condition: |
New |
| Type: |
Energy Meter |
Product Description

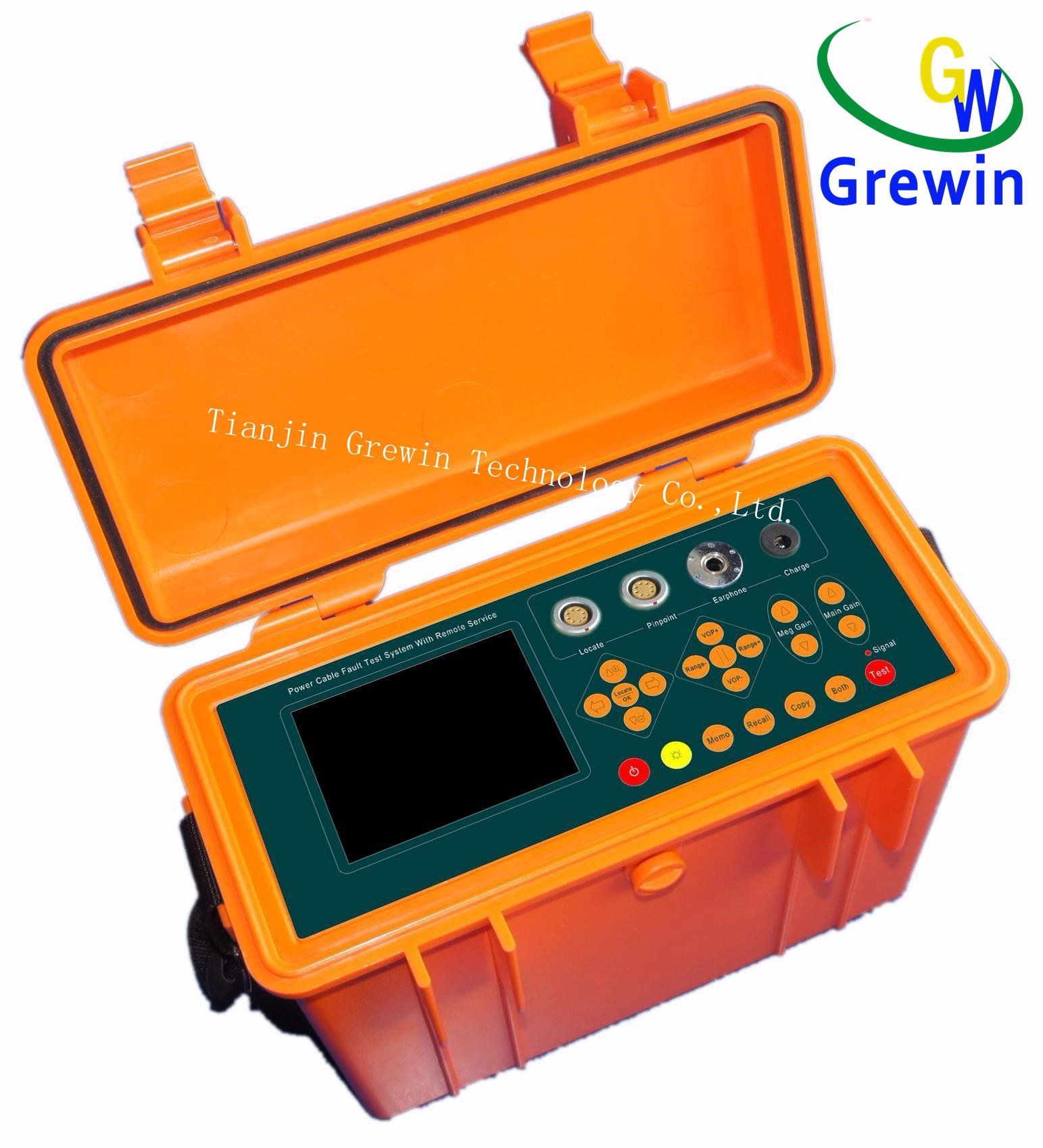

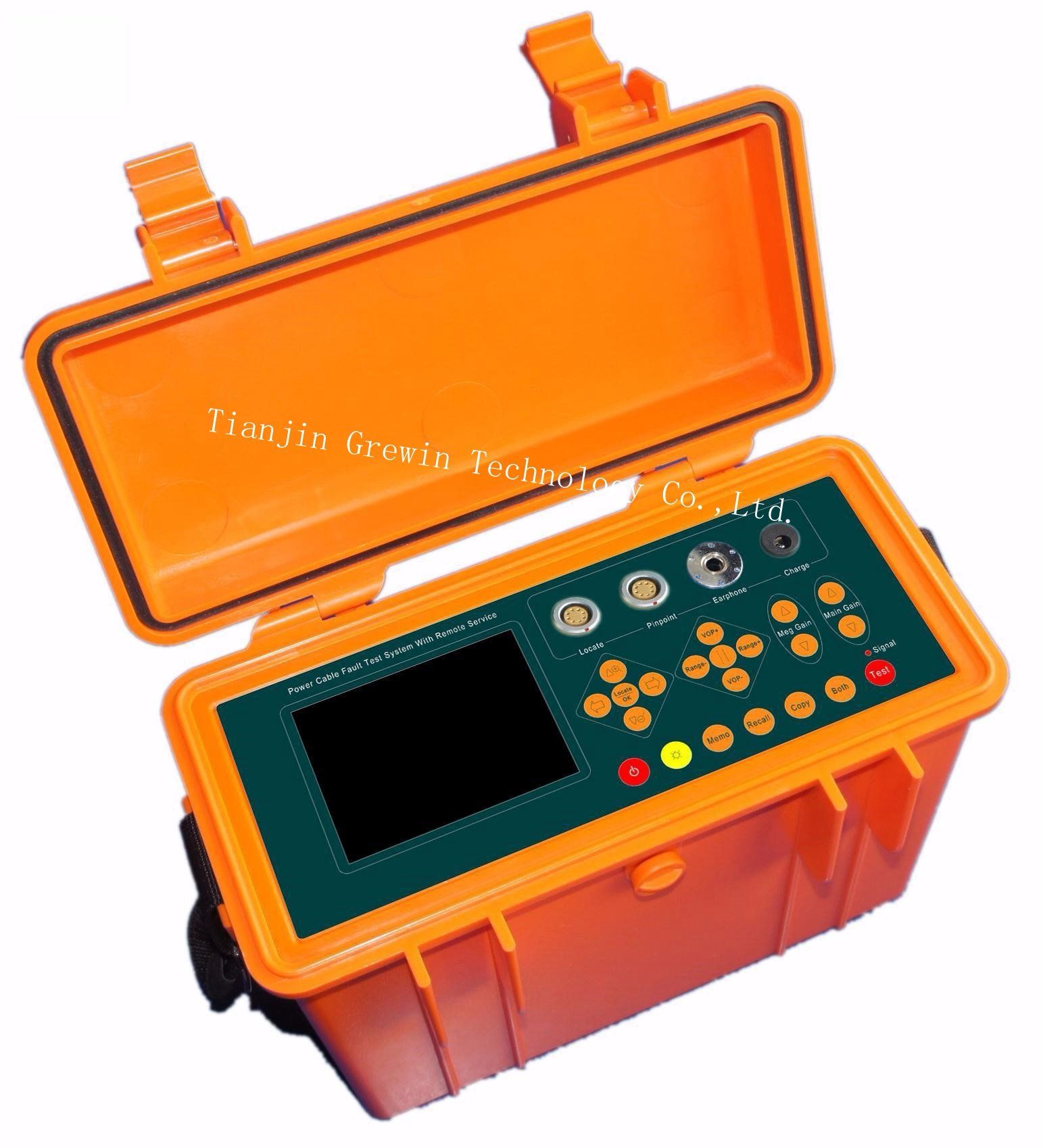

Name: PCLR 8000 Remote Service Integrated Locator / Integrated Cable Fault Locator
Certification:
We have abtained VDE,UL,CE,ROHS,ISO9000 Approal and SGS Audit Supplier in China,We guarantee quality is the first.
Product description:
Big LCD screen
SD card storage
Integrated functions as: fault locating, pin-pointing
Built-in Bluetooth module for computer communication
Optional remote service
Function introduction:
1. Fault distance locating:
l Low voltage impulse method: apply to the distance measurement of low resistance fault, short circuit and open circuit fault
l Impulse current method: apply to the distance measurement of high resistance fault, breakdown fault with current coupler for signal sampling.
2. Pin-pointing:
l Audio and magnetic synchronously receiving with high anti-interference capability
l Audio and magnetic signal waveform displaying to distinguish the signal and noise easily
l Cursor test audio magnetic delay to display accurate fault point
l Route tracing while pinpointing according the initial polarity of magnetic waveform
3. Big LCD screen
4. SD card storage, easy to import to the computer
5. High capacity lithium-ion battery matched with quick charger
6. Built-in Bluetooth module for computer communication
7. Optional remote service
8. Power supply management to reduce the consumption. Auto power off in 15 min. without operation.
9. Auto power off when low battery lever to protect the battery.
10. Integrated design and small size, easy to carry.
Function
| Fault distance locating |
| Distance measurement mode | | Low voltage impulse
Impulse current |
| Sampling frequency | | 100MHz |
| Resolution Ratio | | Low voltage impulse:1m
Impulse current:4m |
| Voltage of low voltage impulse | | 30V |
| Distance measurement range | | 30km |
| Blind zone | | 2m |
| Audio magnetic synchronization pin-pointing: |
| Audio signal transmission band | | Mid-frequency 400Hz ,bandwidth 200Hz. |
| Gain of signal channel | | 80dB |
| Accuracy of pin-pointing | | 0.1m |
| Power supply: |
| Battery | | built-in Li-ion battery pack, nominal voltage 7.4V,Capacity 3000mAH |
| Power consumption | | 400mA ,work time reach 6 hours |
| Charger | | Input AC100-240V, 50/60Hz; output 8.4V, DC 1A |
| Charge time | | <4 hours |
| Display |
| Main unit | | 320*240 LCD |
| Other |
| Volume | | 270*150*210mm |
| Weight | | 1.5kg |
| Working condition |
| Tem. | | -10ºC-40ºC |
| Humidity | | 5-90%RH |
| Elevation | | <4500m |

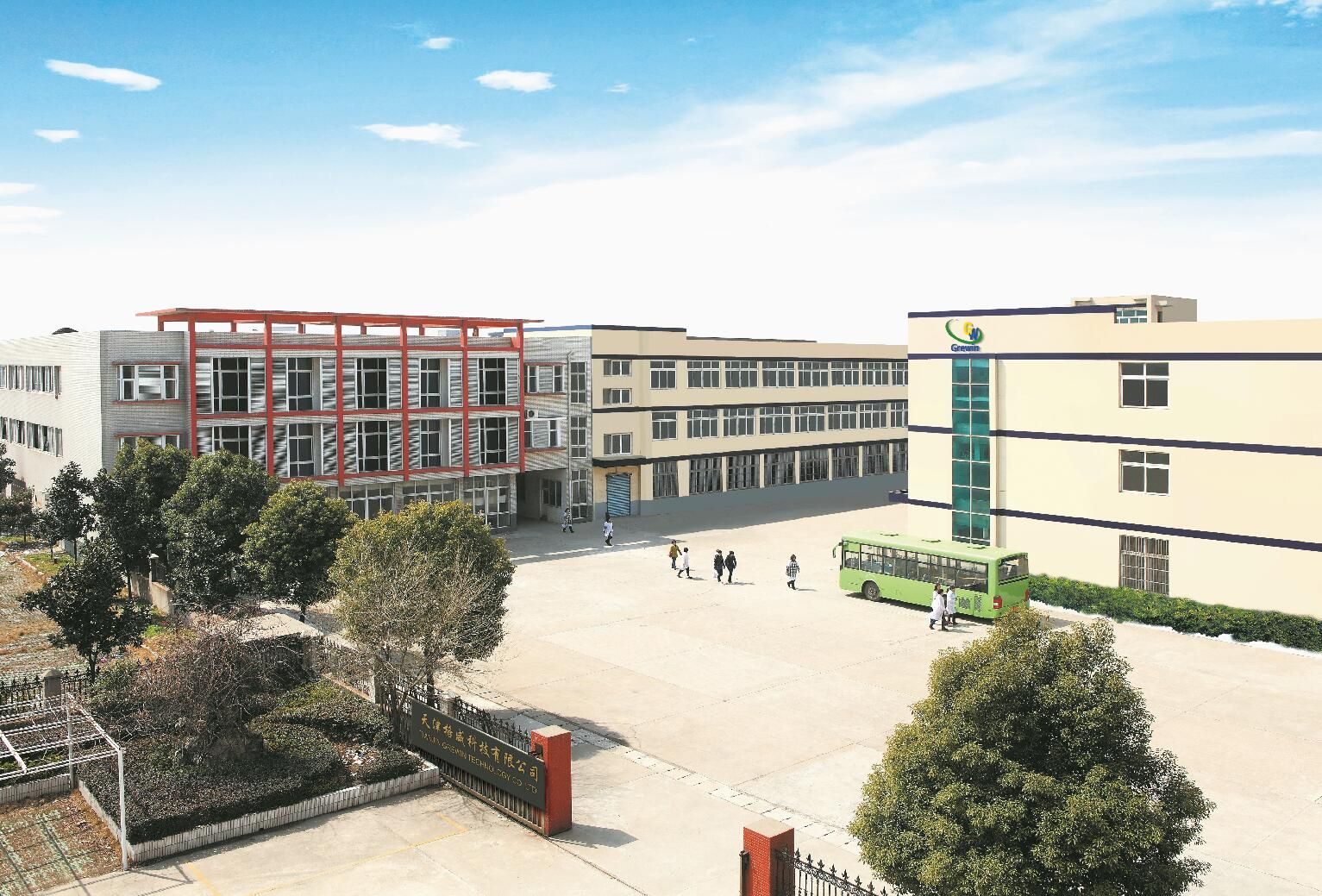

Company Introduce:
