PCM Board for 14.4V Li-ion for Li-Po Battery Pack

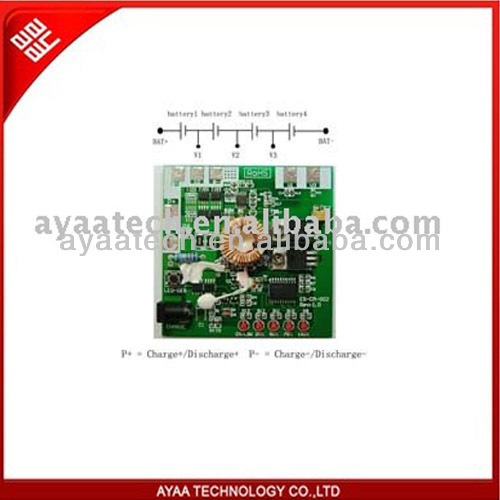

Name: PCM Board for 14.4V Li-ion for Li-Po Battery Pack
Brand: all-electronics-online.com
SKU: 737852105
Availability: InStock
Rating: 5 (115 reviews)

Price:	US $ 0.3-0.6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CMB-003(4S)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Green
Size:	L80W80T20mm
Base Material:	FR-4
Mode Of Production:	SMT
Metal Coating:	Copper

Product Description

Ayaa have three main divisions related to portable power supply:
1. PCM/BMS For Li-ion/Li-polymer/Lifepo4 battery pack
2. Customized Assembly battery packs with our high quality PCM/BMS
3. Matching Charger for Lithium/Li-ion/Li-po/Lifepo4 battery pack
Specifications

Charge Management Module
Model: CMB-003(4S)
Charging current: 3A
Size: L80*W80*T20mm

Charge Management Module Specifications For 14.4V Li-ion/Li-po Battery Pack
Part Number: CMB-003(4S)
Item	Specification		Remark
Battery pack	14.8V(4S)		Li-ion /Li-polymer
Input power	DC:18-25V		Power supply
Input current	≥2A
Charging Voltage	16.8±0.15V		4.2V / 1Cell
Charging Method	CC/CV		Constant-current and -Voltage with Limited current
Standard Charging Current	charging current	1.5A±0.2A
Current consumption	Charge Management Circuit	≤3mA	Power supply
Current consumption	Protection Circuit	≤50uA	Battery pack
Standard Charging Time	Hour(can adjust)		Battery Capacity÷Charging Current×1.5
Low voltage alarm	≤12V		3.0V / 1Cell
Short circuit protection	Detection condition	Exterior short circuit	P+,P-
Short circuit protection	Release condition	Charge Release	Input
LED condition	Charge	CH/LOW on	CH/LOW LED
	Charge full	CH/LOW off	CH/LOW LED
	Fuel gauge	25%-100%	4 LED
Operating temperature	-40~+85°C
Storage temperature	-40~+125°C
Weight	50.0 grams
Outline dimension	L80W80T20mm

AYAA TECHNOLOGY Co., Ltd has 11 years experience in the design, engineering and service of all kinds of safety board PCM/BMS for Li-ion (Lithium ion) and Li- Po (Lithium Polymer) batteries, battery pack, also different types of chargers.

We are dedicated to utilize extensive knowledge and expertise of cells and battery pack build in order to provide the most innovative, effective and economical battery solutions. As a leader of safety board, worldwidely providing battery packs for different devices which are used in the industry and households - power tools, medical equipment, emergency and evacuation lighting, energy storage station, navigation systems for cars, , GPS devices, golf buggy, e-bikes and etc.

We offers free technical advise on battery selection and pack design and has extensive technical backup. AYAA has its own sample verification centre with state of the art welding and manufacturing equipment. We has no minimum quantities on battery pack builds, and has a pricing structure to recognize production runs., As a conformity company by ISO9001, We take quality as business soul, all products will be 100% strictly checked by our QC person, , Care is taken during every process from material checking, assembling, test and package, customer satisfactory always powerful for our continuously improvements.

Meet us, meet reliability, meet our mutual development.

Why choose us?

• We have excellent specialists and equipment in the field of emergency power supply and in particular in the field of batteries.

• Only here you will find a very good balance between price, quality and warranty of the products and services

• We give free advices to the clients about the quality of the products and how their operation throughout their life cycle

• We have friendly and professional sales always standby for all your questions.

What makes us better than others?

• We give a guarantee for the services we provide

• We use only quality materials and specialized machine for spot welding, charging and test devices

• We have 11 years experience in the industry and numerous regular customers from worldwide

• We fulfill orders in agreed terms.

You can trust us!
