| Prod Model: |
AYAA-PCM-L10S20-858(A-1)(8S) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Composition: |
Color, Green |
| Metal Coating: |
Copper |
| Mode Of Production: |
SMT |
| Layers: |
Single-Layer |
| Base Material: |
FR-4 |
| Certification: |
ISO |
| Customized: |
Customized |
| Condition: |
Used |
Product Description

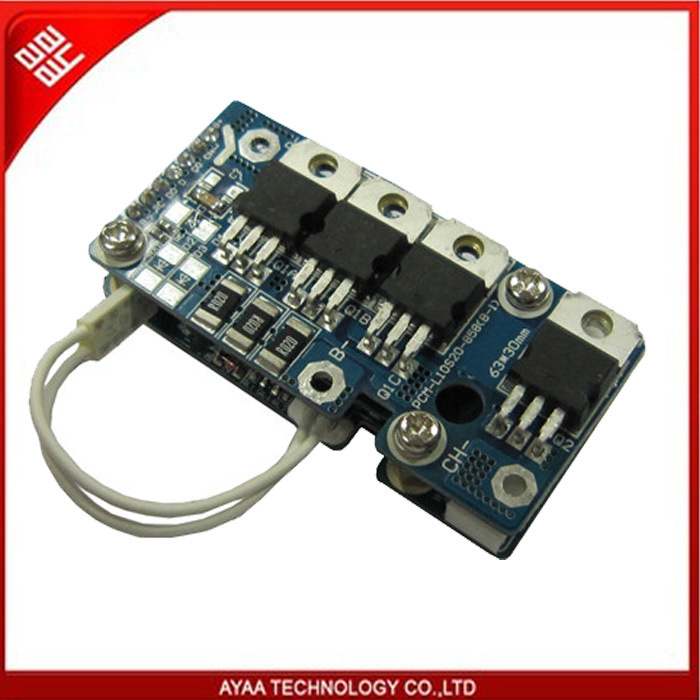

PCM-L10S20-858(A-1)(8S)
1)Safe & reliable
2)12 months warranty
3)Eco-friendly
Application:
Lithium ion provide long lasting energy for portable equipment and other devices such as:
1. Portable equipment: Laptop, camcorder, PDA, Digital camera, portable DVD etc.
2. Home appliances: Two-way radio, Walkie-talkie, Electric toys, Electric bicycles, Emergency lighting
3. Military equipment: IR telescope
4. Telephone switchboard, electric equipments, power instruments and meters
5. Uninterrupted power source (UPS) for computer, Emergency Application, Medical devices
6. Power transmission and transformer station, switch-control, and accident lighting
7. Fire fighting, safety device, and alarm monitoring
8. Automatic office system
9. Radio communication system
10. Emergency lighting and car/ship starting system
11. Portable electric appliances and mining system
12. Traffic and navigation signal lamp
13. Solar Energy: Solar Street lights, Solar LED Lights
Storage:
1. Use at temperature below 40° C, charge fully prior to long storage periods or if it has been stored for more than three months
2. If you find any single battery voltage is under 2V at room temperature, the battery has been over-discharged or is self-discharging due to some defect/parasitic load. Discontinue use until the fault can be corrected and the battery be recharged
3. Store in an open, well ventilated, dry, clean area, between -20° C to 40° C for maximum life. Self-discharge will accelerated at higher temperature
4. Don't expose the battery to extremes of temperature over 60° C, directly to sources of heat, direct sunlight or moisture and/or rain
| No. | Test Item | Criterion |
| 1 | Voltage | Charging voltage | DC:33.6V CC/CV |
| Balance voltage for single cell | 4. 0.025V |
| 2 | Current | Balance current for single cell | 42 5 |
| Current consumption for single cell | 20 |
| Maximal continuous charging current | 5A |
| Maximal continuous Discharging current | 20A |
| 3 | Over charge Protection | Over charge detection voltage | 4.2 0.025V |
| Over charge detection delay time | 0.5S_2S |
| Over charge release voltage | 4.05 0.05V |
| 4 | Over discharge protection | Over discharge detection voltage | 2.50 0.062V |
| Over discharge detection delay time | 10_200 |
| Over discharge release voltage | 3.0 0.1V |
| 5 | Over current protection | Over current detection current | 60 10A |
| Detection delay time | 5ms_20ms |
| Release condition | Cut load, Auto Recovery |
| 6 | Short protection | Detection condition | Exterior short circuit |
| Detection delay time | 200-500us |
| Release condition | Cut load,Auto Recovery |
| 7 | Resistance | Protection circuitry | 20 |
| 8 | Temperature | Operating Temperature Range | |
| Storage Temperature Range | -40 degree |
AYAA TECHNOLOGY Co., Ltd has 11 years experience in the design, engineering and service of all kinds of safety board PCM/BMS for Li-ion (Lithium ion) and Li- Po (Lithium Polymer) batteries, battery pack, also different types of chargers.
We are dedicated to utilize extensive knowledge and expertise of cells and battery pack build in order to provide the most innovative, effective and economical battery solutions. As a leader of safety board, worldwidely providing battery packs for different devices which are used in the industry and households - power tools, medical equipment, emergency and evacuation lighting, energy storage station, navigation systems for cars, , GPS devices, golf buggy, e-bikes and etc.
We offers free technical advise on battery selection and pack design and has extensive technical backup. AYAA has its own sample verification centre with state of the art welding and manufacturing equipment. We has no minimum quantities on battery pack builds, and has a pricing structure to recognize production runs., As a conformity company by ISO9001, We take quality as business soul, all products will be 100% strictly checked by our QC person, , Care is taken during every process from material checking, assembling, test and package, customer satisfactory always powerful for our continuously improvements.
Meet us, meet reliability, meet our mutual development.
