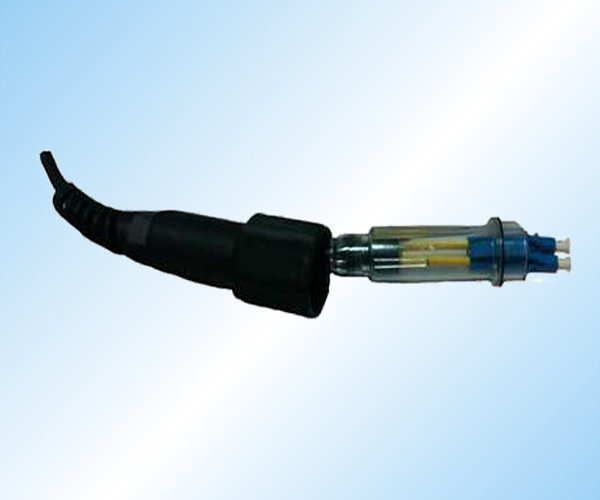

PD-LC Waterproof Fiber Optic Patch Cord

PD-LC Waterproof Fiber Optic Patch Cord
Price: US $ 10-13/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 20/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: PD-LC Outdoor Patch Cord
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Pdlc Waterproof, Odc Waterproof
Cable Jacket Color: Yellow, Blue, Green, Aqua, Red, Magenta, Beige
Cable Outer Diameter: 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 2.8mm, 3.0mm
Waterproof: IP67
Fiber Type: OS1, OS2, Om1, Om2, Om3, Om4
Cable Jacket Material: PVC, LSZH, Ofnp, PE
Fiber Cores: Sx, Dx, Indoor, Outdoor
Return Loss: PC>30dB; APC> 50dB
Insertion Loss: < 0.3 dB
Warranty: 10 Years
Transmission Medium: Single-Mode
Number Of Cores: Single-Core
Ferrule Endface: PC(',UPC)
Structure: Pd-LC
Light Source TYPE: Pd-LC
Connector Type: Pd-LC
Brand: Takfly

Product Description

PD-LC Waterproof Fiber Optic Patch Cord


Description
PD-LC connector is designed to exceed the requiremnets of ODVA, the connector meet IP66 environmental sealing ratings and are the ideal choice for a low cost and easy to use solution in industrial, Fiber to the Antenna, or any other harsh environmental applications.The PD-LC connector is designed according to the IEC60603-7 interface standard, which allows mating to other similar mechanical locking systems.

Features

Wide range of cables to be used, 5-7mm OD cable with duplex 2.0mm to 3.0mm jacketed subunits
Singlemode and Multimode
Intermatable to other industrial LC adapter per IEC60603-7
Simple assembly requiring no special tools
Aluminum housing, compactible design
Cost effective, time saving and eliminates the need for splicting on site

Application
Military, Oil & Gas. Broadcast & Industrial

Parameter

Item
Type   Parameter
Insertion LossSM   ≤0.20dB
MM   ≤0.30dB
Return LossSM   ≥50dB
MM   ≥35dB
Repetition Test    Additional Loss≤0.1dB, Reture Loss Variability<5dB
Temperature Stability(-40ºC~85ºC)    Additional Loss≤0.2dB, Reture Loss Variability<5dB
Free fall resistance     500 falls onto concrete from 1.2M height
Bump resistance     4000 bumps @ 40g acceleration
Tensile Strength     Tensile of 1500N, cable dependent
Operating temperature     -40 to +70°C
Storage temperature     -55 to +85°C
