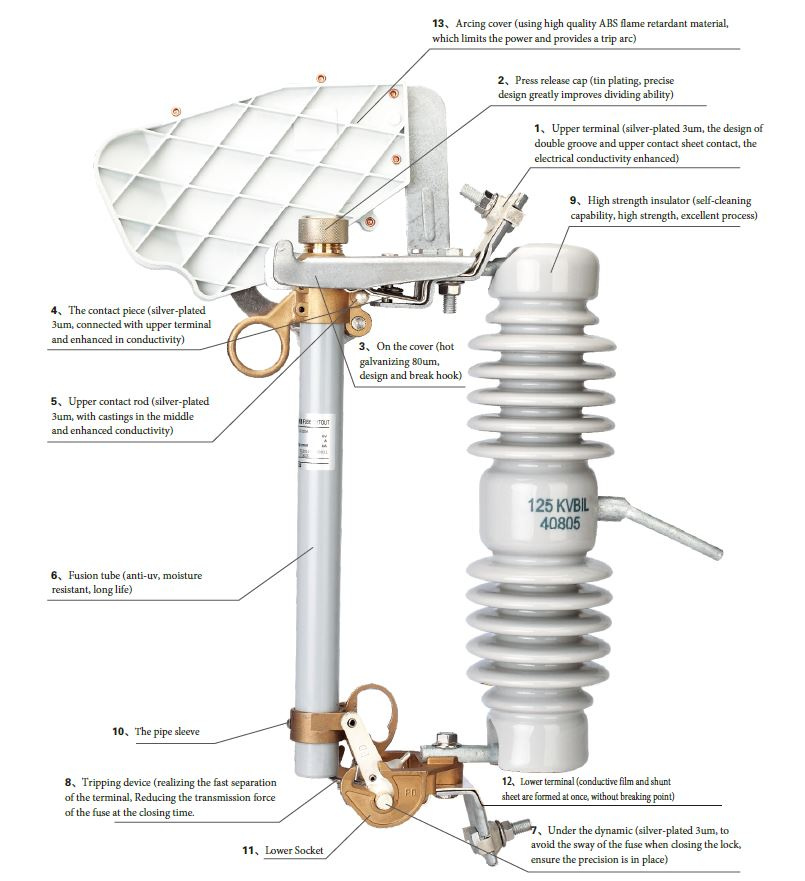

Pd3-12 (F) /200A Drop out Fuse (standard)

Name: Pd3-12 (F) /200A Drop out Fuse (standard)
Brand: all-electronics-online.com
SKU: 835296615
Availability: InStock
Rating: 4.8 (56 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

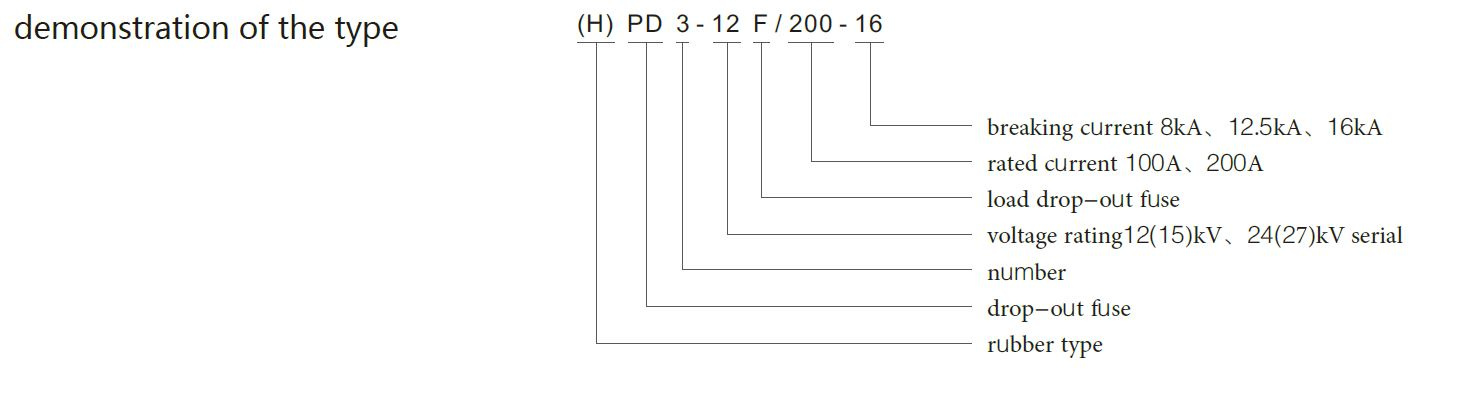

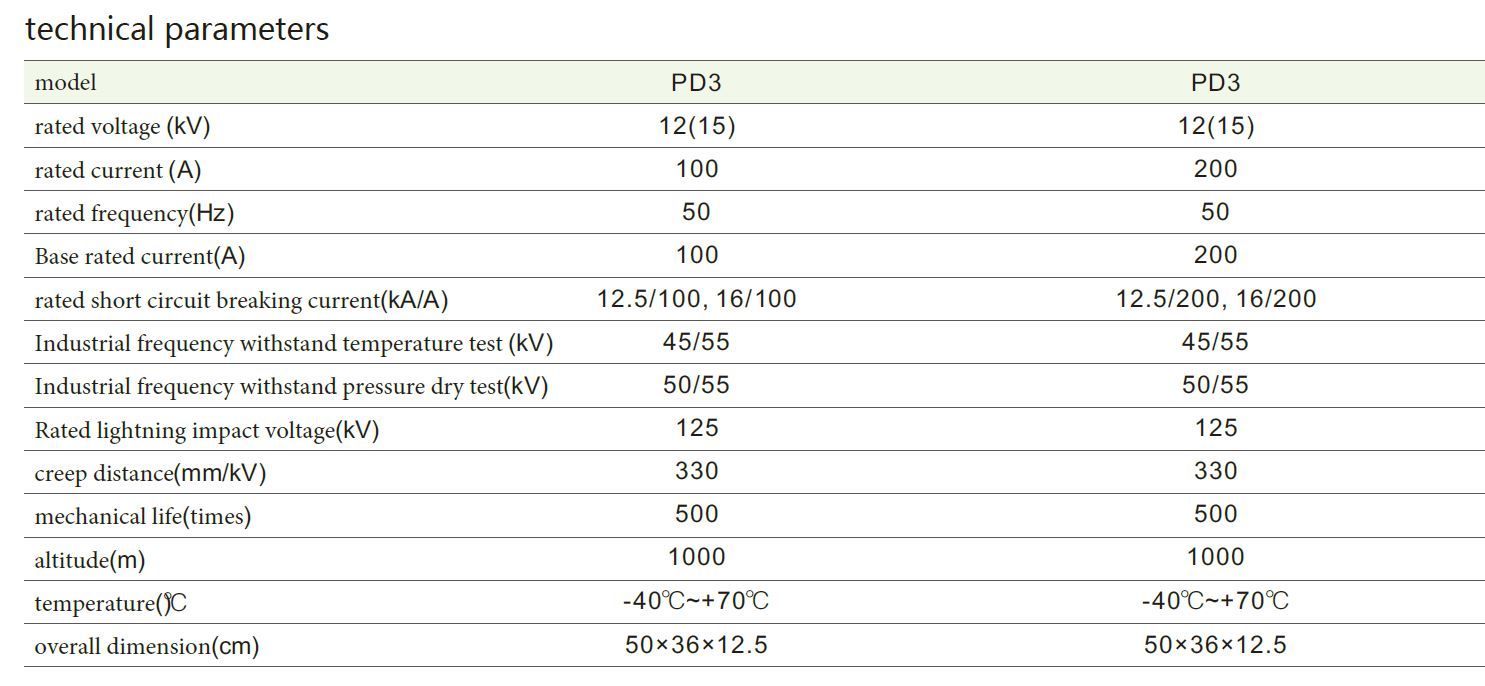

Prod Model:	PD3-12(F)
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Fusing Device:	Fuse

Product Description

Applied range:
The 100A carrier fuse will hold the fuse part of rated current 6A~ 100A.The fusible parts of 200A will hold the fuse of the rated current 100A~ 200A.For pending the use of occasions, the appropriate fuse specification and type choice is to continue with to carry load current, protection of equipment type and other overcurrent protection with the equipment requirements and change.The types of protective equipment include circuit breakers, power cooperators and other fuses, and cables and lines.
PD3 fuse provides a variety of fault current breaks.Flexibility to be achieved by using the release cap or fusing expansion cap.The 100A release cap is designed to exhaust under pressure of 13780kPa, and the 200A release pressure cap is read as 8957kPa exhaust.Pressure relief cap make PD3 from ionized gas fuse tube more efficiently and greatly improve its ability of breaking extension cap using pieces of fuse in the requirements of the single spray configuration, fusing a extension fusible unit in a lower position, so as to reduce a large number of pipe pressure, these make the fusion tube with higher breaking capacity.

environment:
The base of PD3 series products consists of embedded mechanical structure and insulator.The metal rod of the installation mechanism USES special adhesive materials to bond with insulators, which can withstand the electric power generated when the short circuit current is broken.
The F type fuse provides a solution to the capacitance current caused by the inductor to the pole in the subsurface feeder cable.

properties of product:
The base of PD3 series products consists of embedded mechanical structure and insulator.The metal rod of the installation mechanism USES special adhesive materials to bond with insulators, which can withstand the electric power generated when the short circuit current is broken.
The F type fuse provides a solution to the capacitance current caused by the inductor to the pole in the subsurface feeder cable.
