PE Sheath Fibre Optical Cable GYTY53

Name: PE Sheath Fibre Optical Cable GYTY53
Brand: all-electronics-online.com
SKU: 735673365
Availability: InStock
Rating: 4.3 (57 reviews)

Price:	US $ 0.41/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTY53
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket Material:	MDPE /HDPE/ LSZH
Fiber Account:	2-288 Core
Armour Material:	Steel Armour
Fiber Type:	Yofc Corning
Sheath Color:	Customized
Application:	RF Cable
Cover Material:	PE
Certification:	Reach
Conductor Material:	Optical Fiber
Type:	Direct0burial Cable

Product Description

PE Sheath Fibre Optical Cable GYTY53

Product Description

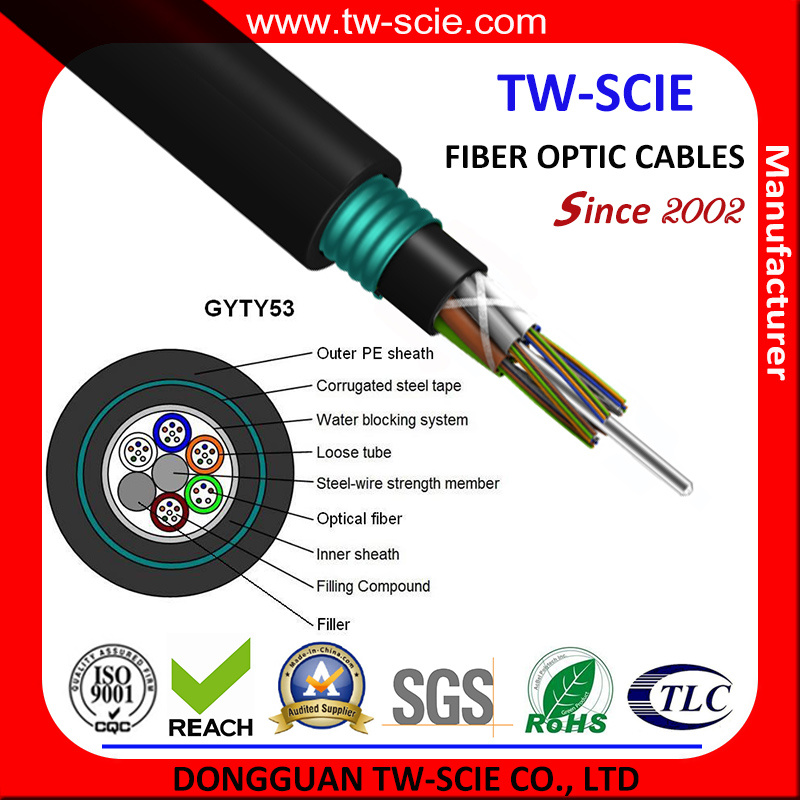

GYTY53 Layer stranded Double sheathed Armored Outdoor Fiber Optical Cable

Feature:
Low dispersion and attenuationProper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental propertiesDouble-jacket structure make cable have nice properties of moisture resistance and crush resistanceWith small cable diameter, light cable weight, easily to layOperating Temperature : -40 ~ +60 C
Characteristics:
Steel wire strength.filler protect tube fiber.steel tape armord.Good ultra violet radiation resistant property.Double sheath .Good moisture-resistance

Technical Parameters:

Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(°C)
24	12.0	155.00	3000	1000	3000	1000	20D	10D	-40+60
36	12.0	155.00	3000	1000	3000	1000	20D	10D	-40+60
42	12.0	155.00	3000	1000	3000	1000	20D	10D	-40+60
48	13.0	155.00	3000	1000	3000	1000	20D	10D	-40+60
60	13.0	185.00	3000	1000	3000	1000	20D	10D	-40+60
72	13.0	215.00	3000	1000	3000	1000	20D	10D	-40+60
96	14.5	215.00	3000	1000	3000	1000	20D	10D	-40+60
144	18.3	275.00	3000	1000	3000	1000	20D	10D	-40+60

Optical Characteristics:
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A,B,C)		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657(A1,A2 ,B3)		B4: Main technical data for positive dispersion shifted single-mode fiber

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
