| Prod Model: |
GYTC8S |
| Product Name: |
Optical Cable |
| Ouer Jacket: |
Black PE Sheath |
| Armore: |
Armored |
| Strengthen Member: |
Steel Wire |
| Loose Tube: |
Sz Stranding Loose Tube |
| Brand Of Optical Fiber: |
Corning, Fujikura,Draka |
| Water-Blocking: |
Filling Compound |
| Outer Diameter: |
10.4mm |
| Installation: |
Aerial |
| No. Of Fibers: |
2-288cores |
| Application: |
Optical Cable |
| Type: |
Single-mode Fiber |
| Certification: |
Optical Cable |
| Connection Structure: |
Optical Cable |
| Sheath Material: |
PE |
Product Description

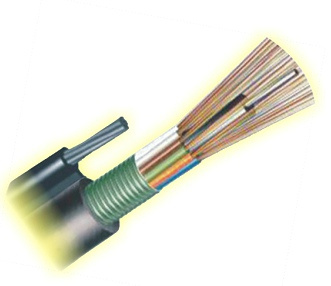

Optical Fiber Cable Self-Supporting 12 Core Single Mode Figure 8 Structure

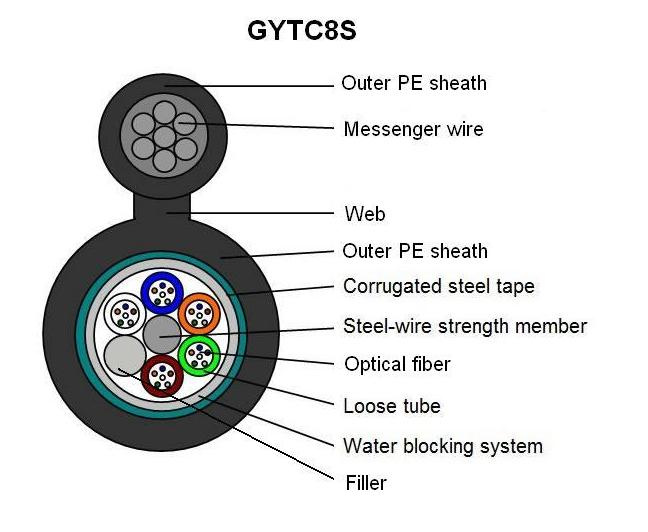

Characteristics:
1. Accurate fiber excess length ensure a good performance of tensile strength and temperature.
High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a critical protection of fiber.
The following measures are taken to ensure the cable watertight:
Steel wire as the central strength member
Loose tube filling compound
100% cable core filling
PSP enhancing moisture-proof
2. Feathers:
1. Low attenuation and dispersion, special control of exceed length and layer stranding technology ensures the good transmission, mechanical and environment performance.
2. Metallic element free forms the electric-magnetic intervention.
3. Small outer diameter, lightness, compact structure and good flexibility
Technical Parameters:
Cable Count | Out sheath
Diameter | Weight | Minimum allowable Tensile Strength
(N) | minimum allowable Crush Load
(N/100mm) | Minimum Bending Radius
(MM) | Storage
temperature |
(MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) |
6 | 3.0×9.8 | 54.00 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
12 | 3.0×9.8 | 54.00 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 24 | 7.0×14.5 | 210.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 36 | 7.0×14.5 | 210.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 42 | 7.0×14.5 | 210.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 48 | 7.0×15.5 | 210.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 72 | 7.0×15.5 | 245.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 144 | 7.0×15.5 | 285.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
Optical Characteristics: |
Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
A1b:62.5/125 |
Singlemode | G.652(A,B,C) | B1.1:Conventional fiber |
G.652D | B2: Zero dispersion shifted |
G.655 | B1.2 :Cut-off wavelength shifted |
G.657(A1,A2 ,B3) | B4: Main technical data for positive
dispersion shifted single-mode fiber |
Tags: GYTC8S Figure 8 self-supporting cable
3. Application:
Long-distance transmission in high-voltage area and the parallel area of high-voltage lines
Area susceptible to strong electric-magnetic intervention or lightning
LAN
4. Installation:
By duct and aerial (lightning and strong electric field)
Optical Cable Packaging & Delivery
Packaging Detail: GYFTY packing by wooden or plywood drums
Delivery Detail: 15days or according to your quantity
