| Prod Model: |
DXP1000H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Slivery |
| OEM: |
Welcome |
| Warranty: |
1 Year |
| Certificate: |
CE |
| Efficiency: |
Above 90% |
| Wave Form: |
Modified Sine Wave |
| Small Order For Testing: |
Acceptable |
| Multi-Protection: |
Yes |
| Input Voltage: |
DC12V/24V/48V |
| Phase: |
Single |
Product Description

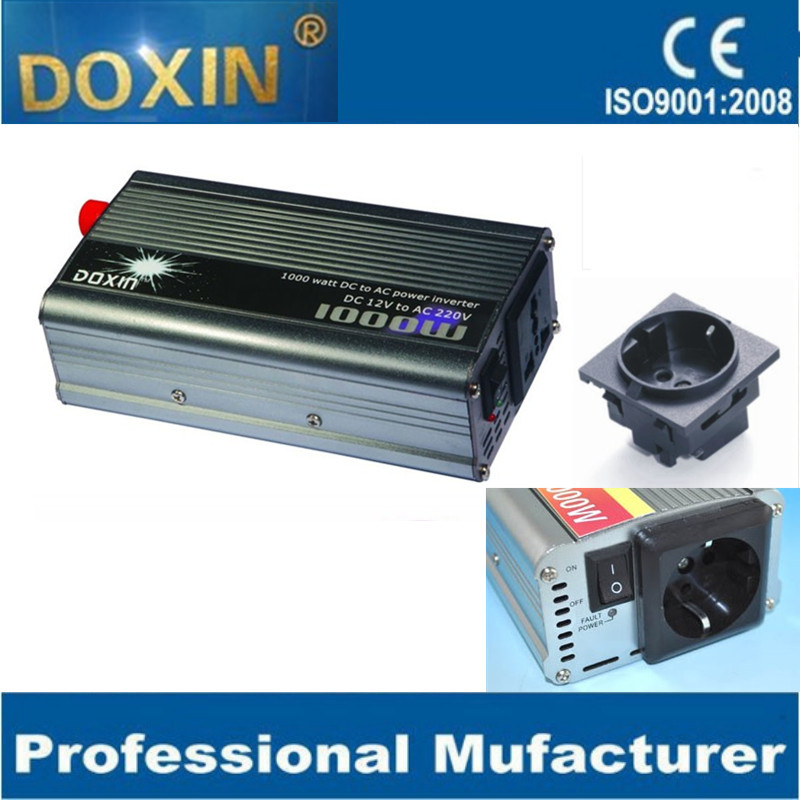

1000W DC 12V to AC 210V Power Inverter with EU outlet
Product Description
1. The use of imported components manufacturing, advanced circuit design, the inverter up to 90% conversion efficiency, strict quality management system of production, modernization of water production, product quality assurance.
2. Complete product specifications, different standards at home and abroad, the product into the United States, Britain, France and Japan, several major series of products can also be designed according to customer needs.
3. The internal protection circuits to prevent the electrical pulses or voltage fluctuations, can withstand the compressor, the impact of TV monitors and other electrical power with greater security start, power switch can be completely cut off the internal circuit, to protect the battery from the fractured loss.
4. The design of self-protection, making the time when the voltage is lower than 10V, it will automatically shut down to ensure that the batteries have sufficient power to start the vehicle.
5. Overheating or overload will automatically shut down when; Return to normal and then starts automatically.
6. No work noise, normal use can be run for many years without maintenance.
7. A variety input and output mode: 12V input, 24V input, the importation of cigarette lighter, battery directly; 220V AC output, 110V AC output, fully able to meet domestic and foreign users of the exchange of electricity demand.
8. Aluminum products, high-pressure plasma process Ti surface, high hardness, chemical composition and stability, anti-oxidation, amateur appearance.
Applying area:
It can be used which the power is less than 600W, such as
Office equipment: Laptop computers, mobile phones, printers, monitors
Household appliances: Televisions, video recorders, audio, DVD, VCD and electrical boxes
Outings: Field lighting, microwave ovens, cooking, etc.
Outdoor work: Power tools, vehicles for help, rescue and disaster relief, commercial promotions, etc.
Recreation: Mobile phone, PDA, digital cameras, digital cameras, batteries and GPS satellite navigation, etc.
Feature:
Continuous power: 600W
Peak power: 1000W
Input voltage: DC10-15V Output voltage: AC220+/-5%
Input frequency: 50Hz+/-2
Output Wave Modified Sine Wave
Low voltage alarm ( no load): DC 10.4- 11.0V
Low Voltage Protection( no load): DC 9.7- 10.3V
High Voltage Protection( no load ): DC 14.5V - 15.5V
No load loss: <0.3A
Efficiency: >90%
Size: 191*95*55(mm)
Net weight: 750g
| MAXIMUM CONTINUOUS RATING | 1000W |
| INPUT VOLTAGE | DC12V; DC24V |
| OUTPUT VOLTAGE | 220V+/-5% OR 110V+/-5% |
| OUTPUT FREQUENCY | 50HZ+/-2HZ OR 60HZ+/-2HZ(Meet users requirment) |
| LOW VOLTAGE ALARM(NO-LOAD) | DC 11.0V+/-0.5V; DC 21V+/-0.5V |
| LOW VOLTAGE CUT OFF(NO-LOAD) | DC 10V+/-0.3V; DC 20V+/-0.3V |
| HIGH VOLTAGE CUT OFF(NO-LOAD) | DC 15V+/-0.5V; DC 30V+/-0.5V |
| NO-LOAD LOSS | < 0.3A |
| TRANSFER EFFICIENCY | > 90% |
| OUTPUT WAVEFORM | Modified sine waveform |
| PRODUCT SIZE | 190*96*55mm |
| PRODUCT N.W. | 705G |
