Peelable Mask PWB Green PCB Board Made in China
| Price: |
US $ 0.38/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-380.11288-V1.9 |
| Surface Finish: |
HASL Lead Free |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Board Thick: |
1.6mm |
| Copper Thick: |
1 Oz |
| Mininum Trace (Mil): |
11.5 Mil |
| Minimum Gap(Mil): |
6 Mil |
| RoHS Required: |
Yes |
| Thickness of Solder Mask: |
14 Um |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Peelable Mask PWB Green PCB Board Made In China Offered from BichengPCB
Commodity Introduction

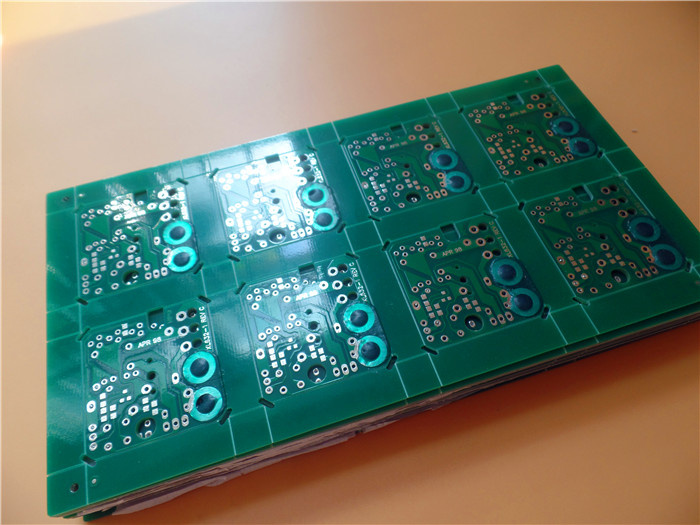

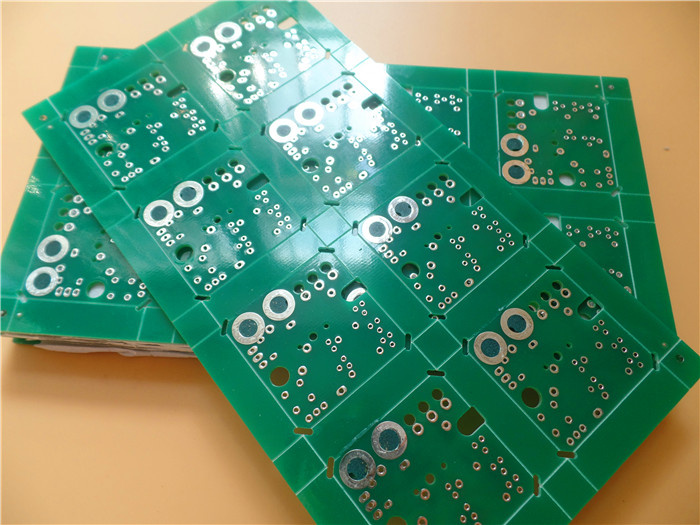

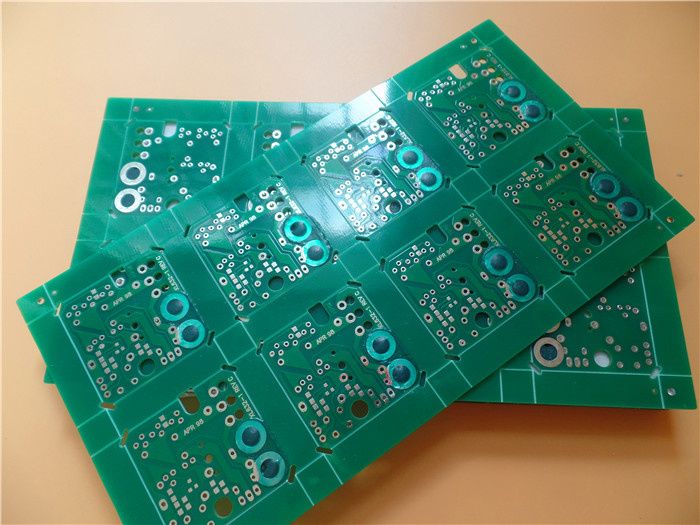

This is a type of Doulbe sided PCB board at 1.6mm thick with peelable mask for the application
of 8 Port Switch. The base laminate is from ITEQ Tg170 FR-4, Green solder mask from Taiyo and
White silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each
20 panel boards are packed separately.
Parameter & Data Sheet| Number of Layers | 2 |
| Board Type | Double Sided PCB |
| Board Thickness | 1.6 mm +/-0.16 |
| Board Material | FR-4 |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 170ºC |
| |
| PTH Cu thickness | ≥20 um (See hole wall details) |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 um (1oz) |
| |
| Solder Mask Type and Model No. | LPSM, PSR-2000GT600D, Peelable Mask |
| Solder Mask Supplier | TAIYO |
| Solder Mask Colour | Green |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 14 um |
| |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| |
| Mininum Trace (mil) | 11.5 mil |
| Minimum Gap(mil) | 6 mil |
| |
| Surface Finish | Hot air soldering level (HASL) |
| RoHS Required | Yes |
| Warpage | 0.19% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
Microsection Hole Wall: (um)| Hole Wall Cu Thickness | ≥20 um | Hole Wall Cu Roughness | ≤25.4 um |
| NO. | A | B | C | D | E | F | AVE |
| 1 | 24.554 | 23.354 | 23.414 | 25.054 | 24.334 | 23.964 | 24.589 |
| 2 | 26.094 | 24.894 | 24.954 | 26.594 | 25.874 | 25.504 | 25.882 |
| 3 | 25.662 | 24.462 | 24.522 | 26.162 | 25.442 | 25.072 | 25.042 |
Outline dimension Unit: mm| NO. | Required Dimension (toerance) | Actual dimension |
| 1 | 96.00 | ±0.15 | 95.51 | 96.05 | 95.96 | 95.89 |
| 2 | 146.00 | ±0.15 | 146.02 | 146.11 | 145.94 | 145.90 |
Hole Size and Slot Dimension (mm)| NO. | Requerment Dimension
(tolerance) | PTH/NPT | Actual dimension |
| 1 | 0.600 | ±0.076 | Y | 0.600 | 0.575 | 0.625 | 0.600 |
| 2 | 0.700 | ±0.076 | Y | 0.700 | 0.675 | 0.725 | 0.700 |
| 3 | 0.800 | ±0.076 | Y | 0.800 | 0.775 | 0.825 | 0.800 |
| 4 | 1.000 | ±0.076 | Y | 1.000 | 0.975 | 1.025 | 1.000 |
| 5 | 1.100 | ±0.076 | Y | 1.100 | 1.075 | 1.125 | 1.100 |
| 6 | 1.200 | ±0.076 | Y | 1.200 | 1.175 | 1.225 | 1.200 |
| 7 | 1.240 | ±0.076 | Y | 1.240 | 1.215 | 1.265 | 1.240 |
| 8 | 1.300 | ±0.076 | Y | 1.300 | 1.275 | 1.325 | 1.300 |
| 9 | 1.350 | ±0.076 | Y | 1.350 | 1.325 | 1.375 | 1.350 |
| 10 | 1.400 | ±0.076 | Y | 1.400 | 1.375 | 1.425 | 1.400 |
Quality Policy
Bicheng has developed series of management procedures and approaches to assure that PCBs
are in compliance with the customers' requirements, inclusive of selection of the vendors, work in
progress (WIP) inspection, outgoing delivery inspection and customer service etc.
Evaluation and Audit of Suppliers
Suppliers have to be evaluated by Bicheng. In addition, Bicheng will appraise and rank suppliers
every year to guarantee the materials supplied are meeting Bicheng's requirements. Furthermore,
Bicheng continuously develop suppliers and supervise them to improve their quality and
environment management basing on the systems of ISO9001 & ISO14001.
Contract Evaluation
Bicheng shall review and verify customer's requirements to make sure that we have the capability
to satisfy customers' requirements including specifications, delivery and other demands prior to
accepting an order.
Making, audit and control of manufacturing data.
When customers' design data and specifications are provided to our market department, Bicheng
has to verify all the requirements. Then, convert the design data into manufacturing data by CAM.
Finally, a manufacturing instruction (MI) is generated according to the real manufacturing process
and technologies for manufacturing department as the basis for actual fabrication. MI must be
reviewed by independent engineers and QA engineers before issue.
Incoming Material Quality Control
All materials have to be inspected before warehousing. We established a series of strict inspection
procedure and instruction to control the incoming materials. Furthermore, various precise
inspecting instruments and apparatus guarantee the capability to judge the material good or not.
We issue material with first in first out principle, and give out "alarm" for the material that will reach
the shelf life to ensure the materials are used up before expiry.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
