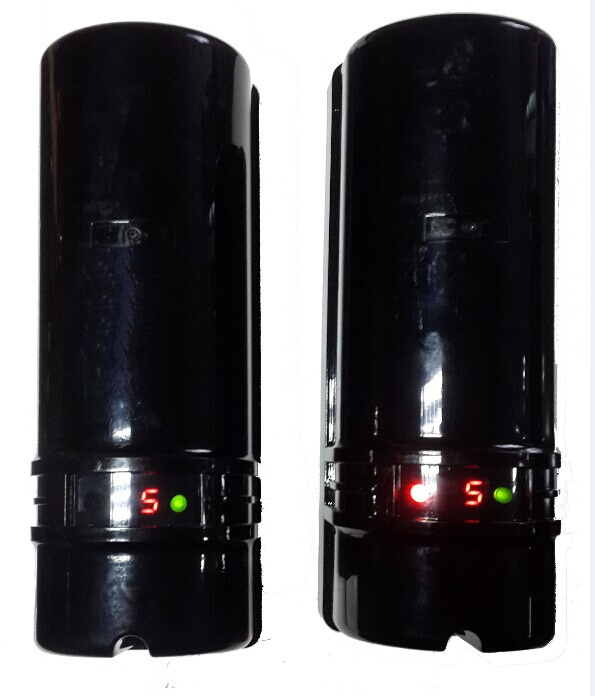

Perimeter Beam Detector, Infrared Light Transfer Detector (TA-200PLUS)

Prod Model:	TA-200PLUS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Ta-200plus
Shipment:	DHL, UPS, FedEx....
Service:	OEM&ODM

Product Description

The TA-100PLUS/TA-200PLUS/TA-260PLUS/TA-330PLUS Series of active infrared dual beams are designed to provide reliable detection at external distances up to 100m.
TA beams include automatic gain control (AGC) to help compensate for loss of signal caused by fog or heavy rain. This circuitry ensures that, even with 99% of signal lost, the beams will continue to function. To further ensure reliability, beams also feature an adjustable beam interruption timer that can be set to filter out alarms from small or fast moving objects. Add to this a frost resistant cover design and lighting protection and you have a beam suitable for installations in the harshest environments.

Lightning and surge protection
Rain, dust and insect protection
Frost and dew protection
High grade aspherical lens
Twin synchronized pulsed beam design for greater stability
99.5% beam blocking stability
A. G. C. Circuit
Adjustable beam interruption time
3 step LED indicator (ALPHA versions)

TA-100/200/260/330PLUS standard model

TA-100PLUS 60m Indoor 30m Outdoor
TA-200PLUS 120m Indoor 60m Outdoor
TA-260PLUS 160m Indoor 80m Outdoor
TA-330PLUS 200m Indoor 100m Outdoor

Interruption period
Selectable between 50, 100, 200, 350 and 500 msec.

Power supply
10.5 - 30V DC

Current consumption
(transmitter + receiver)
50mA (max. )

Alarm period
2 sec. (± 1) nominal

Alarm output
Form C relay 28V DC 0.2A max.

Tamper switch
N. C. Opens when cover is removed (Receiver only)

Operating temperature
-25° C to +55° C

Environmental humidity
95% max.

Alignment angle
± 90° Horizontal, ± 10° Vertical

Mounting
Wall and pole mounting

Weight (transmitter+receiver)
1250g

Dimensions (H x W x D)
196mm x 78mm x 83mm

Weatherproof
IP54
