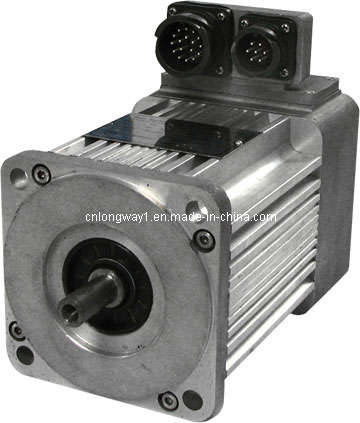

Permanent Magnetic Brushless Servo Motor

Prod Model:	110
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power Tools
Certification:	CE
Brand:	Longway

Product Description

DC/AC SERVO MOTOR
1) High quality motor, CE and RoHS approved
2) We can develop customer design version...
3) specially for all kinds of precise machine
4) good after-sell service
5) USA tech.

BL/BM Series brushless servo motors provide excellent performance and smooth operation, at a lower cost.
- Rated torque ranging from 0.15N-m (1.3Lb-In) to 430N-m(3, 800 Lb-In);
- Speeds up to 8000 rpm meet most speed applications;
- Optimized rotor design with high energy NdFeB magnets provides high power density, low cogging performance;
- Multiple high density winding designs cover full range of global voltage capacity;
- Extra insulated stator for high voltage and current spike protection;
- 9 standard frame sizes and multiple stacks to choose;
- Low and medium inertia types for different application requirements;
- Choices of terminations, feedback devices and holding brakes to meet different system requirements;
- Selection of industry standard enclosures with NEMA and Metric mounting options;
- Rugged aluminum housings with optimized thermal path, ensure low operating temperatures
- NTC or PTC thermistor for temperature feedback;
- IP65(standard) or IP67(option) sealing for use in harsh environments;
- We provide non-standard custom motors for your special requirements.

TYPE	RATING POWER	RATING TORGUE TN	RATING SPEED NN	RATING CURRENT IN	ROTOR INERTIA J	MECHANICAL TIME CONSTANT TM	ELECTRICL TIME CONSTANT TE
	KW	NM	RPM	A	KGM2	MS	MS
110SNMA2 I	0.418	2	2000	2.0	0.246×10-3	11.1	5
110SNMA4 I	0.837	4	2000	3.3	0.42×10-3	9.45	5.8
110SNMA4 II	1.256	4	3000	5.0	0.488×10-3	1.0	5.67
110SNMA6 I	1.256	6	2000	5.0	0.718×10-3	0.8	6.14
110SNMA6 II	1.844	6	3000	7.0	0.718×10-3	0.85	6.1
