Pertinax Sheets/Phenolic Laminate Bakelite From China

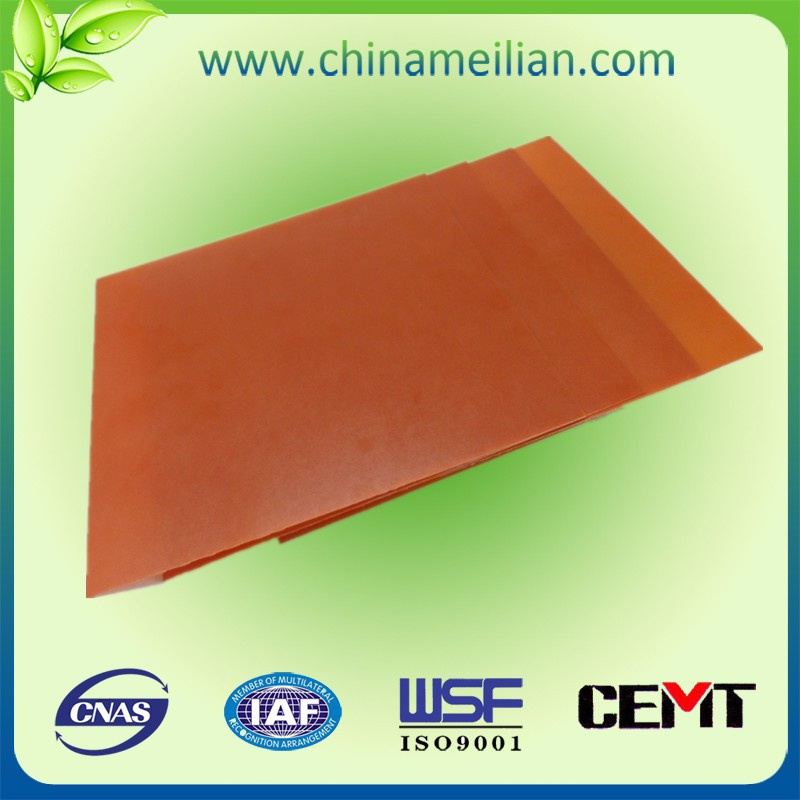

Name: Pertinax Sheets/Phenolic Laminate Bakelite From China
Brand: all-electronics-online.com
SKU: 743365345
Availability: InStock
Rating: 4.8 (104 reviews)

Price:	US $ 1-8kg
Trade Terms:	FOB,CFR,CIF
Min Order:	1kg
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MJ-3025
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Density:	More Than 1.7g/cm3
Size:	480X980mm
Delivery:	7-10 Working Days
Appliction:	for Motor & Generator
Samples:	Free Samples Are Welcome
Formation Methods:	High Temperature and High Pressure
Tensile Strength:	More Than120 MPa
Customizable:	Yes
MOQ:	1 Piece
Application:	Generator
Type:	Insulation Sheet
Chemistry:	Hybrid Insulation
Thermal Rating:	E 120
Maximum Voltage:	>100KV
Brand:	Mj
Material:	Phenolic Cotton Cloth

Product Description

Feature:
Excellent mechanical property
Heat resistance property
Excelletn magnetic permeability
Energy-saving & Environmental protection

Application:
Motor and generator groove strip/slot wedge
Reduce the motor loss, temperature rising, noise and etc
Improve the motor efficiency
Ideal energy-saving products

Basic information
Product name	3025 Phenolic Cotton Cloth Laminated Sheet
Brand	MJ-3025
Material	Cotton cloth with phenolic resin
Grade	E
Technical Performance
Nominal thickness mm	Tolerance mm
1	±0.15
1.2	±0.18
1.5	±0.18
1.8	±0.23
2	±0.23
2.5	±0.33
3	±0.33
4	±0.38
4.5	±0.38
5	±0.48
5.5	±0.48
6	±0.58
6.5	±0.58
7	±0.68
8	±0.68
9	±0.80
10	±0.80
12	±1.00
14	±1.00
16	±1.30
20	±1.30
25	±1.50
30	±1.50
35	±2.00
40	±2.00
45	±2.80
50	±2.80
Water absorption	≤ 2.50%
Flexural strength perpendicular to the layer direction	≥ 80 Mpa
Impact strength parallel to the layer direction ( Cantilever beam method )	≥ 8.8 kJ/m2
Bonding strength At room temperature Being humidified for 48h at 50 c	≥8010N ≥7120 N

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
