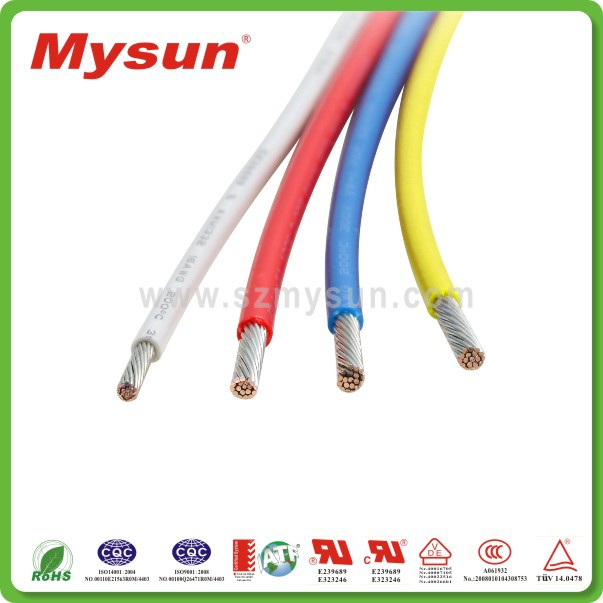

PFA Wire UL10362 Nickel Plated Copper Teflon Wire

Name: PFA Wire UL10362 Nickel Plated Copper Teflon Wire
Brand: all-electronics-online.com
SKU: 830235045
Availability: InStock
Rating: 5 (138 reviews)

Price:	US $ 0.065-0.856/Meter
Min Order:	6100/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL10362
Rated Voltage:	600V
Rated Temp:	250c
Color:	White, Black, Red, Brown, Yellow, Blue etc
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	Teflon
Certification:	RoHS
Application:	Internal Wire
Brand:	Mysun

Product Description

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
30	7/0.10	0.30	0.30	0.90	361	610/2000
28	7/0.12	0.36		0.96	227
26	7/0.16	0.48		1.08	143
24	7/0.20	0.60		1.20	89.3
22	19/0.15	0.75		1.35	56.4	305/1000
20	19/0.185	0.93		1.53	35.2
18	19/0.235	1.17		1.77	22.2
16	19/0.30	1.50	0.35	2.20	14
14	19/0.37	1.85	0.35	2.55	8.78
12	19/0.47	2.35	0.40	3.15	5.53
10	37/0.43	3.00	0.40	3.80	3.476
8	37/0.54	3.78	0.80	5.38	2.16	customized
7	37/0.60	4.20		5.80	1.716
6	37/0.68	4.76		6.36	1.361
5	37/0.76	5.32		6.92	1.079
4	37/0.86	6.02		7.62	0.8859
3	7/2.21	6.63		8.23	0.6788
2	7/2.48	7.44		9.04	0.5384
1	7/2.78	8.34	1.20	10.74	0.4268
0	7/3.20	9.60		12.00	0.3367
2/0	7/3.57	10.71		13.11	0.267
3/0	7/3.94	11.82		14.22	0.2119
4/0	7/4.42	13.26		15.66	0.168

Service
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
