Pfim RCCB

Prod Model:	PFIM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competitive Prices:	OEM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Poles Number:	3
Certification:	CCC

Product Description

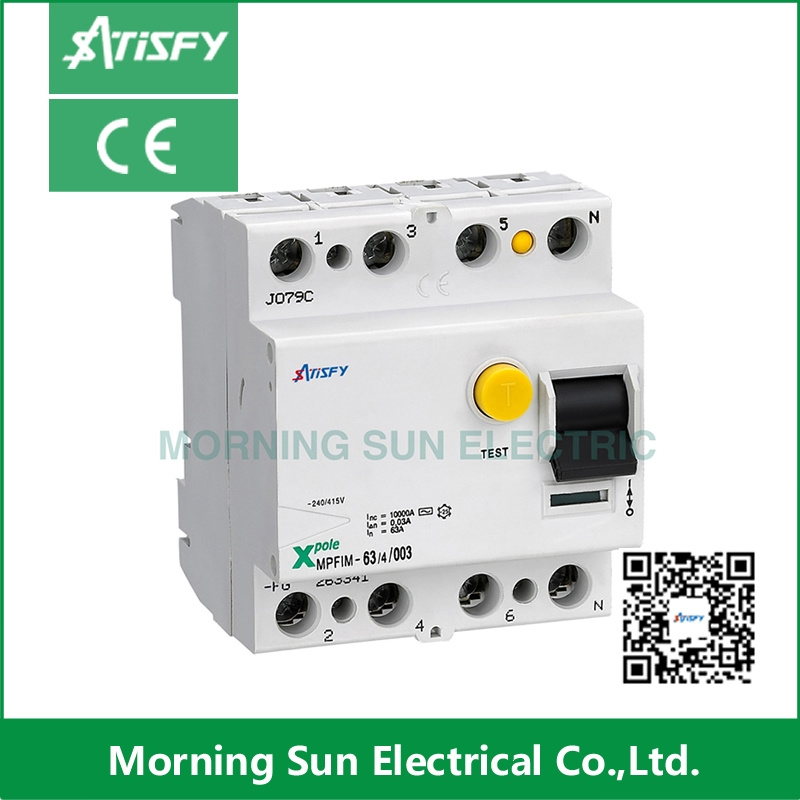

Xpole PFIM Residual Current Circuit Breaker RCCB

Applications

PFIM series Residual current breaker (without over-current protection) is suitable for the line of AC 50/60Hz, voltage 240V(2pole)/415V(4pole), rated current up to 63A. When there is human electricity shock or if the leakage current of the line exceeds the prescribed value, it will cut off the power rapidly to protect human safety and prevent the accident due to the current leakage. It can be used as infrequent changeover of the line in normal situation. It is applicable to industrial site, commercial site, tall building and civil house. It complies with standard of IEC/EN61008.1 and GB16916.1.

Standards		IEC / EN 61008
Tripping time(Instantaneous)		Type G 10 ms delay
		Type S 40 ms delay-with selective disconnecting function
Rated voltage		230/400V, 50/60Hz
Rated currents In		16, 25, 40, 63, 80A
Rated tripping current		30, 100, 300, 500mA
Rated non-tripping current		0.5In
Sensitivity		Type A and type AC
Rated short circuit strength Inc		10kA
Max. back-up fuse short circuit		In=25-63A 63A gL In=80A 80A gL
Rated breaking capacity Im or Rated fault breaking capacity Im		In=25-40A 500A In=63A 630A In=80A 800A
Endurance	electrical life	> 4000 operating cycles
	mechnical life	> 20000 operating cycles
