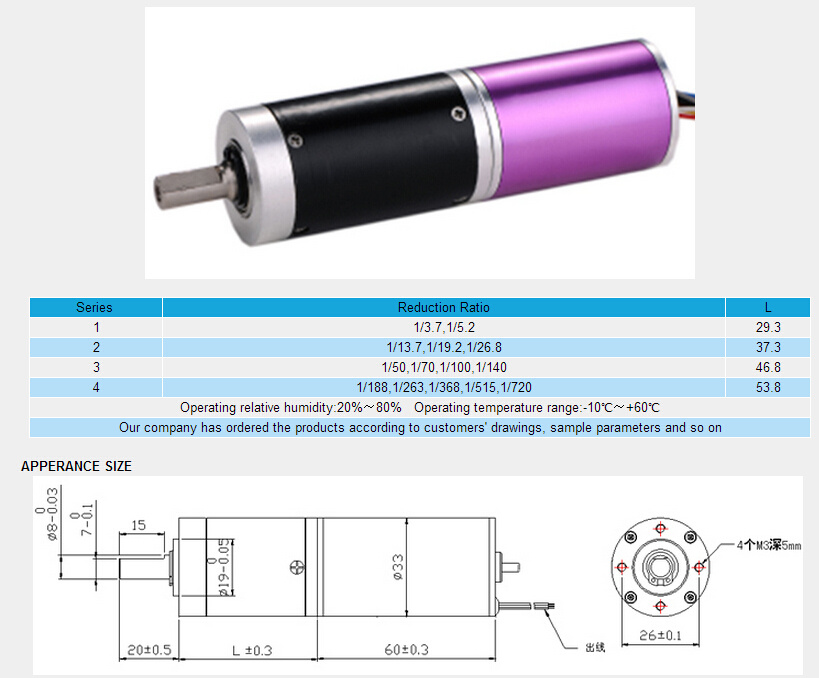

Pg33k40-33bl60-2440 Brushless Geared Motor

Name: Pg33k40-33bl60-2440 Brushless Geared Motor
Brand: all-electronics-online.com
SKU: 754547985
Availability: InStock
Rating: 4.8 (72 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	PG33K40-33BL60-2440
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor Type:	Carbon-Brush Motors
Output:	Approx 0~2000W
Output Shaft:	8mm
Usage:	Drill & Screw Driver
Construction:	Permanent Magnet
Place Of Origin:	Hangzhou
Gearing Arrangement:	Planetary
Packaging Requirement:	Customized
Structure And Working Principle:	Brush
Operating Speed:	Constant Speed
Application:	Power Tools
Excitation Mode:	Compound
Brand:	Lectstyle

Product Description

DC MOTOR PARAMETER

MODEL

VOLTAGE

NO LOAD

AT MAXIMUM EFFICENCY

OTHER

OPERATINGRANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

OUTPUT

Sensor

Number of pole pairs

Number of phases

r/min

mN.m

g.cm

Feature

FQ-BL3360-2440

DC 18~28V

24VDC

4000

0.15

2800

0.3

194

5.6

Switch is locked

Geared Motor PARAMETER

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICENCY					Max momentary tolerance torque
	OPERATINGRANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	Max momentary tolerance torque
	OPERATINGRANGE	NOMINAL	r/min	A	r/min	A	N.m	kg.cm	W	N.m	kg.cm
PG33K40-1/3.7	DC 18~28V	24VDC	1081	0.15	757	0.30	0.06	0.61	4.74	0.18	1.83
PG33K40-1/5.2			769		538		0.08	0.86	4.74	0.25	2.57
PG33K40-1/13.7			292		204		0.20	1.99	4.18	0.59	5.98
PG33K40-1/19			211		147		0.27	2.76	4.18	0.81	8.29
PG33K40-1/27			148		104		0.38	3.93	4.18	1.15	11.78
PG33K40-1/50			80		56		0.62	6.30	3.62	1.85	19
PG33K40-1/70			57		40		0.86	8.82	3.62	2.59	26
PG33K40-1/100			40		28		1.24	12.6	3.62	3.71	38
PG33K40-1/140			29		20		1.73	17.6	3.62	5.19	53
PG33K40-1/188			21		15		1.96	20.0	3.06	5.89	60
PG33K40-1/263			15		11		2.75	28.0	3.06	8.25	84
PG33K40-1/368			11		8		3.85	39.2	3.06	11.54	118
PG33K40-1/515			8		5		5.38	55	3.06	12.00	122
PG33K40-1/720			6		4		7.52	77	3.06	12.00	122

Our full production process strictly adhered to the ISO9001 quality control system, our higher quality , advanced equipment and technology ensure a guarantee in leakage-proof , retention and duration !

Your OEM orders are also warmly welcomed, it is our commitment to satisfy your requirement, please turst that we will be your reliable business partner for our good reputation,good quality and competitive price !
