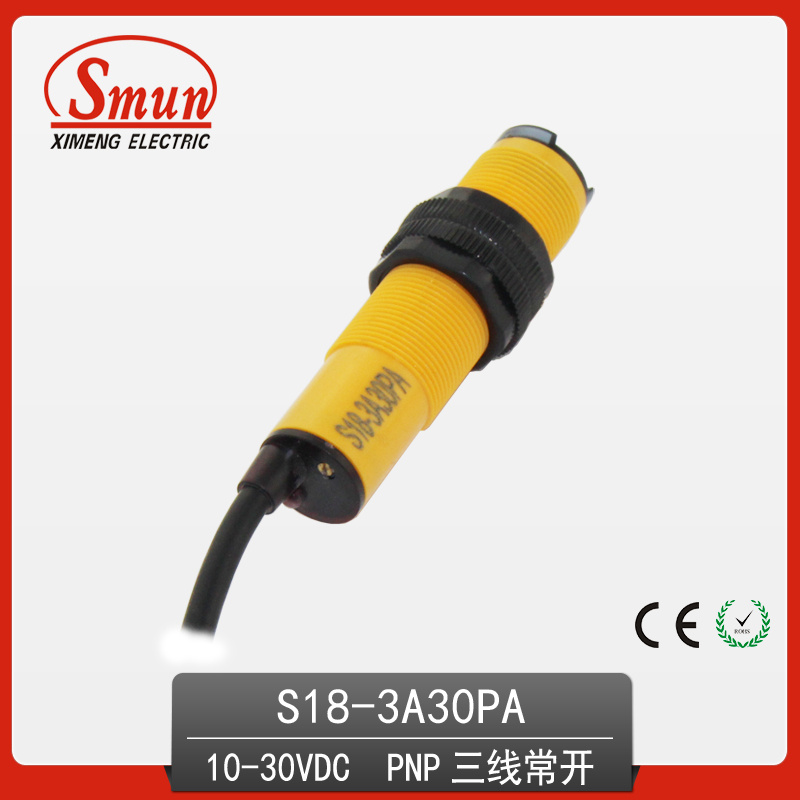

Photoelectric Switch (S18-3A-30PA) Photoelectric Sensor 10-30VDC Diffused Reflection Type Normal Open 30cm Detection Distance

Name: Photoelectric Switch (S18-3A-30PA) Photoelectric Sensor 10-30VDC Diffused Reflection Type Normal Open 30cm Detection Distance
Brand: all-electronics-online.com
SKU: 755117165
Availability: InStock
Rating: 4.6 (141 reviews)

Price:	US $ 3.8-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	S18-3A-30PA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Voltage:	10-30VDC
Outward:	Cylinder
Basic Form:	Infrared Ray
Detection Distance:	30cm
Operating Temperature:	-25~+55 Degree C
Output Form:	PNP
Output State:	Normally Open
Output Current:	200mA(Max)
Length:	70mm
Wire Length:	1500mm

Product Description

Principle of photoelectric switch

The principle of photoswitch :the projector will judge and react on the basis of light beam from the projector which is interdicted by object or emitted partly.

Diffuse type

Diffuse refelection type pgotoelectric switch integrates the transmitter and the receiver. Light reflected by the pgotoelectric switch is reflected back to the receiver by the detected object.

Retrorefilective type

Retroreflective type photoelectric switch also integrates the transmitter and the receiver .
Its difference from other models is that reflector is used to reflect light to the photoelectric switch .
Though the object between the photoelectric switch and reflector can reflect the light,it's much less efficient than the refletor so as to cut down reflected light

Basic form	infrared ray photoelectric switch
Outward	Cylinder
Working voltage	10-30VDC
Detection way	diffused reflection

Detection distance	30cm
Output form	PNP transistor out put
Output state	Normally close (light sheltering NO)
