Nanjing Lealite Industry Co., Ltd. >> Photoswitch Photosensor Twist-Lock Plug-in Controls, Photocontroller

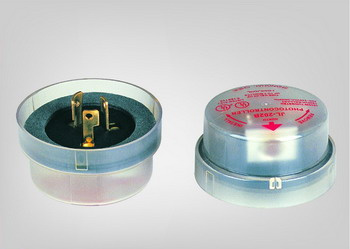

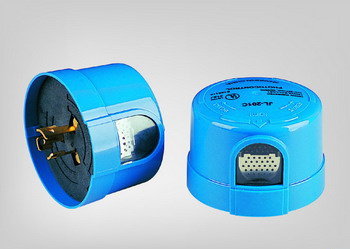

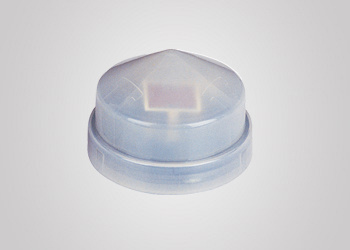

Photoswitch Photosensor Twist-Lock Plug-in Controls, Photocontroller

Photoswitch Photosensor Twist-Lock Plug-in Controls, Photocontroller
Price: US $ 2/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P
Prod Model: LD201
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power: 120V/220V 230V240V
Principle: Pyroelectric
Wires: NPN (',Three-Wires)
Standard: Standard
Certification: CE
Type: Photo Controller
Application: Outdoor Lighting Street Lighting Garden Lighting
Size: 201

Product Description

Easy-to-maintain Twist-lock (ANSI C136.10)
- IP65 protection while installed
- Easy-to-test Instant switching-over
- Multi-volts available
- Surge Arrester built-in
- UL & C-UL listed.

- SPST-NO
- Electromagnetic AC relay switching
- UV stabilized Polycarbonate cover & clear window
- High impact Polybutylene terephthalate Base
- 1" CdS photocell for standard; 1/2" CdS photocell with heat sink available
- 110J/3500A MOV for standard; 235J & 460J MOV available

On-Off Levels: 6Lx On(Dusk); 50Lx Off(Dawn);

While 220V: 3Lx On, 30Lx Off(JL-201C)
Ambient Temp.: -40ºC ~ +70ºC
Related Humidity: 96%
Power consumption: 1.5VA Max.
Electrical Life: 5000 cycles





LEALITE address lighting needs in a full range of environments-indoors (shops offices hotels factories) as well as outdoors (public places residential areas and sports areas). We also meet people needs on the road by providing safe lighting in traffic (street lighting)

LEALITE lamps offer more light per watt, longer life and feature a compact point source similar to incandescent, allowing good optical control. Main light bulbs include high pressure sodium lamp, metal halide lamp, mercury lamp. All lamps have CE certificated standard accessories: Ballast/ starter /fixed capacitor.

LEALITE steel poles are manufactured of Q235/Q345/A36 grade steel maintain a minimum wall thickness of 120 inch; And are circumferentially welded to the base. Aanchor bolts per ASTM A576nuts washers and threaded portion of bolts are hot DIP galvanized. Poles are finished in a premium polyester powder coat for superior weather-ability characteristics.

LEALITE roadway lights is ideal for roadways parking areas/ residential neighborhoods and bridge. Structures suitable for 2G vibration conditions. We deliver a range of innovative and reliable indoor and outdoor lighting and controls solutions specially designed to maximize performance energy efficiency and cost savings. The lighting business serves customers in the commercial industrial retail institutional residential utility and other markets.

LEALITE will support you fruitful products and satisfied service. Free samples can be sent for your evaluation
