Twist-Lock Controller UL Certified Sensor

Name: Twist-Lock Controller UL Certified Sensor
Brand: all-electronics-online.com
SKU: 833278065
Availability: InStock
Rating: 4.4 (51 reviews)

Price:	Negotiable/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	JL
Power:	120V/220V 230V240V
Principle:	Pyroelectric
Wires:	NPN (',Three-Wires)
Standard:	Standard
Certification:	CE
Type:	Photo Controller
Application:	Outdoor Lighting Street Lighting Garden Lighting
Size:	201

Product Description

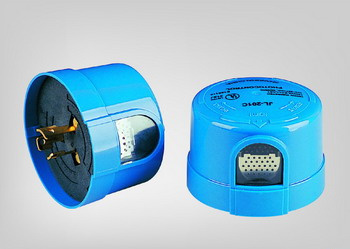

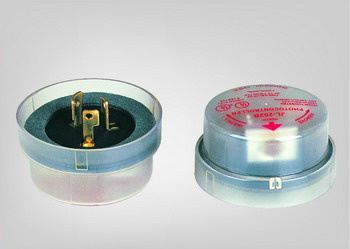

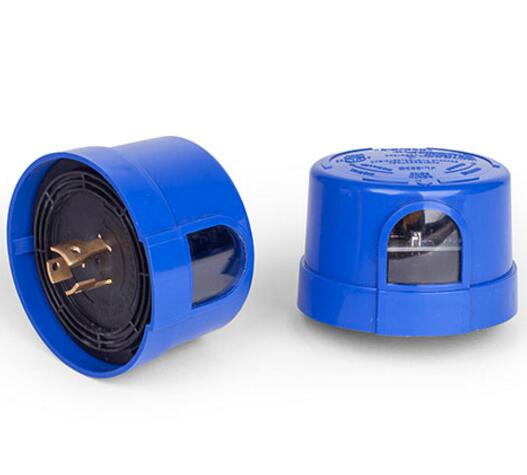

The photocontroller JL-202 series is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.
It is designed on the basis of thermal - bimetallic structure that provides time delay over 30 seconds to avoid mis-operation due to spotlight or lightning during the night time.
Temperature compensation system provides consistent performance regardless to the ambient temperature.
JL-202 provides three twist-lock terminals meeting the requirements of ANSI C136.10-1996 and the Standard for Plug-In, Locking Type Photocontrols for Use with Area Lighting UL773, 4 th Edition, dated Jan.19 th , 1995. JL-202 series has been listed by UL Inc for United States and Canada.

Easy-to-maintain Twist-lock (ANSI C136.10)
- IP65 protection while installed
- Easy-to-test Instant switching-over
- Multi-volts available
- Surge Arrester built-in
- UL & C-UL listed.

- SPST-NO
- Electromagnetic AC relay switching
- UV stabilized Polycarbonate cover & clear window
- High impact Polybutylene terephthalate Base
- 1" CdS photocell for standard; 1/2" CdS photocell with heat sink available
- 110J/3500A MOV for standard; 235J & 460J MOV available

On-Off Levels: 6Lx On(Dusk); 50Lx Off(Dawn);

While 220V: 3Lx On, 30Lx Off(JL-201C)
Ambient Temp.: -40ºC ~ +70ºC
Related Humidity: 96%
Power consumption: 1.5VA Max.
Electrical Life: 5000 cycles

LEALITE address lighting needs in a full range of environments-indoors (shops offices hotels factories) as well as outdoors (public places residential areas and sports areas). We also meet people needs on the road by providing safe lighting in traffic (street lighting)

LEALITE lamps offer more light per watt, longer life and feature a compact point source similar to incandescent, allowing good optical control. Main light bulbs include high pressure sodium lamp, metal halide lamp, mercury lamp. All lamps have CE certificated standard accessories: Ballast/ starter /fixed capacitor.

LEALITE steel poles are manufactured of Q235/Q345/A36 grade steel maintain a minimum wall thickness of 120 inch; And are circumferentially welded to the base. Aanchor bolts per ASTM A576nuts washers and threaded portion of bolts are hot DIP galvanized. Poles are finished in a premium polyester powder coat for superior weather-ability characteristics.

LEALITE roadway lights is ideal for roadways parking areas/ residential neighborhoods and bridge. Structures suitable for 2G vibration conditions. We deliver a range of innovative and reliable indoor and outdoor lighting and controls solutions specially designed to maximize performance energy efficiency and cost savings. The lighting business serves customers in the commercial industrial retail institutional residential utility and other markets.

LEALITE will support you fruitful products and satisfied service. Free samples can be sent for your evaluation
