| Prod Model: |
TDZ500D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure Range: |
5kpa......10000kpa |
| Overpressure: |
1.5 F.S |
| Static Pressure: |
3/5/10 Times F.S |
| Stability: |
0.25%F.S Max. 0.5%F.S |
| Working Tempt.: |
-40~85 Degrees Celsius |
| Tempt. Compensation: |
-10~70 Degrees Celsius |
| Media: |
Compatible with 1Cr18Ni9Ti |
| Transmission Type: |
2-Wire, 3-Wire, as Required |
| Power Supply: |
10~30V DC, 8~30V DC/AC, 11~30V DC/AC, as Required |
| Pressure Type: |
Differential Pressure |
Product Description

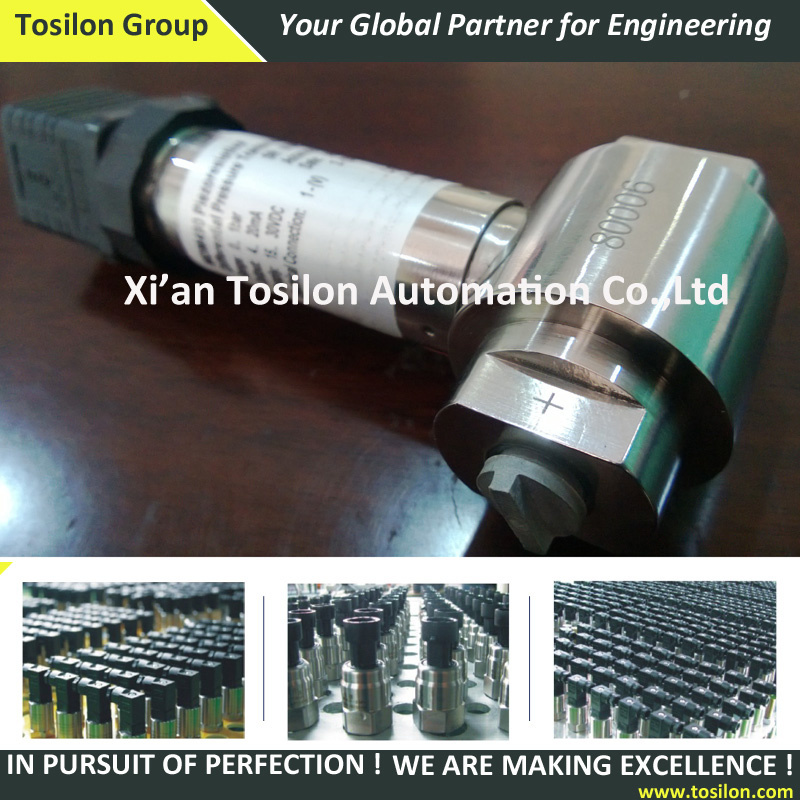

Tosilon Piezo Resistive Gas Differential Pressure Transmitter 4-20mA (Ex Approved)Design and Manufacturing according to ATEX, CE StandardIntroduction TDZ500D differential pressure transducer is produced by putting OEM differential pressure sensor into full-welded housing with G1/4 female for both positive and negative cavities. The transducer could be mounted into measuring tube through G1/4 female pressure port or leading tube. It is cable connection. The transducer could be widely used in industrial process control, flow measure, medical device, air dynamical measure and liquid pressure instrument or pneumatic plant, etc.Features· Full stainless steel construction;
· Thread connection optional;
· Electric connection optional;
· Constant current supply;
· Diffused Silicon Type;
· Multiple alternative for Pressure Port;
· CE approved

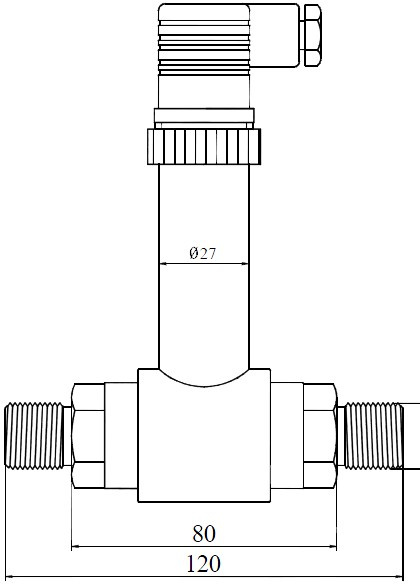

Outline Structure
General Technical Data (For details, please contact Tosilon)Pressure Range Overpressure
5kPa......10000kPa 1.5% F.S
Static Pressure Accuracy
3/5/10 times F.S ±0.25%F.S, ±0.5%F.S
Stability Working Temp.
0.25%F.S Max. 0.5%F.S -40oC~85oC
Temp. Compensation Media
-10oC~70oC Compatible with 1Cr18Ni9Ti
Transmission Type Output
2-wire 3-wire 4-20mA DC 0~5V DC 0~10V DC
Power Supply
10~30V DC 8~30V DC/AC 11~30V DC/AC
Load Resistance Insulation
(U-10)/0.02(Ω) >100kΩ >100M Ω@50V
Electrical Connection
Cable Connection, Hirschmann, Packard
Pressure Port Pressure Type
G1/4, NPT1/4 Differential Pressure
Response Time Qualification10ms CE, Explosion-proof, Flame-proof For more information, please contact Tosilon
