Piezoresisitive Stable Pressure Transmitter Mpm489

Name: Piezoresisitive Stable Pressure Transmitter Mpm489
Brand: all-electronics-online.com
SKU: 741140425
Availability: InStock
Rating: 4.3 (71 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM489
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range:	-0.1...0~0.01...100MPa
Accuracy:	0.5%Fs
Output Signal:	4~20madc
Pressure Type:	Gauge,Sealed Gauge,Absolute
Protection:	IP65
Compensated Temperature:	0~50c
Operation Temperature:	-30~80c
Storage Temperature:	-40~120
Certificates:	RoHS,CE
Housing:	Stainless Steel

Product Description

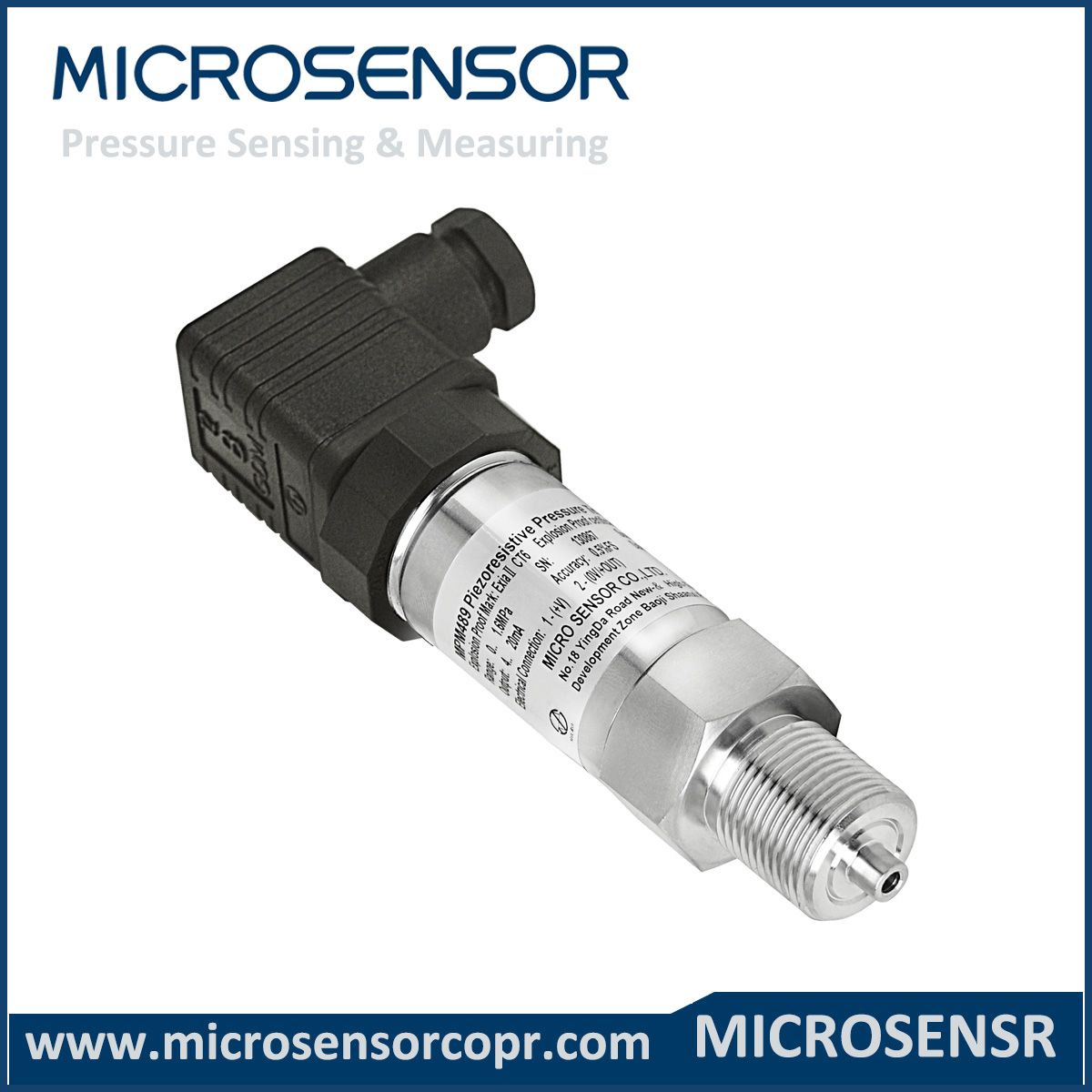

Piezoresisitive Stable Pressure Transmitter Mpm489
Features:
1.Reliable performance;
2.Easy application;
3.IP65;
4.Short protection;
5.Reversed-polarity protection;

Certificates:
1.CE;
2.RoHS;
3.Ship-use;
4.Exd II CT6

Application:
1.Chemical industry;
2.Power;
3.Hydrology;
4.Petroleum;
5.Geology

Options:
1.Sealed gauge, absolute,gauge;
2.4~20mADC,1~5VDC,0~5VDC output signal;
3.Intrinsic safe version;
4.Flush diaphragm available;

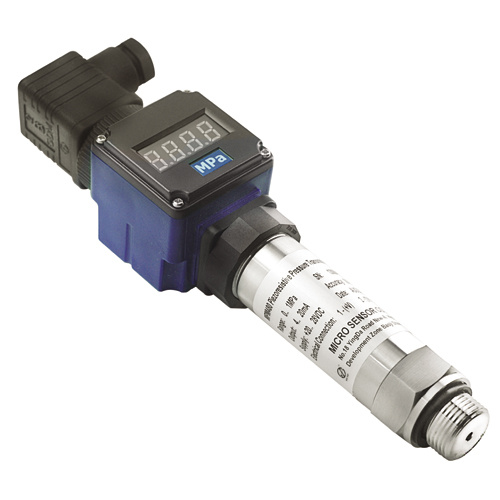

5.LCD, LED digital indicator

Description:
MPM489 pressure transmitter is piezoresistive with long term stability as well as good performance. It is designed with piezoresistive sensing element and high quality specified PDB, built in stainless steel housing. Approved CE and RoHS, it is an ideal product to work in most dangerous and rugged situations.

Specifications:
·Pressure range:   -0.10~0.01100MPa
·Overpressure:    1.5 times FS or 110MPa (min. value is valid)
·Pressure type:    gauge/ absolute / sealed gauge
·Process connection:  M20×1.5 male waterline seal (or on your demand)
·Accuracy:    0.5%FS
·Long term stability: max.  ±0.3%FS/year
·Zero thermal drift:  0.1%FS/ºC(≤100kPa);0.05%FS/ºC(>100kPa)
·Span thermal drift:  0.1%FS/ºC(≤100kPa);0.05%FS/ºC(<100kPa)
·Compensation temp.:   0~50ºC
·Application temp.:     -30~80ºC, intrinsic safe version: -10~60ºC ,  EXD: -20~60ºC
·Storage temp.:        -40~120ºC
·Power supply:        11~28VDC,intrinsic safe version supplied by safe barrier
                      EXD: 8~28VDC
·Output signal:       4~20mADC(2-wire),           0/1~5VDC(3-wire)
·Load:               ≤(U-10)/0.02Ω(2-wire),      ≥10k(3-wire)
·Housing protection:   IP65
·Electric connection:   DIN43650 plug

Order guide:

MPM489

Pressure Transmitter

Range

Pressure range: -0.10~0.01100MPa

[0~X]kPa or MPa

X:the actual measured pressure

Code

Output signal

4~20mADC

1~5VDC

0~5VDC

Code

Construction material

Diaphragm

Pressure port

Housing

SS 316L

Tantalum

Hastelloy

Code

Others

Plug connection

Cable connection

PC1

Flush diaphragm, M20×1.5 male

PC3

Flush diaphragm, G1/2 male

3 1/2 digits LCD digital indicator

3 1/2 digits LED digital indicator

Intrinsic safe version: ExiaIICT6

Ship-use

ExdIICT6

M20×1.5 male, face type seal

G1/2 male (used for flush diaphragm type)

M20×1.5 male, waterline seal

Gauge

Sealed gauge

Absolute

MPM489 [0~100kPa] E 22 B1C5G the whole spec

Micro Sensor Co., Ltd, the leading manufacturer of piezo-resistive pressure sensors and transmitters in China, was founded by Sino-US joint venture in 1993. We are providing pressure sensing & measuring solutions to customers all over the world.

With Digital Wide-Temperature Compensation, Non-linearity Correction and Data-Collection by Bus Operation, we supply users OEM pressure sensors, pressure transmitters, level transmitters, measuring and controlling instruments, which have high quality and reliable performance in the local on-site environment.

Based on more than 20 years production experiences, Micro Sensor now have manufacturing capacity of 1.2 million pieces pressure sensors and 400 thousand pieces transmitters in one year. And we are also capable to satisfy the customized specification and designs according to clients' Specified requirements.

Quality is the life of company. Micro Sensor executes I S O 9 0 0 1 International Management System strictly to make sure every procedure qualified in our production. Furthermore, the main products for pressure sensors and transmitters, are also certificated by C E, R o H S, C B, U L and A T E X respectively for different global markets.

Micro Sensor now does business with customers more than 70 countries. More and more global friends know Micro Sensor and make win-win cooperation with us. Wherever you are, whenever you are, find Micro Sensor for any pressure sensing & measuring question. We are looking forward to supporting you with our best services!
