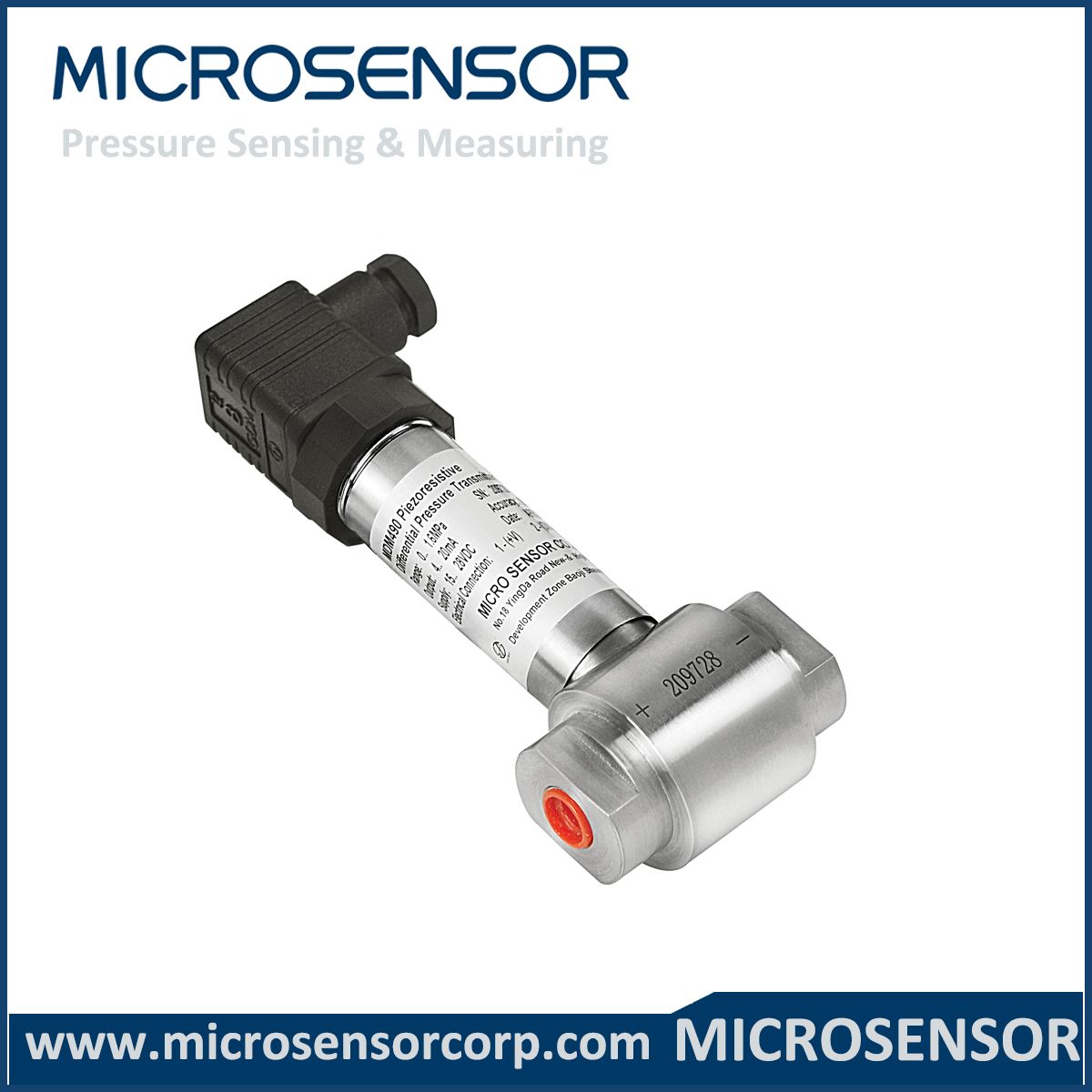

Piezoresistive Differential Pressure Transmitter (MDM490)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
MDM490 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Word: |
Piezoresistive |
| Wiring: |
2 Wire |
| Output Signal: |
4~20madc |
| Certificates: |
CE,RoHS |
| Accuracy: |
0.25%Fs(Typ) |
| Measurement Range: |
0~3.5MPa |
| Housing: |
Stainless Steel |
| Compensated Temperature: |
0~50c |
| Operation Temperature: |
-10~80c |
| Storage Temperature: |
-40~120c |
| Accuracy Grade: |
0.25%Fs(Typ.) |
Product Description
Piezoresistive Differential Pressure Transmitter MDM490
Features:
1.Full-sealed construction;
2.IP65;
3.Laser-welded;
4.Compact size;
5.Temperature Compensated;
6.Zero and span outside adjustable;
7.Piezoresistive differential pressure sensor;
Certificates:
1.CE;
2.RoHS;
3.Explosion-proof;
4.ISO
Applications:
1.Petroleum;
2.Chemical industry;
3.Power;
4.Hydrology
5.For liquids and gases
Description:
MDM490 Piezoresistive Differential Pressure Transmitter has compact size, light weight, easily installation and other features.It can be widely used for differential pressure measurement of petroleum, chemi-industry, power station and hydrology, etc.
Specifications:| Range code | 0A | 02 | 03 | 07 | 08 | 09 | 10 | 12 | 13 |
| Unit | kPa | MPa |
| Measure range | 0~35 | 0~70 | 0~100 | 0~200 | 0~350 | 0~700 | 0~1 | 0~2 | 0~3.5 |
| +orvepressure | 70 | 150 | 200 | 400 | 700 | 1400 | 2.0 | 4.0 | 7.0 |
| -overpressure | 35 | 70 | 100 | 200 | 350 | 700 | 1.0 | 1.0 | 1.0 |
| Max.static pressure | ≤20MPa |
| | Min. | Typ. | Max. | Unit |
| Accuracy | 0~100kPa | | 0.25 | 0.5 | %FS |
| 200~3500kPa | | 0.25 | 0.5 |
| Zero Thermal error | 0~100kPa | | 0.75 | 1.25 | ±%FS, @25ºC |
| 200~3500kPa | | 0.5 | 0.75 |
| FS Thermal error | 0~100kPa | | 0.75 | 1.25 |
| 200~3500kPa | | 0.5 | 0.75 |
| Stability | ≤200kPa | 0.5 | %FS/year |
| ≤3500kPa | 0.2 |
| Static pressure effect | 0.05 | ±%FS, each 100kPa |
| Compensation temp. | 0~50 |
ºC
|
| Operation temp. | -10~80 |
| Storage temp. | -40~120 |
Outline Construction:
Order guide:| MDM490 | Piezoresistive Differential Pressure Transmitter |
| | | Code | Pressure range: kPa or MPa |
X[0~X]
kPa or MPa | Code | Pressure range
kPa | overpressurekPa | Code | Pressure
Range MPa | Overpressure MPa |
| + | - | + | - |
| 0A | 0~35 | 70 | 35 | 09 | 0~0.7 | 1.4 | 0.7 |
| 02 | 0~70 | 150 | 70 | 10 | 0~1.0 | 2.0 | 1.0 |
| 03 | 0~100 | 200 | 100 | 12 | 0~2.0 | 4.0 | 1.0 |
07
| 0~200 | 400 | 200 | 13 | 0~3.5 | 7.0 | 1.0 |
| 08 | 0~350 | 700 | 350 | | | | |
| | | | Code | Output signal |
| E | 4~20mADC |
| F | 1~5VDC |
| J | 0~5VDC |
| Q | 0~10mADC |
| U | 0~20mADC |
| V | 0~10VDC |
| | | | | Code | Construction material |
| | Diaphragm | Pressure port | Housing |
| | 22 | SS 316L | SS | SS |
| | 24 | SS 316L | SS 316L | SS 316L |
| | | | Code | Others |
| | C4 | G1/4 female |
| | B1 | Plug connection |
| | B2 | Cable connection Default length: 1.5m |
| | M3 | 31/2LCD digital indicator(only 4~20mADC) |
| | M4 | 31/2LED digital indicator (only 4~20mADC) |
| | i | Intrinsic safe version ExiaIICT6(>35kPa) /ExiaIIBT6Ga(<=35kPa) |
| | T | Ship-use |
| | | |
| MDM490 [0~100]kPa E 22 C4B2 the whole spec |
