Piezoresistive High Accurate Pressure Sensor Mpm281

Name: Piezoresistive High Accurate Pressure Sensor Mpm281
Brand: all-electronics-online.com
SKU: 681120771
Availability: InStock
Rating: 4.8 (30 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM281
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	Analog Sensor
Usage:	Processing Pressure Measurement
Theory:	Pizoresistive Sensor
Media Temperature:	(35±1)Celsius
Shock:	0.1g(M/S/S)Max
Humidity:	(50%±10%)Rh
Local Air Pressure:	(86~106)Kpa
Power Supply:	(1.5±0.0015)Madc
Pressure Range:	0~20kpa...35MPa
Pressure Type:	Sealed Gauge,Gauge,Absolute

Product Description

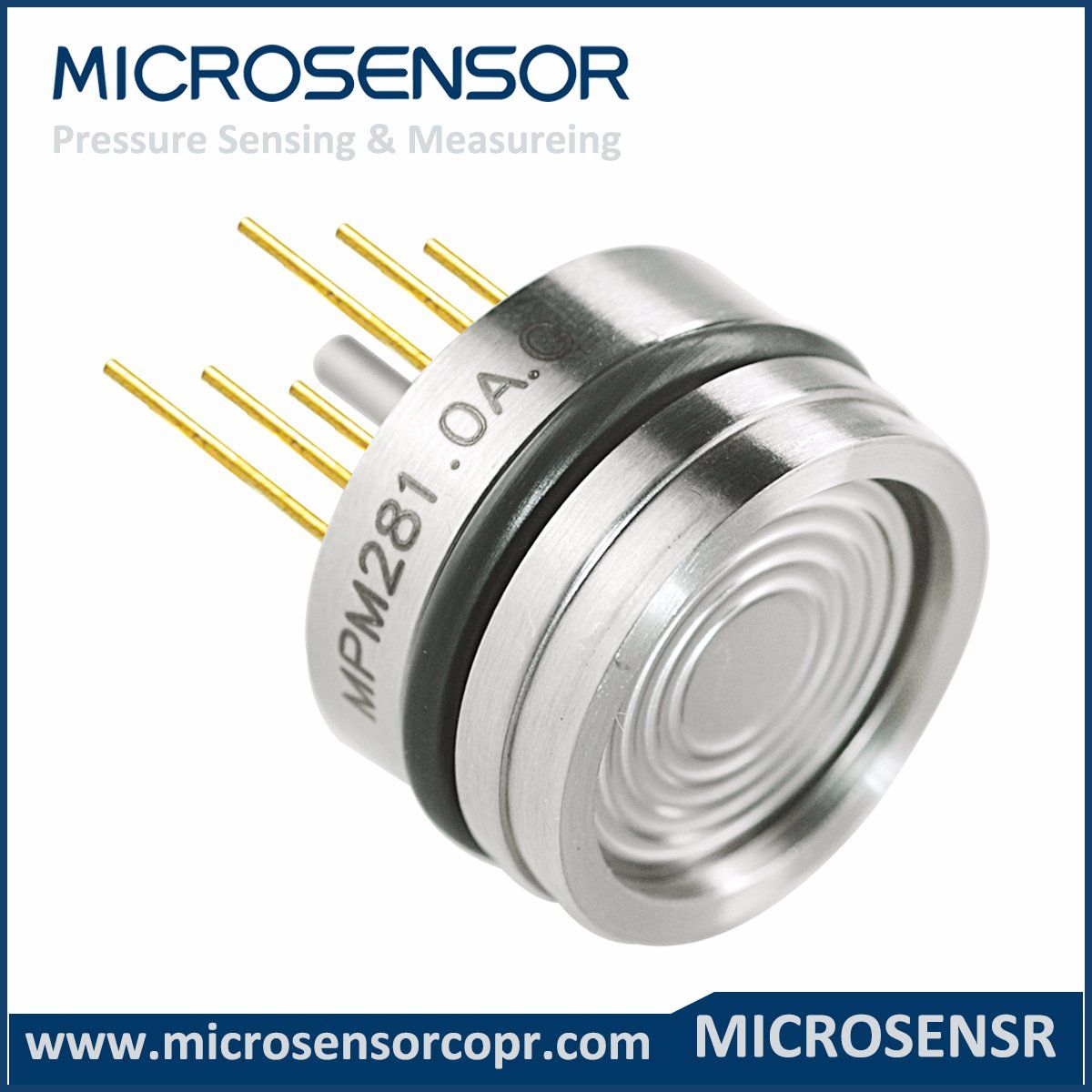

Piezoresistive High Accurate Pressure Sensor Mpm281

Features:
     1. High Accurate;
     2. Constant current/ constant voltage power supply;
     3. SS316L;
     4. Φ19mm diameter
   5. Power Supply: ≤2.0mA DC; ≤10V DC

Application:
    1.Level measurement;
    2.Aviation;
    3.Ocean;
    4.Liquid pressure system;
    5.Pressure meter;
    6.Industrial process control;
    7.Air conditioner

Options:
    1.Sealed gauge, gauge, absolute;
    2.Laser trimming type;
    3.Outer compensated resistor;
    4.O-ring type

Basic Specification:

Item*	Min.	Typ.	Max.	Units
Linearity		±0.2	±0.25	%FS,BFSL
Repeatability		±0.05	±0.075	%FS
Hysteresis		±0.05	±0.075	%FS
Zero output			±2	mV DC
FS output **	70			mV DC
Zero thermal error***		±0.75	±1.0	%FS,@35ºC
Span thermal error		±0.75	±1.0	%FS,@35ºC
Compensated temp. range	-10~80 0~70(7kPa,20 kPa,35 kPa)			ºC
Working temp. range	-40~125			ºC
Storage temp. range	-40~125			ºC
Stability error		±0.1	±0.2	%FS/year
testing at basic condition * for range code 0C, FS output ≥45mV ***for rang code 0C, Zero thermal error≤1.5%FS

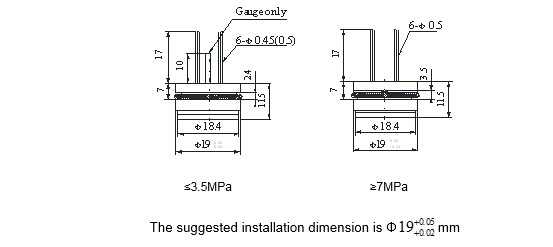

Outline Construction:

Electric Connection:

Order Guide:

MPM281

High Stable Piezoresistive OEM Pressure Sensor

Range code

Pressure range

Ref.

Range code

Pressure range

Ref.

0kPa~7kPa

0kPa~1000kPa

G.A

0kPa~20kPa

0MPa~2MPa

G.A

0kPa~35kPa

G.A

0MPa~3.5MPa

G.A.S

0kPa~70kPa

G.A

0MPa~7MPa

0kPa~100kPa

G.A

0MPa~10MPa

0kPa~200kPa

G.A

0MPa~20MPa

0kPa~350kPa

G.A

0MPa~35MPa

0kPa~700kPa

G.A

0MPa~70MPa

Code

Pressure type

Gauge

Absolute

Sealed gauge

Code

Pressure connection

O-ring

Code

Compensation

Laser trimming

Outer compensated resistor (providing resistor value)

Code

Electric connection

Kovar pin(default)

100mm silicon rubber flexible wires

Code

Special measurement

Gauge sensor to measure vacuum

MPM281 07 G 0 L 1 Y the whole spec
